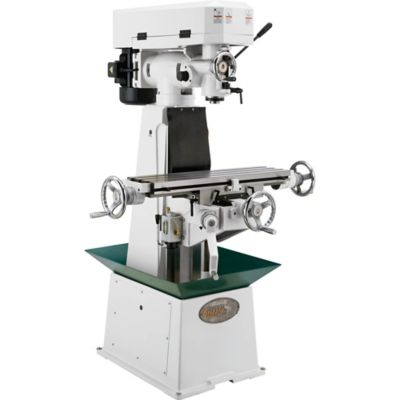

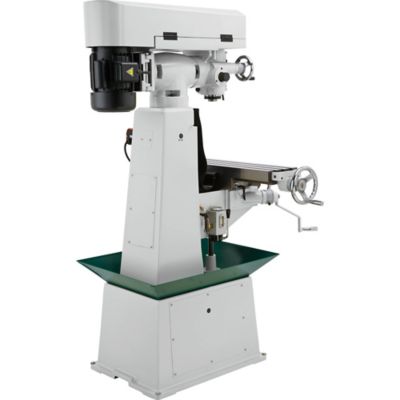

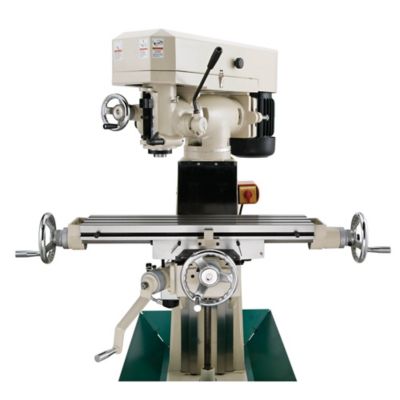

Grizzly G0731-8 in. x 30 in. 1-1/2 HP Vertical Mill, G0731
This 8 in. x 30 in. Vertical Milling Machine includes all the same features as its 6 in. x 26 in. little brother (G0728/G0729), but is constructed with a heavy, 1-piece casting for even greater rigidity and an extra 300 pounds of mass. It also accommodates up to a 14 in. swing and 20 in. between table and spindle. Features a cabinet designed to accept aftermarket coolant systems, making it readily upgradable. Available with or without longitudinal power feed.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Dovetail sliding ways for accuracy

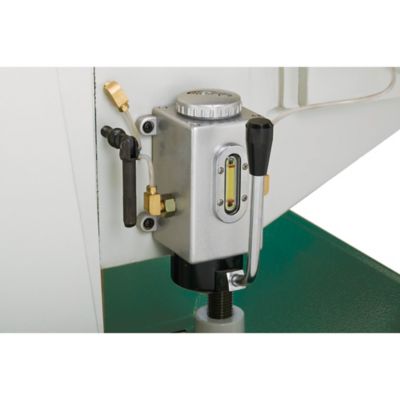

- 1-shot oiler lubrication system
- Catch tray allows for coolant system upgrade
- Large stroke handle
- Forward/reverse switch
- Rotating turret-style column
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 18 A |
| Chuck Type | Keyed |
| Cord Length | 6 ft. |
| Drilling Capacity | 1 in. |
| Drills Through | Multi-Purpose |
| Features | No Additional features |
| Horsepower | 1.5 hp |
| Maximum Chuck Size | 5/8 In. |
| Maximum Speed | 270 RPM |
| Minimum Speed | 270 RPM |
| Mounting Location | Freestanding |
| Number of Speeds | 9 |
| Portable or Stationary | Stationary |
| Product Height | 67 in. |
| Product Length | 40.5 in. |
| Product Weight | 935 lb. |
| Product Width | 42.75 in. |
| Spindle Travel Distance | 3 in. |
| Swing | 14 in. |
| Table Material | Cast iron |
| Variable Speed | Variable Speed |
| Voltage | 110 V |
| Warranty | 1 |
| Work Table Length | 30 in. |
| Work Table Width | 8 in. |
| Manufacturer Part Number | G0731 |
