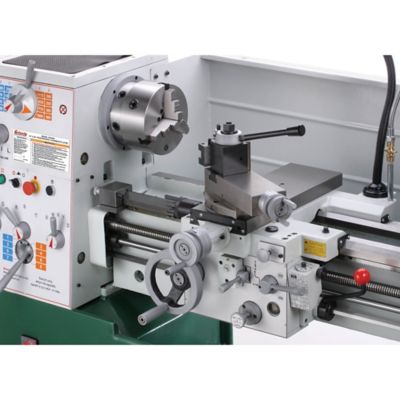

Grizzly G0509G-16 in. x 40 in. 3-Phase Gunsmithing Me, G0509G

3.33 Reviews

Item #

$13099.99

G0509G 16" x 40" 3-Phase Gunsmithing Metal Lathe The original Grizzly gunsmithing metal lathe. The G0509G 16" x 40" 3-Phase Gunsmithing Metal Lathe came to life after the founder of Grizzly was talking to his gunsmith.

Frustrated that there wasn't a lathe specifically for gunsmithing, he shared a "laundry" list of features he would want in his dream setup.

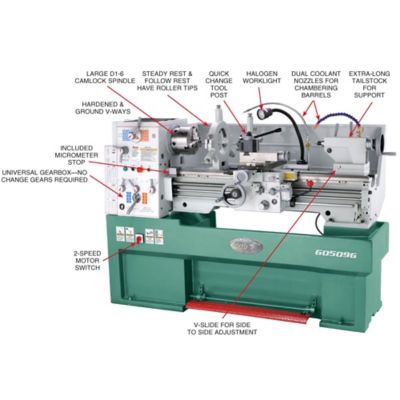

This dream list for the lathe included super high-precision spindle bearings with high-precision ground gears, two coolant nozzles for chambering, and a longer tailstock for barrel support.

The spider mount system has four screws that stabilize long shafting and rifle barrels through the outboard end of the spindle.

Supplied with a two-speed 4 HP/3HP motor, the 16-speed gearhead produces spindle speeds from 45-1800 RPM.

The tailstock lock system allows you to use a 1/2" torque wrench to clamp the tailstock in place at a pre-determined torque setting. This ensures consistent draw-down alignment every time.

  • Main motor: 4 HP/3HP, 220V, 3-phase, 2-speed, 17A/8.5A
  • Coolant motor 1/8 HP, 0.45A
  • Swing over bed: 16"
  • Distance between centers: 40"
  • Swing over saddle: 14-3/4"
  • Swing over cross slide: 10"
  • Spindle nose taper: MT#6 with MT#4 adapter
  • Spindle nose: D1-6 camlock
  • Spindle speeds: 16, 45-1800 RPM
  • Tailstock taper: MT#4
  • Tailstock quill travel: 4-3/4"
  • Cross slide travel: 8-1/2"
  • Compound travel: 5-1/2"
  • Range of threads (inches): 45, 2-72 TPI
  • Range of threads (metric): 39, 0.2-14 mm
  • Diametrical pitch range: 21, 8-44 DP
  • Modular pitch range: 18, 0.3-3.5 MP
  • Cuts left-handed threads
  • Socket for tailstock lock
  • Overall dimensions: 76-3/8" W x 33-7/16" D x 51-3/16" H
  • Approximate shipping weight: 3300 lbs.
