Grizzly 9 x 49in. Vertical Mill with Power Feed and DRO, G0796

4.9

(16 Reviews)

|

Item # 229402099

$12850.00
See Price at Checkout

Grizzly 9 x 49in. Vertical Mill with Power Feed and DRO, G0796

4.916 Reviews

Item # 229402099

Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
$12850.00
See Price at Checkout
or
or
financeCard Logo
$381/mo.†  for 36 months totaling $13716 at 3.99% APR or earn $642 in Rewards+ on this purchase.Apply now
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Grizzly 9 x 49in. Vertical Mill with Power Feed and DRO, G0796

4.916 Reviews

Item # 229402099

Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
Image showing  9 x 49in. Vertical Mill with Power Feed and DRO, G0796
$12850.00
See Price at Checkout
or
or
financeCard Logo
$381/mo.†  for 36 months totaling $13716 at 3.99% APR or earn $642 in Rewards+ on this purchase.Apply now

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

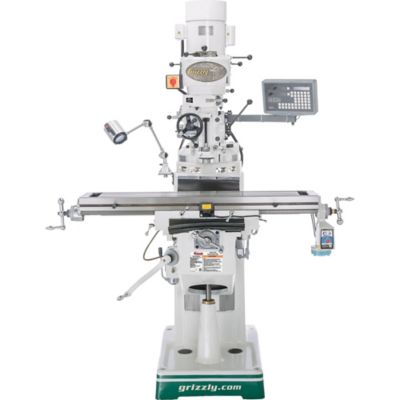

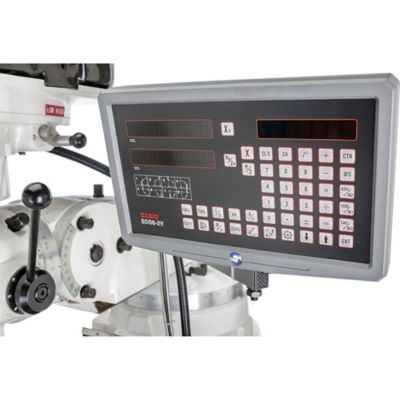

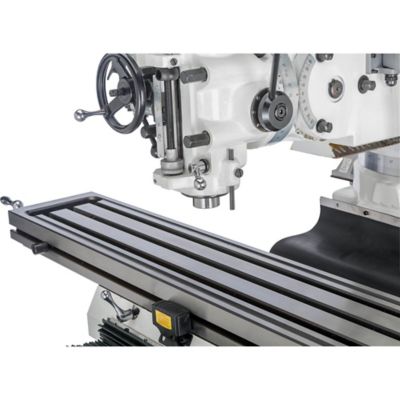

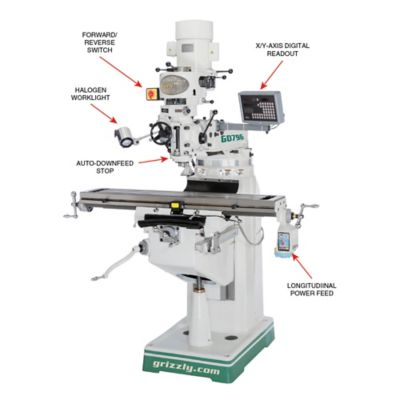

The G0796 9" x 49" Vertical Mill with power feed and DRO is a full featured mill built for those that only have single-phase power. This machine has a 2-axis DRO to ensure exact table position at all times. With the 9" x 49" table, you can set up a rotary table or another fixture on one side without having to remove your vise on the other. Additionally, the table has a built-in longitudinal power feed!

The bed of the lathe is constructed with Meehanite castings that are hardened and precision-ground in the traditional three V-way prismatic design.

The one-shot pump action lubricates the X-, Y- and Z-axis table ways. The halogen work light provides direct light on your workpiece for improved visibility.

Like all Grizzly vertical milling machines, the G0796 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0796 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the mill are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 3HP, 220V, single-phase, 19.5A
  • Spindle taper: R-8
  • Spindle travel: 5"
  • Spindle speeds: 8, 80-2720 RPM
  • Head ram travel: 12"
  • Head tilt: 90° left/right, 45° front/back
  • Turret/column swivel: 360°
  • Maximum distance spindle to table: 15-7/8"
  • Table travel (longitudinal): 28"
  • Table travel (cross): 12"
  • Table travel (vertical): 16"
  • Table size: 9" x 49"
  • T-slots: 3 @ 2-1/2" centers, 5/8" wide
  • Base footprint: 41" x 27"
  • Overall dimensions: 83" W x 62" D x 84" H
  • Approximate shipping weight: 2580 lbs.
  • Longitudinal power feed
  • 2-Axis DRO
  • Meehanite castings
  • Chrome-plated, precision-ground quill
  • One-shot pump lubrication
  • Auto stop with micro-adjustable stop
  • Auto downfeed
  • R-8 Spindle
  • X- and Y-axis covers
  • Hardened and ground table surface
  • Forward and reverse spindle switch
  • Halogen work light
  • Includes service tools and toolbox

Similar Items

Items You May Like

Customers Also Bought

Reviews

Rating Snapshot

Select a row below to filter reviews.
14 reviews with 5 stars.
2 reviews with 4 stars.
0 reviews with 3 stars.
0 reviews with 2 stars.
0 reviews with 1 star.

Overall Rating

4.9

Review this Product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification
    • price
    • satisfaction
    • purchase
    • setup
    • accuracy
    • quality
    • parking
    • performance
    1 to 4 of 16 Reviews
    1 – 4 of 16 Reviews
    Review 1

    First mill ever used or purchased.

    5 years ago
    Machine arrived about 3 weeks sooner than expected, meaning it was ordered on a Saturday from WA and it arrived the following Saturday in western CO. Had to rent a skid-steer to unload it and set in my garage/shop. Had to wait 2 weeks for the electrician to get me power to the shop (he ran a few extra power outlets for lathes, drills, etc.) busy guy but cut me a great deal on sub-panel and installation. Powered it up for a quick listen and function check then began quill run-in procedure. Stepped it up from low-low speed to high-high speed, 5 minutes forward and 5 minutes reverse in each speed. Add that up and ~80 minutes later I was ready for set up. Motor and head assembly warmed up some but nothing out of the norm for running a motor over an hour. I own a combo-machine and working with it's limitations is a tricky balance between "that's pretty dang good" and "I think that'll work." The 0796 is surprisingly quiet and obviously much more rigid than a combo-machine. Initial thoughts, impressions and the little tinkering I've done are very encouraging. I don't think I could expect any different from a "big name" machine. If this machine functions like it currently does for the next couple years it will surely pay for itself, and I foresee it most likely outlasting me. Eventually a slotting/shaping attachment and horizontal milling attachment will be added. As is this machine is more than adequate for my current gun shop needs.

    Originally posted on grizzly.com

    Review 1

    Great little mill...

    6 years ago
    My mill is approx a year old with Zero issues, Ridgid, accurate, I don't work it real hard, but I'm certainly not afraid to. Perfect fit for my retirement workshop (DAVE CAVE !!!)

    Originally posted on grizzly.com

    Review 1

    Perfect

    6 years ago
    I needed a single phase mill and this fit the bill.. Were cutting product and going forward. Grizzly is the best

    Originally posted on grizzly.com

    Review 1

    Great addition to my shop

    6 years ago
    First machine damaged in shipment so Grizzly shipped replacement. Great customer service. Machine performs as expected, precise, runs smoothly. Anyone looking for a new machine of this capability should seriously consider this machine.

    Originally posted on grizzly.com
