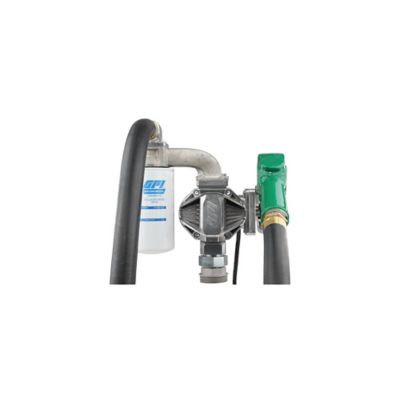

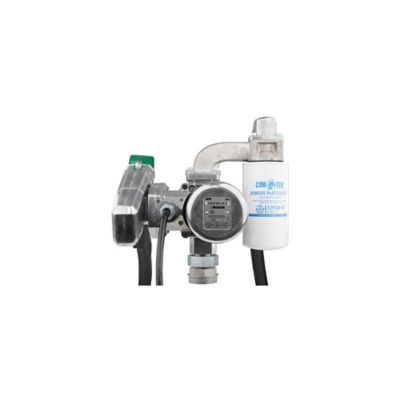

GPI 20 GPM 12 V Fuel Transfer Pump, Automatic Diesel Nozzle with Filter
Item # 600550699
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 600550699
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
GPI G20 20 GPM 12V DC fuel transfer pump with automatic shut-off diesel nozzle and 25 GPM filter. TRUE 20 GPM flow that's Quick-Fit ready! Not only can the GPI G20 deliver true 20 GPM flow, but it's designed for GPI's exclusive Quick-Fit modular accessories. What this means to you: 20 GPM you can count on and the ability to customize your personal fuel station. The powder-coated motor can and diecast aluminum body makes it extremely dependable and lightweight at only 19 lbs. The pump is corrosion-resistant and ready to withstand years of work in any application. Factory-Installed power cord saves installation time. Spin collar mount makes installation and pump orientation easy! Combo includes 1" NPT automatic diesel shut-off nozzle designed to attach to a 1-inch fuel hose for safe, reliable dispensing of gasoline, diesel fuel, and kerosene. One-finger design with hold-open clips lets you quickly set the desired flow rate while reducing spillage. Quick-Fit 25 GPM filter and adapter.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.

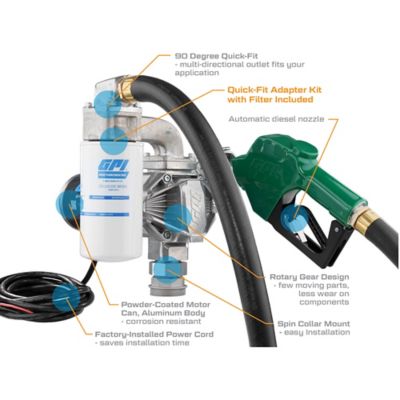

- Includes a 10 micron, 1 3/8 12 UNF particulate filter that removes debris from fuel that may damage your equipment
- Includes a Quick-Fit 1 in. NPT 90 degree outlet to provide multidirectional options
- Powder coated motor can and aluminum body to prevent rust and survive all weather conditions
- Drip catch - Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Factory-Installed power cord saves installation time
- Spin collar mount makes installation and pump orientation easy - fits any 2" NPT tank
- Quick-fit modular makes it easy to attach a meter to build your own custom system
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 34 Amp |
| Body Materials | Powder Coated, Corrosion-Resistant Diecast Aluminum |
| Compatible Fluids | Diesel, Gasoline, Kerosene |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min on , 30 min off |
| Features | G20-12AD 12V DC 20 GPM Fuel transfer pump, Auto-shut off diesel nozzle, Quick-Fit 25 GPM filter and adapter, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual |
| Horsepower | 0.4 hp |
| Hose Diameter | 14 ft. 5.2m x 1 in. MNPT |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Standard, Commercial, Residential |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 15 ft. |
| Maximum Operating Pressure | 12 PSI |
| Maximum Operating Temperature | 131deg F |
| Minimum Operating Pressure | 12 PSI |
| Minimum Operating Temperature | -22deg F |
| Power Cord Length | 18 ft. |
| Power Type | 12 Volt |
| Product Height | 13.81 in. |
| Product Length | 11.6 in. |
| Product Weight | 38 lb. |
| Product Width | 13.01 in. |
| Voltage | 12V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | 162020-03TSC |
