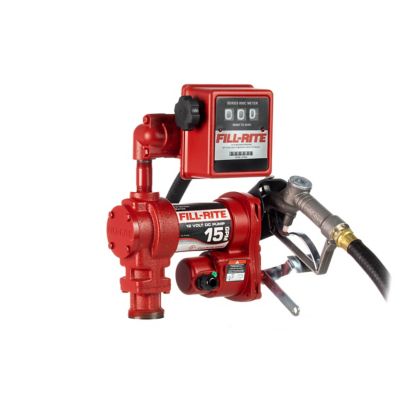

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump, 15 GPM, FR1204H
Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump, 15 GPM, FR1204H
4.740 Reviews
Item # 395071799
Get everything you need
Neighbor’s Club Members earn points with purchases.
Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump, 15 GPM, FR1204H
4.740 Reviews
Item # 395071799
Shopping at
Grassland (franklin) TN
Delivery to
37027
Lower Price at this Store
Only $369.99
eachSee price at checkout
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump is a heavy-duty fuel transfer pump you can count on. This Fill-Rite pump includes installation components and no additional accessories. Made with durable cast iron, this fuel transfer pump provides heavy-duty performance and withstands daily use in mobile tank applications.
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
- Adjustable electrical junction box rotates 180 deg. for added flexibility while wiring and improved installation in tight spaces
- Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Built-in strainer on the fuel transfer pump filters out particulates and prevents fuel contaminates from damaging your equipment
- On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
- Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
- Rotary vane pump technology delivers 15 GPM, perfect for filling equipment with fuel tanks from 15 gal. to 60 gal.
- Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene and mineral spirits
- Equipped with a 37 ft. discharge head
- Suction lift: 8 ft.
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 20A |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Compatible with Diesel,Gasoline,Biodiesel up to B20,Mineral Spirits |
| Horsepower | 0.25 hp |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 105 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -17 deg. |
| Power Type | 12 Volt |
| Product Height | 9.5 in. |
| Product Length | 4.75 in. |
| Product Weight | 19.1 lb. |
| Product Width | 10 in. |
| Voltage | 12V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR1204H |
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: What is the diameter of the base of the pump where at threads into the tank
a year ago2 Answers
- A: This pump has a 2in NPT bung, which fits most barrels and tanks.a year agoHelpful?
Q: Does it come with the pickup tube
a year ago1 Answer
- A: The FR1204H is a pump only and does not come with a pick up tube. If you would like to purchase it separately please refer to 1200KTG9099.a year agoHelpful?
Q: can this be used on a 55 gallon drum
2 years ago1 Answer
- A: Hi Mike, Yes this would work for a 55 gallon drum.2 years agoHelpful?
