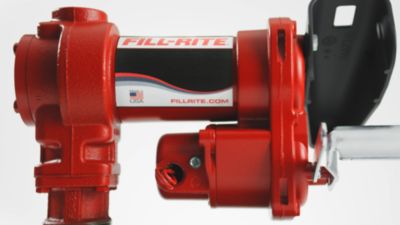

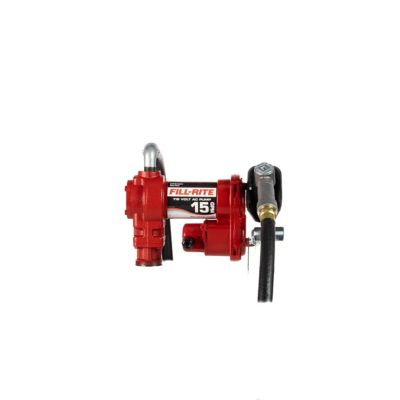

The Fill-Rite 0.17 HP 115VAC Electric Fuel Transfer Pump is a heavy-duty fuel transfer pump you can count on. This Fill-Rite pump and accessory bundle comes complete with a hose, a manual nozzle and installation components. Made with durable cast iron, this fuel transfer pump provides heavy-duty performance and withstands daily use in mobile applications.
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile applications
- Adjustable electrical junction box rotates 180 deg. for added flexibility while wiring and improved installation in tight spaces
- Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Built-in strainer on the fuel transfer pump filters out particulates and prevents fuel contaminates from damaging your equipment
- On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
- Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
- Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15 gal. to 60 gal.
- Powered by a 115VAC motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to a standard 115V AC electrical supply and installing onto stationary aboveground tanks
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene and mineral spirits

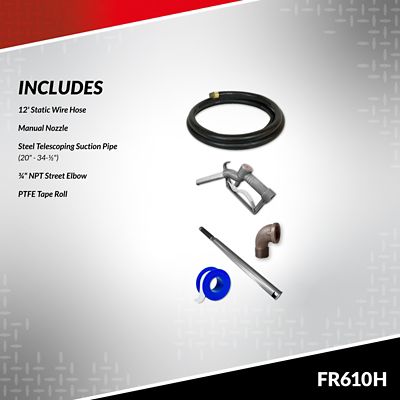

- Includes a 3/4 in. x 12 ft. UL-listed hose with static ground wire and a 3/4 in. cast-aluminum manual nozzle
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 2A |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Compatible with |
| Horsepower | 0.17 hp |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 105 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | 0.17 deg. |
| Power Type | Electric |
| Product Height | 9 in. |
| Product Length | 5.25 in. |
| Product Weight | 18 lb. |
| Product Width | 13.25 in. |
| Voltage | 115V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR610H |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Does it have an automatic shutoff when full of fuel
a year ago1 Answer
- A: This product is the FR610H which comes with a manual nozzle, so it will not have automatic shutoff. If you would like a model with the automatic shutoff feature, please refer to our FR610HA TSC #1860863.a year agoHelpful?
