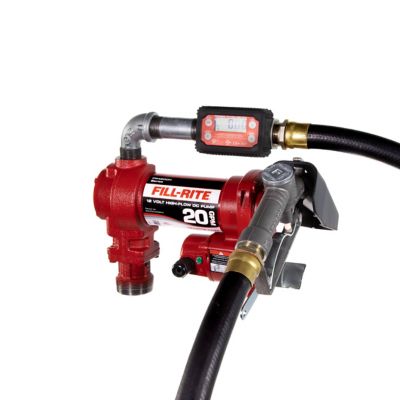

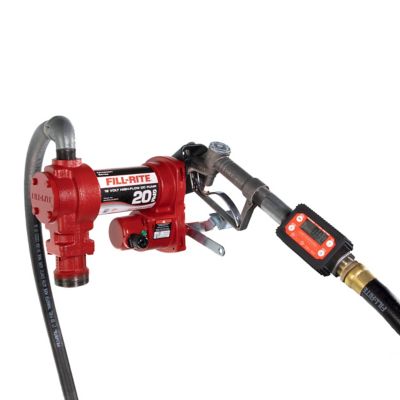

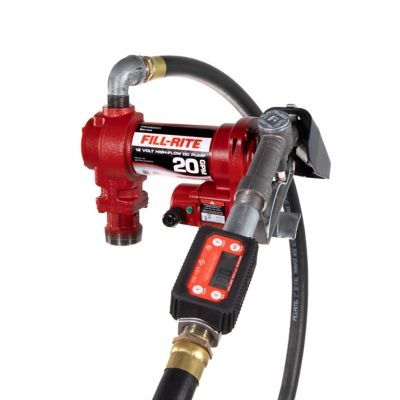

Fill-Rite 1/4 HP 12V Fuel Transfer Pump with Discharge Hose, 20 GPM, Manual Nozzle, Suction Pipe and Digital Meter, FR4219H
Item # 186089999
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 186089999
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Fill-Rite 12V 20 GPM Fuel Transfer Pump with Discharge Hose, Manual Nozzle, Suction Pipe and Digital Meter is a heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, suction pipe, and installation components. Proudly manufactured in the USA, this Fill-Rite fuel transfer pump is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

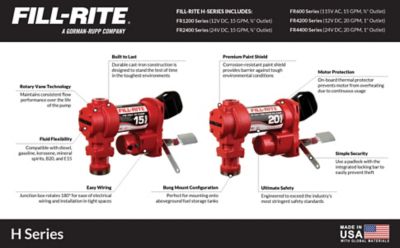

- Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
- Adjustable electrical junction box rotates 180 degrees for added flexibility while wiring and improved installation in tight spaces
- Thermally-protected motor prevents your fuel transfer pump overheating, ensuring your pump withstands the test of time
- Built-in strainer filters out particulates and prevents fuel contaminates from damaging your fuel transfer pump
- On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
- We stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
- Flow rate range of the fuel transfer pump: 0 to 20 GPM
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| Amperage | 19A |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel, Gasoline, Mineral Spirits |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. |
| Features | Self Priming |
| Horsepower | 0.25 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Industrial, Residential |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 140 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -17 deg. |
| Power Cord Length | 18 ft. |
| Power Type | 12 Volt |
| Product Height | 6.5 in. |
| Product Length | 15.5 in. |
| Product Weight | 19.1 lb. |
| Product Width | 13 in. |
| Voltage | 12V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR4219H |
