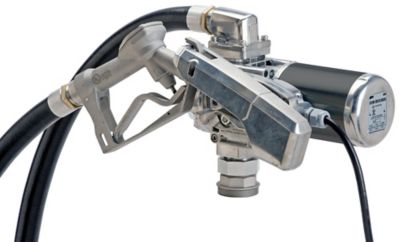

GPI 12 V 20 GPM G20-012MD Mobile Fuel Transfer Pump
Item # 190051499
Neighbor’s Club Members earn points with purchases.
Neighbor’s Club Members earn points with purchases.

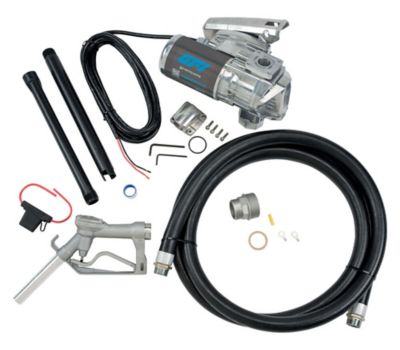

GPI G20 20 GPM 12V DC fuel transfer pump with manual shut-off diesel nozzle. TRUE 20 GPM flow that's Quick-Fit ready! Not only can the GPI G20 deliver true 20 GPM flow, but it's designed for GPI's exclusive Quick-Fit modular accessories. What this means to you: 20 GPM you can count on and the ability to customize your personal fuel station. The powder-coated motor can and diecast aluminum body makes it extremely dependable and lightweight at only 19 lbs. The pump is corrosion-resistant and ready to withstand years of work in any application. Factory-Installed power cord saves installation time. Spin collar mount makes installation and pump orientation easy! Combo includes 1" NPT Black Diamond no-fail manual nozzle - the most durable, best-performance nozzle on the market! Nozzle has 7/8-inch Leaded On-Road Diesel Spout.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Quick-fit modular design with simple four-bolt connection points allows you to attach a filter, meter or both easily and build a custom system to fit your needs
- Manufactured from high-quality die-cast aluminum, our fuel transfer pump with manual nozzle is extremely dependable and lightweight
- Rotary gear pump is engineered with fewer moving parts, which means less friction and wear on its components; thus this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump
- 12VDC motor of our fuel transfer pump is highly efficient as it delivers gasoline, diesel fuel, ethanol blends, and kerosene at flow rates up to 20 GPM
- Our 12V transfer pump has an integrated circuit breaker to prevent overheating, extending the overall pump life
- Aluminum housing is rugged and corrosion-resistant to withstand years of work in any application
- Innovative spin collar design of our fuel transfer pump makes installation fast and easy
- Lockable nozzle holder with enclosed spout guard protects from weather and debris
- Factory-Installed power cord saves installation time
- Removable inlet strainer for easy cleaning
- Diecast aluminum housing is lightweight - weighs 19lbs = low stress on tank
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 40A |
| Body Materials | Aluminum |
| Compatible Fluids | Diesel, Gasoline, Gasoline/Ethanol, Kerosene |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. on/off |
| Features | Self-Priming |
| Horsepower | 0.4 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Standard |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 9 ft. |
| Maximum Operating Pressure | 15 PSI |
| Maximum Operating Temperature | 125 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | -20 deg. F |
| Power Type | Electric, 12 Volt |
| Product Height | 9.24 in. |
| Product Length | 11.62 in. |
| Product Weight | 35 lb. |
| Product Width | 9.2 in. |
| Voltage | 12V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | 162000-02 |
