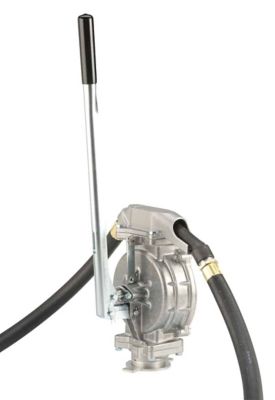

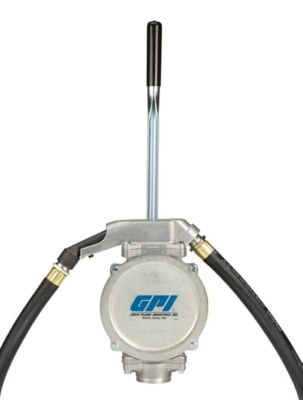

GPI Manual Lever Action Fluid Transfer Hand Pump, 20 gal./100 Strokes
4.593 Reviews
Item # 102265499
Neighbor’s Club Members earn points with purchases.
4.593 Reviews
Item # 102265499
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.
The GPI DP-20 fluid transfer hand pump is a lever-action diaphragm pump that delivers up to 20 gallons per 100 strokes and provides exceptional performance year after year. Its maintenance-free design reduces the number of internal moving parts which greatly reduces wear and binding seen with conventional hand pumps. The DP-20 hand pump is compatible with a wide variety of petroleum products.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Lever action diaphragm pump with lockable handle, deters theft.
- Can be used to pump dirty or contaminated fluids
- Lightweight, die-cast aluminum housing for easy installation.
- Designed to give you maximum reliability and efficiency.
- Stainless steel piston shaft and Buna-N diaphragm and seals for long pump life.
- Built-in air valve to prevent leakage at nozzle.
- Approved for use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20), kerosene, petroleum products such as medium oil (up to 30 weight), and hydraulic fluid.
- 2 year limited warranty
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| Body Materials | Aluminum |
| Compatible Fluids | Kerosene |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 0 N/A |
| Features | Lever action diaphragm pump with lockable handle, deters theft. Can be used to pump dirty or contaminated fluids Lightweight, die-cast aluminum housing for easy installation. |
| Hose Diameter | 34 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Standard |
| Maximum Head Lift | 40 in. |
| Maximum Operating Pressure | 100 PSI |
| Maximum Operating Temperature | -20 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | 125 deg. F |
| Power Type | Manual, None |
| Product Height | 18.13 in. |
| Product Length | 8.38 in. |
| Product Weight | 14.8 lb. |
| Product Width | 15.25 in. |
| Warranty | 2 Year Limited |
| Manufacturer Part Number | 138000-01TSC |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: Will it pump Gasoline without leaking
3 days ago1 Answer
- A: Howdy neighbor! Yes, the GPI Manual Lever Action Hand Pump is UL Listed and specifically engineered to pump gasoline safely without leaking. Its heavy-duty aluminum body and fuel-resistant Buna-N seals prevent degradation, though you must use a gasoline-rated yellow thread tape during installation to guarantee a leak-free seal.3 days agoHelpful?
Q: Can this pump removed after each use due to tonneau cover on truck bed
12 days ago1 Answer
- A: Howdy neighbor! Yes, you can easily remove the GPI hand pump after each use by simply unscrewing its 2-inch NPT locking collar by hand without using any tools. Taking the pump off allows your low-profile fuel tank bung to sit well below the bed rails so your tonneau cover can close perfectly. Just be sure to have a bag or storage bin handy when you pull it out, as the attached suction pipe will lift out with the pump and may drip a little leftover fluid.12 days agoHelpful?
Q: Will this fit on 50 gallon drum
30 days ago1 Answer
- AI-generatedA: Yes, this pump will fit a 50 gallon drum. It includes a long adjustable suction pipe designed to fit a wide variety of tanks and has been used successfully by reviewers on 50, 55, and 100 gallon tanks.24 days agoHelpful?
Q: I have this hand pump and cannot get it to prime. What do I do?
a month ago1 Answer
- AI-generatedA: If you are experiencing priming issues, ensure you are not using an inline filter, as these pumps do not generate enough pressure to work properly with one. You should also check the front seal for tightness, as it may require a small adjustment to ensure a proper seal.a month agoHelpful?
Q: Can this be used for well water?
2 years ago1 Answer
- A: Hi, Great question! This fuel transfer pump has 1 in. inlet and a 3/4 in. outlet connection that can be used with gasoline, diesel, and kerosene for your convenience. It is not recommended to be used in a well.2 years agoHelpful?
Q: Can this pump be used in a 150 gal deisel tank for fueling a tractor.? GPI-GPI DP-20 Hand pump If not what size do you recommend.
5 years ago1 Answer
- A: The GPI DP-20 Hand Pump is a reliable piece that you will come to depend on. This fuel transfer pump has 1-inch inlet and a 3/4-inch outlet connection that can be used with gasoline, diesel, and kerosene for your convenience.5 years agoHelpful?
Q: Will this work on a 300 gal farm tank?
5 years ago1 Answer
- A: Flow rate is up to 20 gallons/100 strokes for quick transferring.5 years agoHelpful?
Q: Can I add a filter inline or will it be to difficult to pump if I do?
6 years ago1 Answer
- A: We do not recommend using a filter on the hand pumps because they do not generate a high amount of pressure, so yes it could become difficult to pump but also result in priming issues. If you must have some type of filter on the outlet we would recommend using an in-line strainer instead. If you have any questions please give us a call!6 years agoHelpful?
Q: Can this pump be used to transfer Diesel Exhaust Fluid ?
6 years ago1 Answer
- A: Sorry but it cannot. We no longer manufacture DEF pumps so you would have to source one elsewhere I'm afraid. Thank you, GPI sales team.6 years agoHelpful?
Q: Will this pump thru a Cim tek filter that you sale ?
7 years ago1 Answer
- A: I'm sorry but without specifications on that filter I cannot answer your question; however, we do not recommend the use of filters on our hand pumps because they do not put out enough pressure to work properly. I would advise using an inline strainer if you need something to filter out debris.7 years agoHelpful?
