Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump, 15 GPM, Pump Only, FR604H
Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump, 15 GPM, Pump Only, FR604H
Item # 186086199
$474.99
or
or
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump, 15 GPM, Pump Only, FR604H
Item # 186086199
$474.99
or
or
$40/mo.† suggested payments with 12 Months Financing or earn $23 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

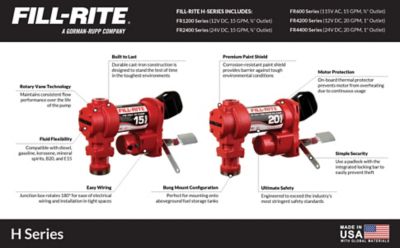

The Fill-Rite 0.17 HP 115V Electric Fuel Transfer Pump is a heavy-duty fuel transfer pump. This Fill-Rite pump includes limited installation components and no additional accessories. Made with durable cast iron, this fuel transfer pump provides heavy-duty performance and withstands daily use in mobile applications.
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile applications
- Adjustable electrical junction box rotates 180 deg. for added flexibility while wiring and improved installation in tight spaces
- Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Built-in strainer on the fuel transfer pump filters out particulates and prevents fuel contaminates from damaging your equipment
- On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
- Limited lifetime warranty to protect your purchase and your business
- Fill-Rite pump is designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene and mineral spirits
- Powered by a 115VAC motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to a standard 115V AC electrical supply and installing onto stationary aboveground tanks
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 2A |
| Body Materials | Cast Iron |
| Compatible Fluids | Mineral Spirits |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Self Priming |
| Horsepower | 0.17 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 444 in. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 140 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -17 deg. |
| Power Type | Electric |
| Product Height | 9 in. |
| Product Length | 5.25 in. |
| Product Weight | 18 lb. |
| Product Width | 13.25 in. |
| Voltage | 115V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR604H |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: length of pick up tube? or does it come with a pick up tube that goes down into the supply tank?
10 months ago2 Answers
- A: This model FR604H does not come with a pick up tube. We have two options for you; 1. Buy FR610H which comes with a pick up tube. 2. You can purchase the pick up tube the works directly with this pump which is part number 1200KTG9099.9 months agoHelpful?
Q: I sent it to wrong address
a year ago1 Answer
- A: Hello, thank you for writing in. We recommend reaching out to the Tractor Supply customer solutions team directly for assistance. ***Tractor Supply Customer Service*** 877-718-6750 7:00 am - 9:00 pm CST (Mon. - Sat.) 8:00 am - 7:00 pm CST (Sun.) Closed Easter Sunday and Christmas Day https://www.tractorsupply.com/tsc/customer-solutions?cm_sp=LP-_-Customer+Solutions-_-Contact+Customer+Solutions#contactus_maina year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: length of pick up tube? or does it come with a pick up tube that goes down into the supply tank?
10 months ago2 Answers
- A: This model FR604H does not come with a pick up tube. We have two options for you; 1. Buy FR610H which comes with a pick up tube. 2. You can purchase the pick up tube the works directly with this pump which is part number 1200KTG9099.9 months agoHelpful?
Q: I sent it to wrong address
a year ago1 Answer
- A: Hello, thank you for writing in. We recommend reaching out to the Tractor Supply customer solutions team directly for assistance. ***Tractor Supply Customer Service*** 877-718-6750 7:00 am - 9:00 pm CST (Mon. - Sat.) 8:00 am - 7:00 pm CST (Sun.) Closed Easter Sunday and Christmas Day https://www.tractorsupply.com/tsc/customer-solutions?cm_sp=LP-_-Customer+Solutions-_-Contact+Customer+Solutions#contactus_maina year agoHelpful?
