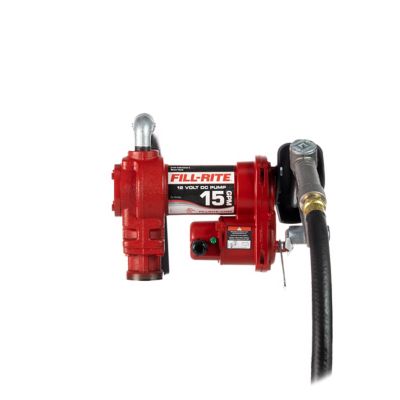

Fill-Rite 1/4 HP 12VDC Heavy-Duty Fuel Transfer Pump, 15 GPM, FR1210H
Fill-Rite 1/4 HP 12VDC Heavy-Duty Fuel Transfer Pump, 15 GPM, FR1210H
Item # 395069499
Stocked & Ready
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Fill-Rite 1/4 HP 12VDC Heavy-Duty Fuel Transfer Pump, 15 GPM, FR1210H
Item # 395069499
Stocked & Ready
Shopping at
Grassland (franklin) TN
Delivery to
Lower Price at this Store
Only $499.99
eachSee price at checkout
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.

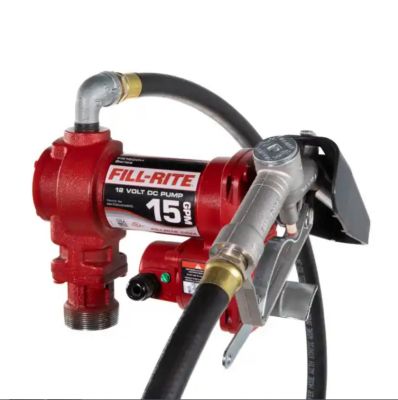

The Fill-Rite 1/4 HP 12VDC Heavy-Duty Fuel Transfer Pump is a fuel transfer pump you can count on. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, a suction pipe and installation components. Made with durable cast iron, this fuel transfer pump provides heavy-duty performance and withstands daily use in mobile tank applications.
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
- Adjustable electrical junction box rotates 180 deg. for added flexibility while wiring and improved installation in tight spaces
- Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Built-in strainer on the fuel transfer pump filters out particulates and prevents fuel contaminates from damaging your equipment
- On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
- Fuel transfer pump is backed by a limited lifetime warranty to protect your purchase and your business
- Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15 gal. to 60 gal.
- Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene and mineral spirits
- Equipped with a 37 ft. discharge head

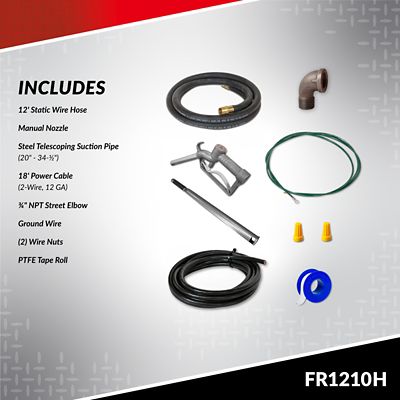

- Includes a 3/4 in. x 12 ft. hose with static ground wire, a 3/4 in. cast-aluminum manual nozzle and an 18 ft. 12 ga. Cable
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 20 Amp |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Compatible with Diesel, Gasoline, Biodiesel up to B20, Mineral Spirits |
| Horsepower | 0.25 hp |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 105 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | 0.17 deg. |
| Power Cord Length | 18 ft. |
| Power Type | 12 Volt |
| Product Height | 6.5 in. |
| Product Length | 15.5 in. |
| Product Weight | 18.9 lb. |
| Product Width | 10 in. |
| Voltage | 12V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR1210H |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: What is the range the suction tube be adjusted
6 months ago1 Answer
- A: 20" - 34 1/2" when full extended.6 months agoHelpful?
Q: Does pump come with suction tube
2 years ago1 Answer
- A: Yes, this pump comes with a suction tube.2 years agoHelpful?
Q: is nozzle auto shut off
3 years ago1 Answer
- A: This does not come with an auto shut off. If you would like a pump with a green auto nozzle please refer to our FR1210HA. If you would like a pump with a red auto nozzle please refer to our FR1210HA1.3 years agoHelpful?
Q: What is the hose length?
3 years ago1 Answer
- A: The hose is 12 feet.3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: What is the range the suction tube be adjusted
6 months ago1 Answer
- A: 20" - 34 1/2" when full extended.6 months agoHelpful?
Q: Does pump come with suction tube
2 years ago1 Answer
- A: Yes, this pump comes with a suction tube.2 years agoHelpful?
Q: is nozzle auto shut off
3 years ago1 Answer
- A: This does not come with an auto shut off. If you would like a pump with a green auto nozzle please refer to our FR1210HA. If you would like a pump with a red auto nozzle please refer to our FR1210HA1.3 years agoHelpful?
Q: What is the hose length?
3 years ago1 Answer
- A: The hose is 12 feet.3 years agoHelpful?
