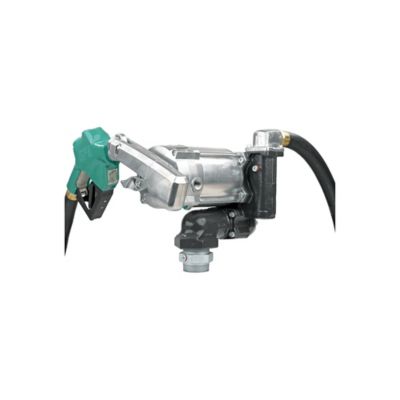

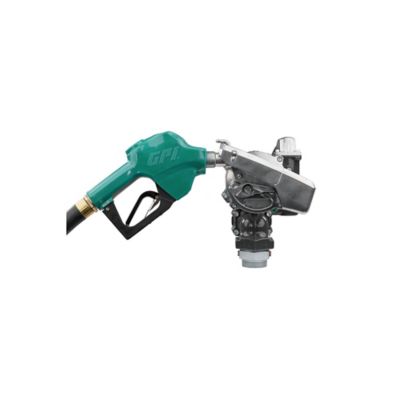

Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderGPI 20 GPM 115 V GPRO Fuel Transfer Pump, Automatic Nozzle
Item # 600536699
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 600536699
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
Out of stock at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles FREE
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
GPRO V20 20 GPM 115V/230V AC dual voltage configurable, fuel transfer pump with automatic shut-off diesel nozzle. 20 GPM, high-output performance - it's GPRO tough stationary fueling! The GPRO V20 deliver professional grade, heavy duty performance for stationary fueling applications. It's packed with exceptional design features that extend pump life, make maintenance a breeze, and provide the best return on your investment. V20 incorporates GPRO's Quick-fit modular design to easily add accessories to an adaptable footprint. A tank adapter allows fast, simple install and it includes an integrated port for vacuum breaker kit. Combo includes 1-inch NPT, UL listed automatic shut-off, diesel nozzle. No Pressure, No Flow: The nozzle latch will only engage once the nozzle detects fluid pressure, improving user safety in accordance with UL standards. Easy one-finger hold-open clip allows you to set the flow rate for automatic dispensing while reducing fuel spillage.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.

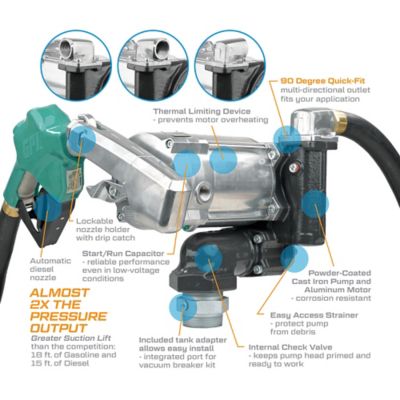

- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High Pressure Performance ideal with hose reel
- Quick-Fit 1 in. NPT 90 degree outlet for fueling large diesel equipment, multidirectional.
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for vacuum breaker kit.
- Thermal limiting device to prevent overheating for extended life
- Dual voltage configurable (115V/230V)
- cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
- cULus Power-Operated Pumps for Petroleum Products
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 5.2 Amp |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel, Gasoline, Kerosene |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min on , 30 min off |
| Features | V20-115AD Fuel transfer pump w/spin collar, Lockable nozzle holder, Automatic shut-off diesel nozzle, Dispensing hose, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owners manual |
| Horsepower | 0.5 hp |
| Hose Diameter | 18ft. 5.5m x 1 in. MNPT UL Listed Hose Assembly |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Industrial, Commercial |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 18 ft. |
| Maximum Operating Pressure | 25 PSI |
| Maximum Operating Temperature | 125deg F |
| Minimum Operating Pressure | 25 PSI |
| Minimum Operating Temperature | -20deg F |
| Power Cord Length | 0 in. |
| Power Type | Other |
| Product Height | 12.73 in. |
| Product Length | 8.24 in. |
| Product Weight | 61.8 lb. |
| Product Width | 14.08 in. |
| Voltage | 115V |
| Warranty | Limited Lifetime Warranty |
| Manufacturer Part Number | 171000-03TSC |
