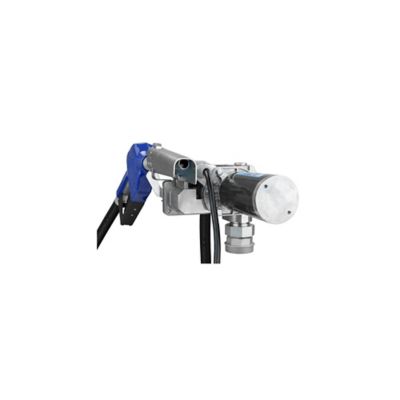

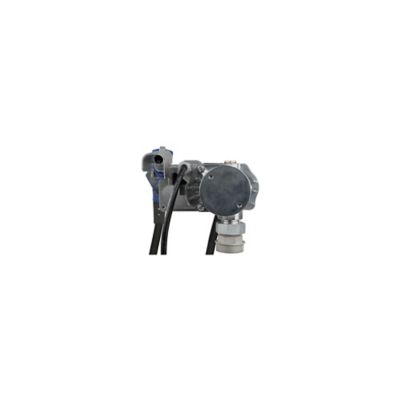

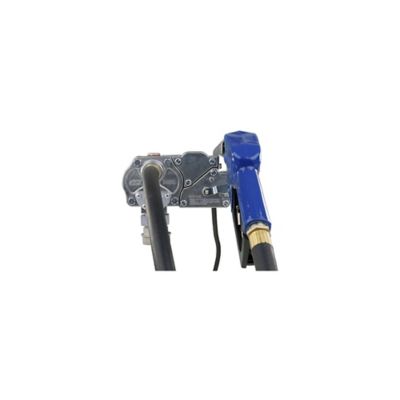

GPI M-150S-AU Fuel Pump, 110000-100TSC

SKU: 395813999
GPI M-150S-AU Fuel Pump, 110000-100TSC
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.8


TSC of high ridge #2067
40 dillon plaza dr
high ridge, MO 63049
(636) 376-8668
TSC of high ridge #2067
40 dillon plaza dr
high ridge, MO 63049
(636) 376-8668
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

The GPI M-150S-AU Fuel Pump delivers up to 15 GPM (56 LPM). Comes with U.L. Listed motor and is CSA certified. Convenient Spin Collar for easy installation. The M-150S-AU comes with 12 feet of 3/4 inch grounded hose, U.L. Listed automatic nozzle and lockable nozzle hanger.

  • Material: Heavy Duty Cast Aluminum
  • Voltage Rating: 12-volt DC
  • Flow Rate: Up to 15 gpm/57 lpm
  • For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Maximum pressure: 15 PSI
  • Inlet port size: 1 in.
  • Outlet port size: 3/4 in.
  • 16 in. W x 19 in. L x 9 in. H
  • Aluminum housing
  • 2 year limited warranty

Specification Description
CountryofOrigin: Made in USA
Nozzle Type: Automatic
Outlet Size: 3/4 in.
Maximum Lift: 4.8 ft.
Inlet Size: 1 in.
Special Feature(s): Independent lab tested, the GPI M-150S received a Gold Medal Performance award for delivering three times more operating hours than our leading competitor's comparable pump.
Hose Length: 12 ft.
Maximum Total Head: 4.8 ft.
Intended Use Grade: Commercial, Industrial, Residential, Standard
Maximum Discharge Pressure: 15 PSI
Brand: GPI
Self-Priming: Yes
Product Width: 16 in.
Part Number: 110000-100TSC
Inlet Connection: Threaded Female
Horsepower: 1/5 HP
Discharge Diameter: 3/4 in.
AC or DC Powered: DC
Housing Material: Heavy Duty Cast Aluminum
Product Height: 9 in.
Inlet Diameter: 1 in.
Power Type: 12 Volt
Type: Fuel Pumps
Maximum Speed: 1,900 rpm
Voltage: 12 V
Amperage: 18 A
Compatible Fluids: Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
Maximum Flow Rate: 15 GPM
Product Weight: 25.1 in.
Discharge Connection: Threaded Female
Product Length: 19 in.
Seal Type: NBR
Manufacturer Part Number 110000-100TSC
GPI M-150S-AU Fuel Pump, 110000-100TSC is rated 4.8 out of 5 by 180.
Rated 5 out of 5 by from Quality from top to bottom... Spend a few dollars more and get a great product made in the USA !!!
Date published: 2020-01-05
Rated 5 out of 5 by from Great fuel pump for light to medium use. This pump works well on my 100 gallon portable tank welded to a trailer for convenient refill at my distributor as well as filling my two tractors on the move. I recommend this product if you use your tractor fairly often but do not need a big permanently stationed tank. My portable tank can be filled with 50 or more gallons which I would need to do the seasonal grass cutting and other cultivation each year.
Date published: 2019-12-21
Rated 5 out of 5 by from Awesome product and great price !! Great product and easy to install !! Buying 3more today !!
Date published: 2019-12-18
Rated 5 out of 5 by from BEST PUMP Great Pump, very easy to install. Heavy Duty, would buy again!
Date published: 2019-12-02
  • y_2020, m_1, d_23, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_83, tr_97
  • loc_en_US, sid_395813999, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply

Does this come with a suction tube? If so, what is the reach?

Asked by: Unused nickname
The M-150S-AU 12VDC fuel pump kit includes a telescoping suction pipe (15" to 40").
Answered by: GPI Inside Sales
Date published: 2018-08-02

Why all the models, what is the difference ? I'm looking at the m-150s-au. seems pretty much the same as more expensive pumps. What have you made cheaper in this model to reflect the price difference?

Asked by: Iampoppy
The M-150S-AU is with automatic nozzle and spin collar mount. We also have the M-150S-MU which is the same thing, but with a manual nozzle. Then there is the M-150S-EM which is the manual nozzle with a direct mount type. Please call in if you have further questions as explaining this over messaging can be difficult. Thank you, GPI sales team.
Answered by: GPI Inside Sales
Date published: 2019-03-28

Do you have to change the nozzle for pumping farm diesel? Also would the fuel meters work with farm diesel? Thanks rl

Asked by: Long farm
No the nozzle would not need to be changed for farm diesel. The nozzle for the M-150S-AU is designed for unleaded gasoline but there are no chemical compatibility issues with pumping diesel or kerosene. Most of our fuel meters are factory calibrated for diesel applications.
Answered by: GPI Inside Sales
Date published: 2019-12-02

what size filter do these use?

Asked by: tractorsupplydouglas1932
We recommend using a 10 micron filter and as long as the filter is approved for a flow rate of at least 15 GPM you should be good. Our filter kit is item 133527-01 and comes with everything you need to install the filter onto your M-150 fuel pump, which you can get from TSC. If you have any questions let us know 316-686-7361. Thank you, GPI sales team.
Answered by: GPI Inside Sales
Date published: 2019-05-23
