GPI 12 GPM 115V Fuel Transfer Pump, Manual Nozzle
GPI 12 GPM 115V Fuel Transfer Pump, Manual Nozzle
Item # 395814799
Get everything you need
Neighbor’s Club Members earn points with purchases.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
As the pump of choice for stationary locations in fleet, agriculture or industrial applications, the GPI 12 GPM M-1115S-MU Fuel Transfer Pump is ideal for dispensing gasoline, diesel fuel, and kerosene. Delivering flow rates up to 12 GPM (45 LPM), the fuel transfer pump features a self-priming rotary gear design, a 115VAC motor, and a lightweight cast aluminum body that resists corrosion. The pump comes with a manual unleaded nozzle, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., convenient spin collar for easy installation, and lockable nozzle holder to deter theft. Complete with a 2 year warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Great fuel transfer pump for stationary locations in fleet, agriculture or industrial applications.
- Motor is overload protected and explosion proof
- Circuit breaker motor protection extends motor life
- Unique strainer and poppet design allows for easy access and maintenance
- Lightweight aluminum fuel transfer pump provides corrosion resistance and reduces tank stress
- Lockable nozzle holder protects your investment and deters theft
- Convenient spin collar for easy installation and versatile pump mounting
- UL listed and CSA certified
- 2-year warranty
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 1.8A |
| Body Materials | Aluminum |
| Compatible Fluids | Gasoline |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1.75 in. |
| Duty Cycle | 30 min. on/off |
| Features | Self-Priming |
| Horsepower | 1/8 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 2 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 12 GPM |
| Maximum Head Lift | 5.5 ft. |
| Maximum Operating Pressure | 15 PSI |
| Maximum Operating Temperature | 120 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | -20 deg. F |
| Power Type | Electric, Battery |
| Product Height | 9 in. |
| Product Length | 19 in. |
| Product Weight | 22.7 in. |
| Product Width | 16 in. |
| Voltage | 115/230V |
| Warranty | 2 Year Limited |
| Manufacturer Part Number | 110000-81TSC |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: Can you add a fuel filter?
2 years ago1 Answer
- A: Hi there, For this specific inquiry, please contact the manufacturer's customer service at 1-800-835-0113.2 years agoHelpful?
Q: motor burned up what is part number for just motor
2 years ago1 Answer
- A: Hi there, Here are the part numbers from the user manual: 119008-1 Motor, 120-volt AC with Circuit Board 110025-1 Motor Shaft Seal or (Kit A or B) I would encourage you to review the user manual on page 11 it provides more information: https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/47/3958147_Man1.pdf2 years agoHelpful?
Q: I have it wired without the switch. when i use the fill nozzle and let go of the lever to switch to the next barrel to fill nothing else comes out despite the pump still running. is there a safty that trips when it senses back pressure or something?
4 years ago1 Answer
- A: For technical assistance, please contact GPI at 1-800-835-0113.4 years agoHelpful?
Q: the on off switch broke off after just bumping it when wiring it up. what is the specs required for this switch and part number. Im probably going to buy a aftermarket switch as these seem cheaply made and the wires are cut really short.
4 years ago1 Answer
- A: Please refer to page 10 of the instruction manual linked below for part numbers. For further assistance with obtaining replacement parts, please contact the manufacturer's customer service at 1-800-835-0113. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/47/3958147_Man1.pdf4 years agoHelpful?
Q: can this pump be used to pump def fluid?
5 years ago2 Answers
- A: Hello, aluminum pumps are not recommended for DEF, as the DEF will corrode the pump housing. Our 118003-1/PA-120-2UR Plastic Utility Pumps are compatible with DEF. These pumps will have NPT bung adapter fittings. Most DEF tanks will have 2” buttress bung openings. There are after-market tank adapters available (BANJO item#MBP200 2”Buttress x 2” NPT Adapter). With this set up, you would also need to purchase a hose, suction pipe and DEF nozzle.5 years agoHelpful?
Q: What is the warranty on your pumps
5 years ago1 Answer
- A: For warranty information you would need to contact GPI 1-800-835-0113.5 years agoHelpful?
Q: Are your pumps explosion proof.
Anonymous5 years ago1 Answer
- A: That was my understanding when i bought it. The pump motor is sealed so fumes can't get to where the brushes are sparking.5 years agoHelpful?
Q: Do you offer this particular particular fuel pump without the hose, nozzle components as I have all of these off our present pump that has quit working? Can this pump be fitted with a filter on the outlet side of the discharge?
5 years ago1 Answer
- A: For additional information you would need to contact the vendor.5 years agoHelpful?
Q: What size 3 wire Power Cords can I use with this product? Does the company sell power cords for this model pump?
6 years ago1 Answer
- A: You will need to consult with a certified electrician for the type and gauge of wire to use with the 115V models. GPI does not provide cable for the 115V models. If you have further questions let us know!6 years agoHelpful?
Q: Is it suitable for gas and diesel fuel?
7 years ago1 Answer
- A: Hello, Yes the M-1115S-MU can be used with Gasoline, Diesel and Kerosene. Thank you, GPI Sales Team.7 years agoHelpful?
1 - 10 of 11 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: Can you add a fuel filter?
2 years ago1 Answer
- A: Hi there, For this specific inquiry, please contact the manufacturer's customer service at 1-800-835-0113.2 years agoHelpful?
Q: motor burned up what is part number for just motor
2 years ago1 Answer
- A: Hi there, Here are the part numbers from the user manual: 119008-1 Motor, 120-volt AC with Circuit Board 110025-1 Motor Shaft Seal or (Kit A or B) I would encourage you to review the user manual on page 11 it provides more information: https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/47/3958147_Man1.pdf2 years agoHelpful?
Q: I have it wired without the switch. when i use the fill nozzle and let go of the lever to switch to the next barrel to fill nothing else comes out despite the pump still running. is there a safty that trips when it senses back pressure or something?
4 years ago1 Answer
- A: For technical assistance, please contact GPI at 1-800-835-0113.4 years agoHelpful?
Q: the on off switch broke off after just bumping it when wiring it up. what is the specs required for this switch and part number. Im probably going to buy a aftermarket switch as these seem cheaply made and the wires are cut really short.
4 years ago1 Answer
- A: Please refer to page 10 of the instruction manual linked below for part numbers. For further assistance with obtaining replacement parts, please contact the manufacturer's customer service at 1-800-835-0113. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/47/3958147_Man1.pdf4 years agoHelpful?
Q: can this pump be used to pump def fluid?
5 years ago2 Answers
- A: Hello, aluminum pumps are not recommended for DEF, as the DEF will corrode the pump housing. Our 118003-1/PA-120-2UR Plastic Utility Pumps are compatible with DEF. These pumps will have NPT bung adapter fittings. Most DEF tanks will have 2” buttress bung openings. There are after-market tank adapters available (BANJO item#MBP200 2”Buttress x 2” NPT Adapter). With this set up, you would also need to purchase a hose, suction pipe and DEF nozzle.5 years agoHelpful?
Q: What is the warranty on your pumps
5 years ago1 Answer
- A: For warranty information you would need to contact GPI 1-800-835-0113.5 years agoHelpful?
Q: Are your pumps explosion proof.
Anonymous5 years ago1 Answer
- A: That was my understanding when i bought it. The pump motor is sealed so fumes can't get to where the brushes are sparking.5 years agoHelpful?
Q: Do you offer this particular particular fuel pump without the hose, nozzle components as I have all of these off our present pump that has quit working? Can this pump be fitted with a filter on the outlet side of the discharge?
5 years ago1 Answer
- A: For additional information you would need to contact the vendor.5 years agoHelpful?
Q: What size 3 wire Power Cords can I use with this product? Does the company sell power cords for this model pump?
6 years ago1 Answer
- A: You will need to consult with a certified electrician for the type and gauge of wire to use with the 115V models. GPI does not provide cable for the 115V models. If you have further questions let us know!6 years agoHelpful?
Q: Is it suitable for gas and diesel fuel?
7 years ago1 Answer
- A: Hello, Yes the M-1115S-MU can be used with Gasoline, Diesel and Kerosene. Thank you, GPI Sales Team.7 years agoHelpful?
1 - 10 of 11 Questions
Similar Items
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
Customers Also Bought
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Reviews
- purchase
- installation
- satisfaction
- quality
- price
- ease of use
- reliable
- instructions
1 to 4 of 187 Reviews .
1 – 4 of 187 Reviews
Most Recent
Dorchester wi
Review 1
5 out of 5 stars.
Electric barral pump
a year ago

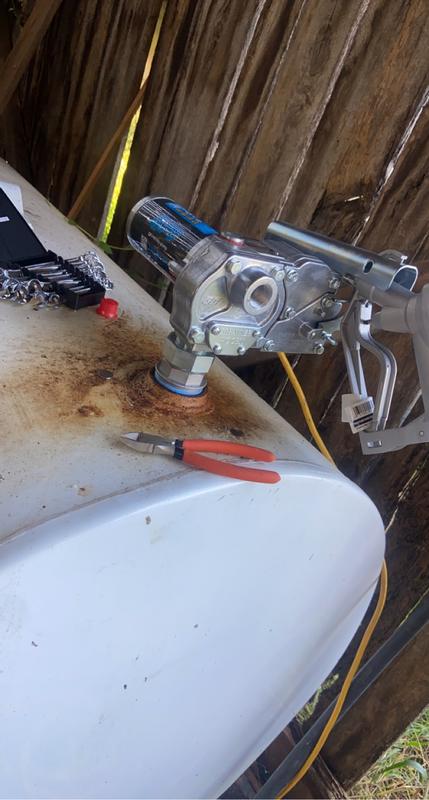

Easy to install on diesel barrel. Easy to use once installed.
