Chief LD Loader Welded Cylinder, 2 in. Bore x 19.75 Stroke, 1.25 in. Rod Dia.

SKU: 130779399
Chief LD Loader Welded Cylinder, 2 in. Bore x 19.75 Stroke, 1.25 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 5.0
5.0
 (1)

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

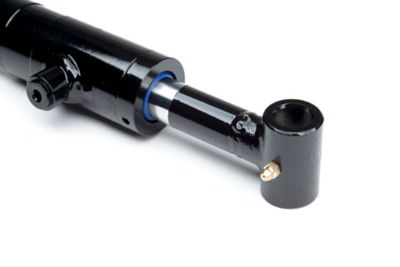

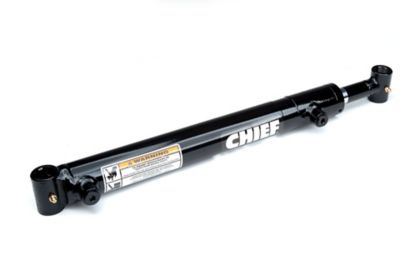

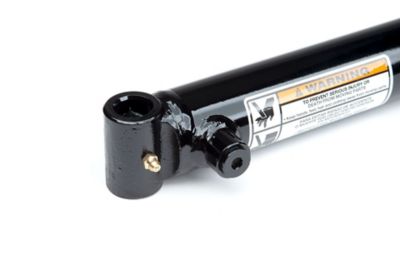

The Chief LD Loader Welded Cylinder with 2 in. Bore x 19.75 Stroke and 1.25 in. Rod Dia. is a small bore welded cylinder designed for light-duty loaders. The rod and base ends are welded cross-tubes with grease zerk. The ductile iron piston utilizes a wear ring to protect the seal from wear.

  • Ideal for construction, agricultural and other applications
  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: honed steel
  • Rod: hard chrome-plated
  • End Mounts: cross-tubes
  • Tube Seal: Buna O-ring with polytemp hytrel back-up
  • Rod Seal: polyurethane U-cup
  • Rod Wiper: polyurethane, snap-in
  • Piston Seal: 755 with wear rings, (2 each) wear bearings
  • All Seals: manufactured to USA specifications
  • Ports: SAE O-rings
  • Paint: black; custom colors are available
  • Packaging: individually poly bagged

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Maximum Weight Capacity: 27 lb.
Type: Loader Hydraulic Cylinder
Product Weight: 27 lb.
Special Feature: Welded loader cylinder with crosstube mounts
Package Quantity: 1
Includes: Pins and clips
Brand: Chief
Warranty: 3 Year
Port Size: SAE 6
Rod Diameter: 2-3/4 in.
Application: For use in double or single acting hydraulic applications.
Material: Steel
Maximum Operating Pressure: 3000 PSI
Manufacturer Part Number 288612
Chief LD Loader Welded Cylinder, 2 in. Bore x 19.75 Stroke, 1.25 in. Rod Dia. is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Great We are very pleased with the product and quick delivery
Date published: 2019-08-19
  • y_2020, m_7, d_3, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_130779399, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

What are the complete specs?  Pin sizes, open/closed lengths, etc.?

Asked by: JasonB699
Bore = 2" Stroke = 19.75" Rod = 1.25" Retract length = 26.875" Column load = 9,420 lbs Ports = SAE 6 Pin holes = 1.25" Rod end cross tube = 2.75" Base end cross tube = 2.375" Weight = 27 lbs Wall thickness = 0.188"
Answered by: MitchellW
Date published: 2018-10-25
