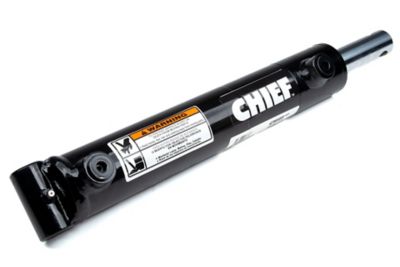

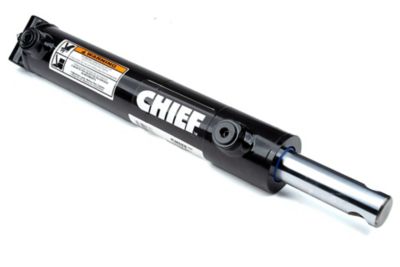

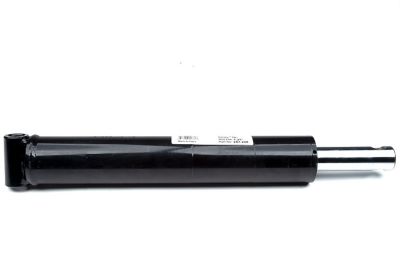

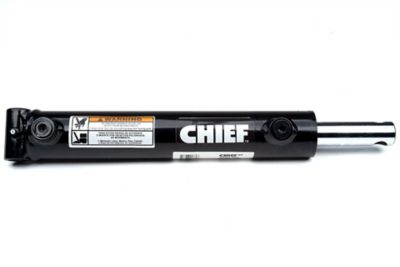

Chief 2.5 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Item # 130765999
Neighbor’s Club Members earn points with purchases.
Item # 130765999
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 2.5 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and means the cylinder is ideally suited for construction and agricultural applications. It will perform well as in farming applications, as well as in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping
- Intended use: double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel

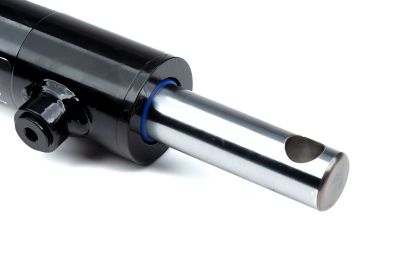

- Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
- Butt plate: steel
- End mounts: steel cross-tubes with grease zerk
- Spacer tube: steel on 48 in. stroke and above
- Gland seal: polyurethane U-cup
- Wiper: polyurethane
- Piston seal: 755 Hallite with wear ring(s)
- All other seals are selected and designed for maximum life
- Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
- 3,000 PSI operating range on the welded hydraulic cylinder
- Measures 16 in. retracted and 24 in. extended
- SAE O-ring ports
- Black paint finish
- Suitable for a variety of applications
- Made in the USA
- Column load: 14,720 lb.
- Pin diameter of 0.75 in. and rod diameter of 1.375 in.
- 3 year limited warranty
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 24 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14,720 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.125 in. |
| Product Length | 8 in. |
| Product Weight | 18 lb. |
| Product Width | 3 in. |
| Retracted Length | 16 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 287229 |
