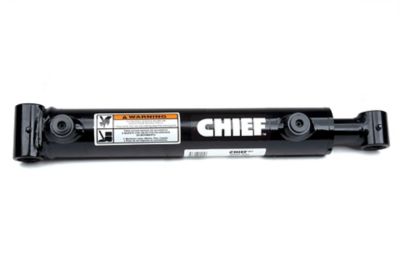

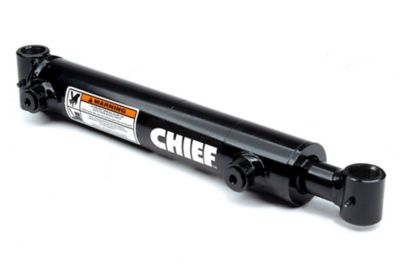

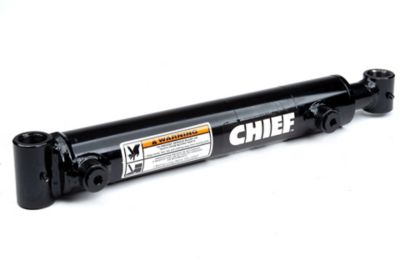

Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter
Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter
Item # 1307486
$429.99
Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter
Item # 1307486
$429.99
The Chief 4 in. Bore x 24 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Welded hydraulic cylinder is intended to be used in double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt plate: steel

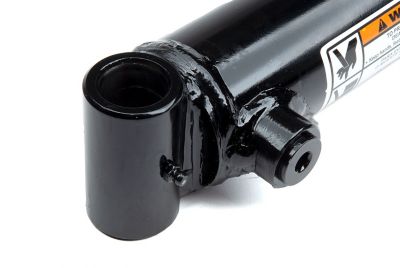

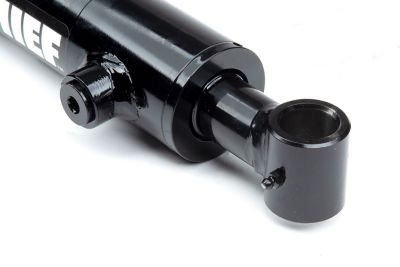

- End mounts: steel cross-tubes with grease zerk
- Spacer tube: steel on 48 in. stroke and above
- Gland seal: polyurethane U-cup
- Wiper: polyurethane
- Piston seal: 755 Hallite with wear ring(s)
- All other seals are selected and designed for maximum life
- 3 year warranty included with the hydraulic cylinder
- Measures 33 in. retracted and 57 in. extended
- Column load: 37,690 lb.
- Pin diameter of 1.25 in. and rod diameter of 2.25 in
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 24 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 37,690 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1-1/4 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 4.625 in. |
| Product Length | 9 in. |
| Product Weight | 70 lb. |
| Product Width | 2 in. |
| Retracted Length | 33 in. |
| Rod Diameter | 2-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 24 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 212767 |
