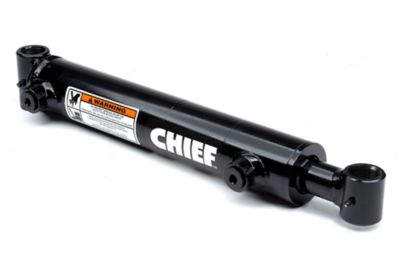

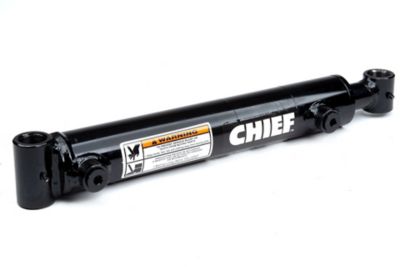

Chief WT Welded Cylinder, 2 in. Bore x 24 in. Stroke, 1.25 in. Rod Dia.

SKU: 130743299
Chief WT Welded Cylinder, 2 in. Bore x 24 in. Stroke, 1.25 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Quantity


5450 mount zion rd
frederick, MD 21703
(301) 473-5751
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Chief WT Welded Cylinder with 2 in. Bore x 24 in. Stroke and 1.25 in. Rod Dia. is a high-quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the Chief WT has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

  • Intended Use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt Plate: steel
  • End Mounts: steel cross-tubes with grease zerk
  • Spacer Tube: steel on 48 in. stroke and above
  • Gland Seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston Seal: 755 Hallite with wear ring(s)
  • All Other Seals: selected and designed for maximum life

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Bore Diameter: 2 in.
Type: Welded Hydraulic Cylinder
Warranty: 3 Year
Package Quantity: 1
Pin Diameter: 1 in.
Brand: Chief
Material: Steel
Special Feature: Welded crosstube
Port Size: SAE 8
Rod Diameter: 1-1/4 in.
Maximum Weight Capacity: 9420 lb.
Maximum Operating Pressure: 3000 PSI
Application: For use in double or single acting hydraulic applications.
Manufacturer Part Number 212683

 What is the closed center-of-pin to center-of-pin length?

Asked by: Unhappy17
7 inches. We have included a link to the technical data sheet for this product below: https://www.baileyhydraulics.com/pdf/Chief_WT.pdf
Answered by: MatthewL
Date published: 2019-09-10

What are the widths for the top and bottom mounting locations where the 1" pin slides through?

Asked by: Texag
You can get the most accurate answer by contacting the vendor Bailey Hydraulics at 1-800-800-1810.
Answered by: richardm
Date published: 2019-11-15
