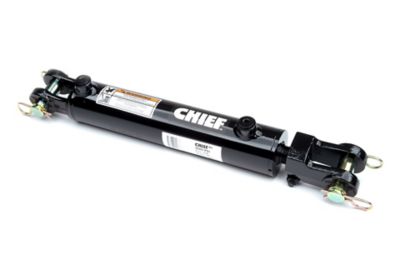

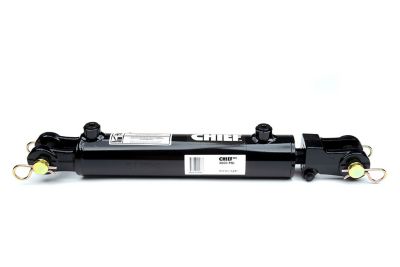

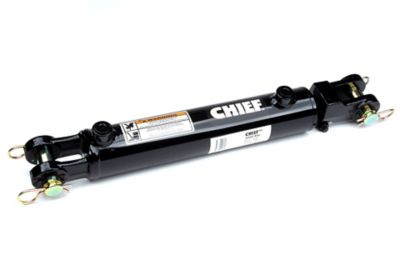

Chief WC Welded Cylinder, 3 in. Bore x 4 in. Stroke, 1.5 in. Rod Dia.

SKU # 130759099
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options

Item Information

The Chief WC Welded Cylinder with 3 in. Bore x 4 in. Stroke and 1.5 in. Rod Dia. is a high-quality welded cylinder with a strong forged steel base. The new Chief WC model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. The Chief WC provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2 in. to ensure greater swing radius and Maximum flexibility.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: Hard chrome-plated

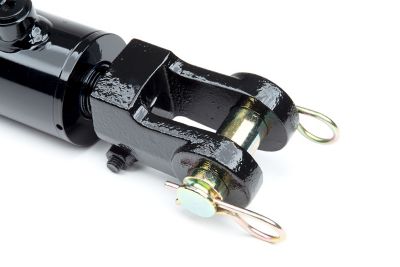

  • End Mounts: ductile iron female clevises with pins and clips included
  • Tube Seals: Buna O-ring
  • Rod Seal: deep polypak with B-lip design
  • Rod Wiper: urethane, snap-in
  • Piston Seal: Hallite 755 for prolonged wear resistance with wear ring
  • All Seals: manufactured to US specifications

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Bore Diameter: 3 in.
Brand: Chief
Includes: Pins and clips
Material: Steel
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 21200 lb.
Package Quantity: 1
Pin Diameter: 1 in.
Port Size: SAE 8
Product Type: Hydraulic Cylinders
Product Weight: 21 lb.
Rod Diameter: 1-1/2 in.
Special Feature: Welded cylinder with clevis mounts
Type: Welded Hydraulic Cylinder
Warranty: 3 Year
Manufacturer Part Number 287029
