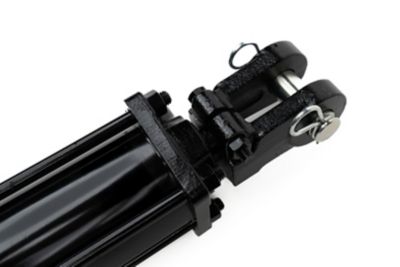

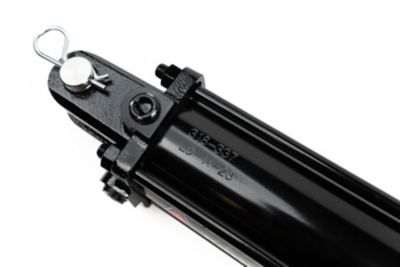

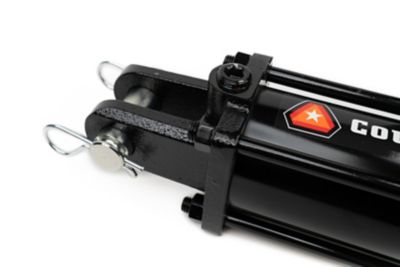

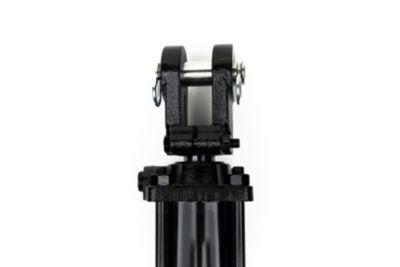

CountyLine Tie-Rod Cylinder, 2.5 in. Bore x 24 in. Stroke - 1.125 in. Rod. Dia.

SKU # 126563799
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

This CountyLine Tie-Rod Cylinder was originally designed for rugged agricultural applications, making it well suited to perform in demanding applications in any industry. This cylinder provides value pricing without sacrificing quality. Each cylinder undergoes rigorous testing that exceeds industry standards and ensures maximum reliability and performance. Painted black.

  • Piston: Ductile iron
  • Gland: Ductile iron, drilled oil passages
  • Tube: Precision honed steel
  • Rod: Hard chrome plated
  • End Mounts: Ductile iron female clevises with pins and clips included
  • Tube Seals: Buna O-ring
  • Rod Seal: Deep polypak with B lip design
  • Rod Wiper: Urethane, snap-in
  • Piston Seal: Hallite 755 for prolonged wear resistance with wear ring
  • Ports: NPT

Warning: To prevent serious injury or death from moving parts, keep hands, feet, hair and clothing away from moving parts.

Specification Description
Type: Tie-Rod Hydraulic Cylinder
Maximum Weight Capacity: 5300 lb.
Warranty: 1 Year
Maximum Operating Pressure: 2,500 PSI
Product Length: 40 in.
Bore Diameter: 2-1/2 in.
Product Weight: 34 lb.
Pin Diameter: 1 in.
Material: Steel
Rod Diameter: 1-1/8 in.
Product Type: Hydraulic Cylinders
Package Quantity: 1
Product Width: 8 in.
Application: Double or Single Acting Hydraulic Applications
Brand: CountyLine
Product Height: 8 in.
Includes: Pins and clips
Special Feature: Tie-Rod
Port Size: 3/8 in. NPTF
Manufacturer Part Number 318325

Why are there 2 ports on one end .which port is inlet & outlet

Asked by: For crying out load
The two ports on the base end allow for alternate plumbing. Only one is used at a time on that end.
Answered by: ErlindaC
Date published: 2018-06-19

Is there a modification needed to switch from double action to single action and visa versa?

Asked by: TSCcustomer2
It isn’t recommended to use these cylinders in a single-acting application, but they could use a brass breather vent. It could possibly leak. This is a quick fix, but we would suggest a custom cylinder for better performance.
Answered by: ErlindaC
Date published: 2018-06-27

will this act as a 2way hydraulic?

Asked by: blainsharp1
This is a double-acting cylinder.
Answered by: ErlindaC
Date published: 2018-06-01
