Looking for small bore hydraulic cylinders? The Chief 1.5 in. Bore x 12 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Ideal for construction, agricultural and other applications and a great replacement hydraulic cylinder
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End mounts: cross-tubes
- Tube seal: Buna O-ring with polytemp hytrel back-up
- Rod seal: polyurethane U-cup
- Rod wiper: polyurethane, snap-in
- Piston seal: 755 with wear rings, (2 each) wear bearings
- All seals are manufactured to US specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Packaging: individually poly bagged welded hydraulic cylinders
- Small bore hydraulic cylinder measures 20 in. retracted and 32 in. extended
- 3,000 PSI operating range
- Column load: 5,300 lb.
- Pin diameter of 0.75 in. and rod diameter of 1 in.
- 3 year warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 1.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Cylinder Size | 0 N/A |
| Extended Length | 32 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 5,300 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 0.75 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 1 in. |
| Product Length | 8 in. |
| Product Weight | 12 lb. |
| Product Width | 2 in. |
| Retracted Length | 20 in. |
| Rod Diameter | 2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 12 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 288600 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: Can you vent one end of this and use it as a single acting cylinder
a year ago1 Answer
- A: Yes, you can do that. Find a breather vent to fit (237256), and and it will work.a year agoHelpful?
Q: would these work for a mini portable backhoe
2 years ago1 Answer
- A: Small bore hydraulic cylinder measures 20 in. retracted and 32 in. extended 3,000 PSI operating range Column load: 5,300 lb. Pin diameter of 0.75 in. and rod diameter of 1 in.2 years agoHelpful?
Q: Will this work for a plow duel acting 13” cen to cen to left and 19” to right
2 years ago1 Answer
- A: The product description states that this is: Small bore hydraulic cylinder measures 20 in. retracted and 32 in. extended We suggest contacting the manufacturer to see if this is the best product for what your Plow, or if they can advise on something better. : baileyhydraulics.com2 years agoHelpful?
Q: what is the retracted length and extended length from center to center of pin bores also what size are the pin bores?
5 years ago1 Answer
- A: The retracted length center of pin to center of pin is 20” The extended length center of pin to center of pin is 32” Pin hole diameter is .75”5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: Can you vent one end of this and use it as a single acting cylinder
a year ago1 Answer
- A: Yes, you can do that. Find a breather vent to fit (237256), and and it will work.a year agoHelpful?
Q: would these work for a mini portable backhoe
2 years ago1 Answer
- A: Small bore hydraulic cylinder measures 20 in. retracted and 32 in. extended 3,000 PSI operating range Column load: 5,300 lb. Pin diameter of 0.75 in. and rod diameter of 1 in.2 years agoHelpful?
Q: Will this work for a plow duel acting 13” cen to cen to left and 19” to right
2 years ago1 Answer
- A: The product description states that this is: Small bore hydraulic cylinder measures 20 in. retracted and 32 in. extended We suggest contacting the manufacturer to see if this is the best product for what your Plow, or if they can advise on something better. : baileyhydraulics.com2 years agoHelpful?
Q: what is the retracted length and extended length from center to center of pin bores also what size are the pin bores?
5 years ago1 Answer
- A: The retracted length center of pin to center of pin is 20” The extended length center of pin to center of pin is 32” Pin hole diameter is .75”5 years agoHelpful?
Similar Items
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
Items You May Like
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Reviews
- performance
- price
- purchase
- small
- warranty
1 to 3 of 6 Reviews .
1 – 3 of 6 Reviews
Most Recent
Michigan
Reviews 9
5 out of 5 stars.
Great buy
2 years ago

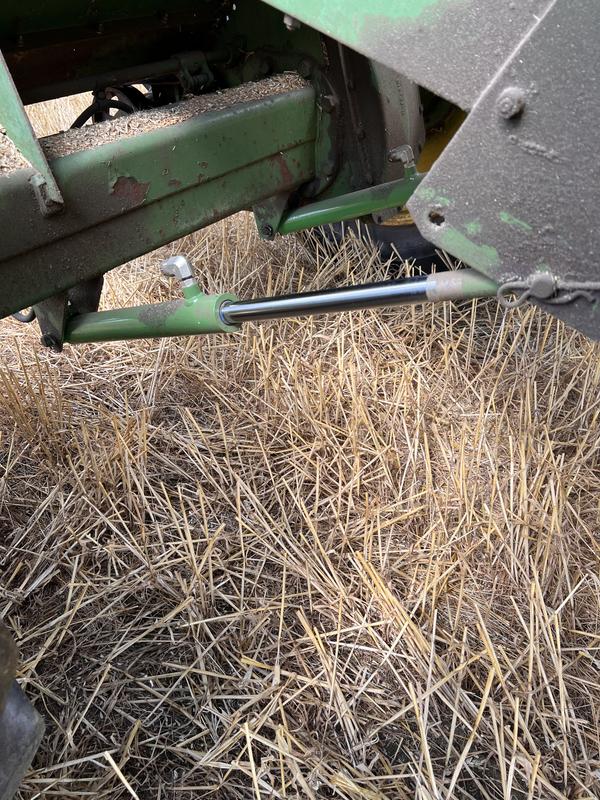

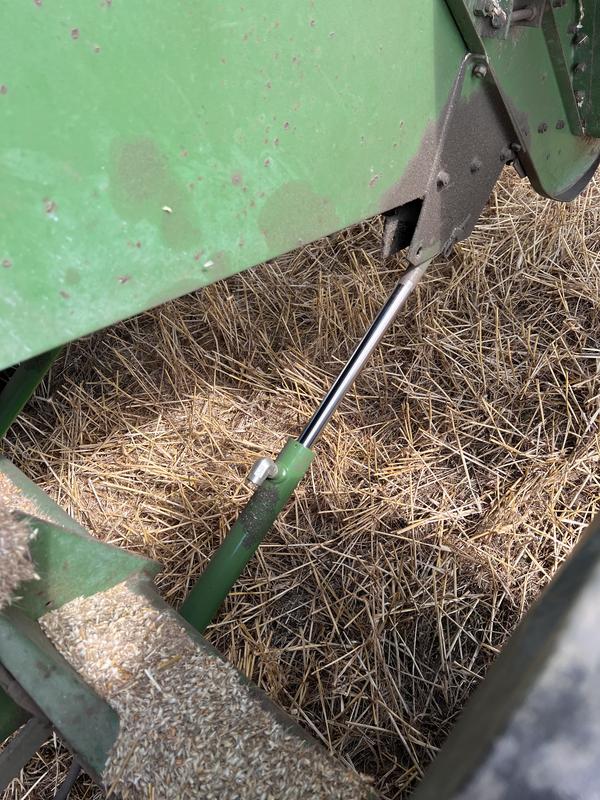

Used these to replace the lift cylinders on a John Deere 40 combine. Perfect fit and function. Just used a vent to make these a single acting cylinder. Price was very fair. Cheaper than manufacture even.
SweepstakesYes
Yes, I recommend this product.
Okeechobee Florida
Review 1
5 out of 5 stars.
Hydraulic cyld tilt
2 years ago
Reasonable priced hydraulic cyld. Great delivery time. Cheaper to purchase new than rebuild old one.
SweepstakesYes
Yes, I recommend this product.
Doug
Pickens, SC
Review 1
5 out of 5 stars.
Excellent replacement for my John Deere 40 Loader
4 years ago
Purchased the loader hydraulic cylinders for the bucket of my John Deere 40 Loader. They perform just as well and a fraction of the cost of a new John Deere cylinder. They are actually only slightly more than rebuilding the cylinders. Although the bore is slightly smaller, cannot tell a difference in performance of the bucket. The new Chief cylinders have been used more than the rebuilt ones I had on the tractor (that started leaking) and have no issues so far. Even if they did, they have a 2 year warranty. I already picked out the Chief cylinders to replace my boom cylinders when they start leaking. The boom ones have the same bore as the old.
