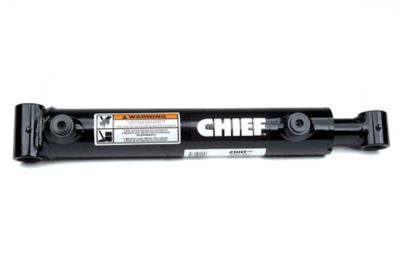

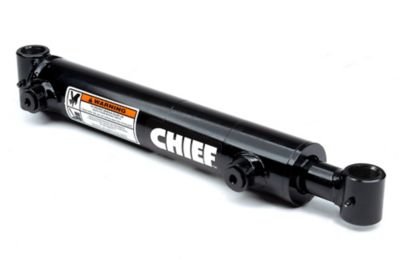

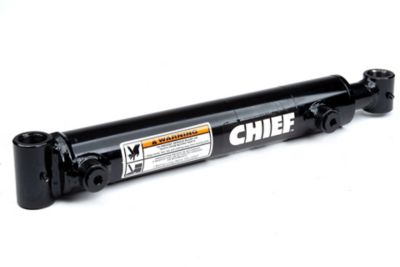

Chief 4 in. Bore x 60 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter
Chief 4 in. Bore x 60 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter
Item # 1307494
$679.99
Chief 4 in. Bore x 60 in. Stroke WT Welded Cylinder, 2.25 in. Rod Diameter
Item # 1307494
$679.99
The Chief 4 in. Bore x 60 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.
- Welded cylinder is intended to be used in double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt plate: steel
- End mounts: steel cross-tubes with grease zerk
- Spacer tube: steel on 48 in. stroke and above
- Gland seal: polyurethane U-cup
- Wiper: polyurethane
- Piston seal: 755 Hallite with wear ring(s)
- All other seals are selected and designed for maximum life
- Measures 73 in. retracted and 133 in. extended
- Column load: 15,090 lb.
- Pin diameter of 1.25 in. and rod diameter of 2.25 in.
- 3 year warranty included on the hydraulic cylinder
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Extended Length | 60 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 15,090 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1-1/4 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 163.14 lb. |
| Product Width | 0 N/A |
| Retracted Length | 73 in. |
| Rod Diameter | 2-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 60 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 212775 |
