Chief 1.75 in. Bore x 18 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Item # 130778799
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 130778799
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Looking for small bore hydraulic cylinders? The Chief 1.75 in. Bore x 18 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End mounts: cross-tubes
- Tube seal: Buna O-ring with polytemp hytrel back-up
- Rod seal: polyurethane U-cup
- Rod wiper: polyurethane, snap-in
- Piston seal: 755 with wear rings, (2 each) wear bearings
- All seals: manufactured to USA specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Packaging: individually poly bagged welded hydraulic cylinders
- Small bore hydraulic cylinder measures 27.25 in. retracted and 45.25 in. extended
- 3,000 PSI operating range
- Column load: 3,340 lb.
- Pin diameter of 1 in. and rod diameter of 1 in.
- 3 year warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 1.75 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Cylinder Size | 0 N/A |
| Extended Length | 45.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 5,160 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 1 in. |
| Product Length | 9.25 in. |
| Product Weight | 34 lb. |
| Product Width | 3 in. |
| Retracted Length | 27.25 in. |
| Rod Diameter | 3 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 18 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 288606 |
Q: in the listing it states that the rod diamater is 3". but i belive that its actually 1".... is that correct?
5 years ago- A: Rod diameter is 1"5 years agoHelpful?
Q&As
Q: in the listing it states that the rod diamater is 3". but i belive that its actually 1".... is that correct?
5 years ago- A: Rod diameter is 1"5 years agoHelpful?
Similar Items
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
Items You May Like
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Customers Also Bought
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
Reviews
- connections
- information
- performance
- price
- purchase
- refund
- returns
- size

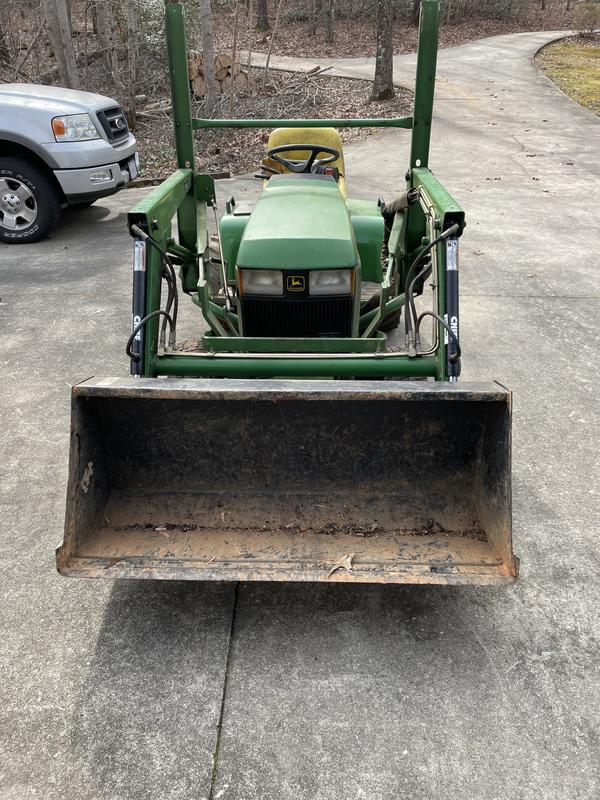

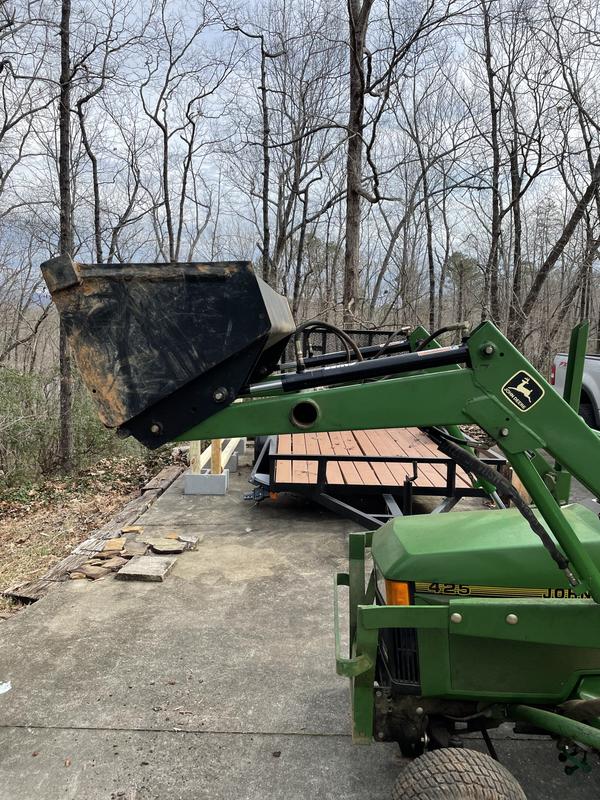

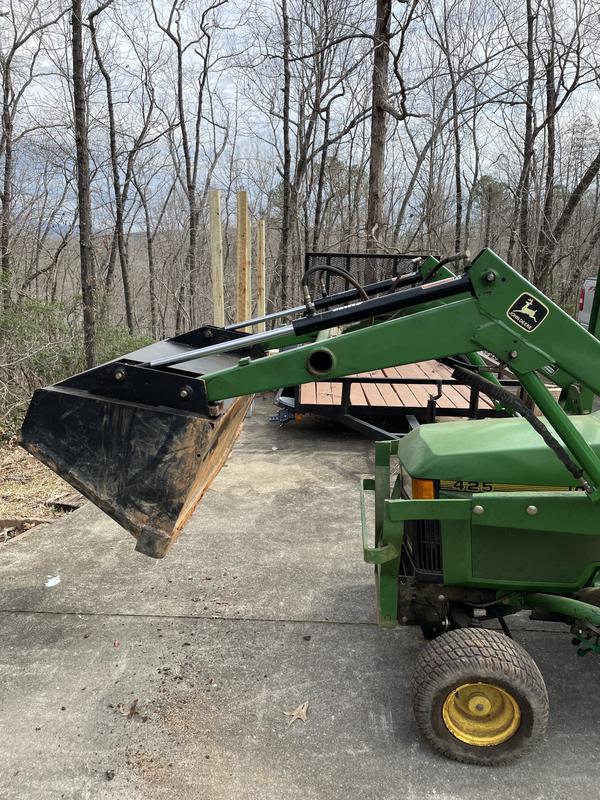

loader hydraulic cylinders
