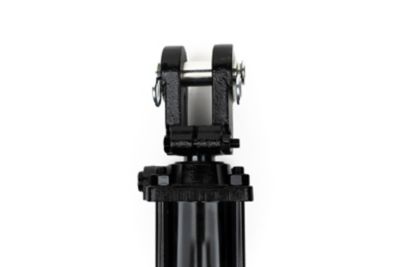

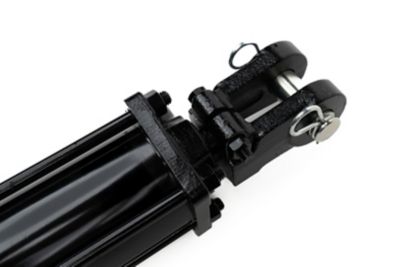

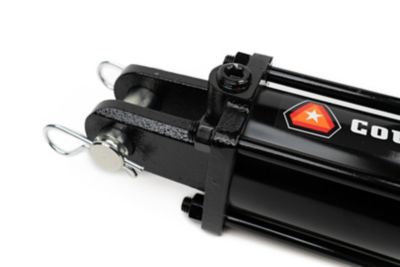

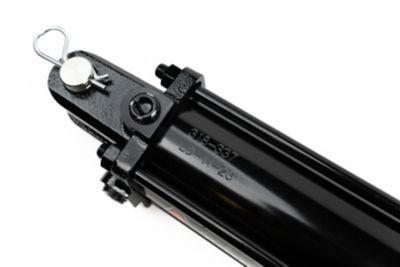

CountyLine 4 in. Bore x 24 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
$399.99
CountyLine 4 in. Bore x 24 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Exclusive
CountyLine 4 in. Bore x 24 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Item # 126563899
Stocked & Ready
$399.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Exclusive
CountyLine 4 in. Bore x 24 in. Stroke Tie Rod Hydraulic Cylinder, 2,500 PSI
Item # 126563899
Stocked & Ready
$399.99
or
or
$34/mo.† suggested payments with 12 Months Financing or earn $19 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The CountyLine 4 in. Bore x 24 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications, making the hydraulic cylinder well suited to perform demanding applications in any industry. This hydraulic cylinder undergoes rigorous testing that exceeds industry standards and ensures maximum reliability and performance.
- Tie rod hydraulic cylinder is made of metal for dependable strength
- Hydraulic cylinder meets and exceeds industry standards to help ensure reliable performance
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Extended Length | 58.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 31,410 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 12 NPT |
| Primary Material | Metal |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 73 lb. |
| Product Width | 0 N/A |
| Retracted Length | 34.25 in. |
| Rod Diameter | 2 in. |
| Stroke Distance | 24 in. |
| Manufacturer Part Number | 318332 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Newest questions
Q: I need a different clevis, what is the thread and size on the rod?
a day ago1 Answer
- A: The rod thread size is 1-1/4-12 UNF.23 hours agoHelpful?
Q: will this work on a 20 ton log splitter
20 days ago1 Answer
- A: This size and style cylinder is commonly used in log splitter applications.16 days agoHelpful?
Q: What is the recommended torque setting for the tie rods? The Internet says 90-100, but the one we bought came at 120ft pounds to loosen it.
a month ago1 Answer
- A: This size cylinder, the tie-rods should be torqued to 96 ft/lbs.a month agoHelpful?
Q: is it faster on the out stroke or the return when you go to a 2" rod instead of a 1"
a month ago1 Answer
- A: A larger rod will make the retract speed faster.a month agoHelpful?
Q: What is the hyd port thread specification? size and type. Bought the LD-04-24 from my local TSC but it does not match my hyd ftg off of my grapple.
3 months ago1 Answer
- A: The hydraulic port for this cylinder is 1/2 inch NPT.3 months agoHelpful?
Q: can this be used in a log splitter
11 months ago1 Answer
- A: This size and style cylinder is commonly used in log splitter applications.10 months agoHelpful?
Q: Can I purchase a seal rebuild kit for this cylinder
2 years ago1 Answer
- A: Yes, The seal kit for this cylinder would be Bailey #2045082 years agoHelpful?
Q: hi, if i take the the clevis end off, how many inches of the rod is exposed when fully retracted. thank you for your answer.
2 years ago1 Answer
- A: There would be about 1" of threads on the rod.2 years agoHelpful?
Q: hi, where is the 58.25 extended measurement taken from ,is it pin to pin ? thank you for your answer...
2 years ago1 Answer
- A: That is correct, center of pin, to center of pin.2 years agoHelpful?
Q: is the clevis end made of cast steel or solid steel?
2 years ago1 Answer
- A: The clevis is cast.2 years agoHelpful?
1 - 10 of 13 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Newest questions
Q: I need a different clevis, what is the thread and size on the rod?
a day ago1 Answer
- A: The rod thread size is 1-1/4-12 UNF.23 hours agoHelpful?
Q: will this work on a 20 ton log splitter
20 days ago1 Answer
- A: This size and style cylinder is commonly used in log splitter applications.16 days agoHelpful?
Q: What is the recommended torque setting for the tie rods? The Internet says 90-100, but the one we bought came at 120ft pounds to loosen it.
a month ago1 Answer
- A: This size cylinder, the tie-rods should be torqued to 96 ft/lbs.a month agoHelpful?
Q: is it faster on the out stroke or the return when you go to a 2" rod instead of a 1"
a month ago1 Answer
- A: A larger rod will make the retract speed faster.a month agoHelpful?
Q: What is the hyd port thread specification? size and type. Bought the LD-04-24 from my local TSC but it does not match my hyd ftg off of my grapple.
3 months ago1 Answer
- A: The hydraulic port for this cylinder is 1/2 inch NPT.3 months agoHelpful?
Q: can this be used in a log splitter
11 months ago1 Answer
- A: This size and style cylinder is commonly used in log splitter applications.10 months agoHelpful?
Q: Can I purchase a seal rebuild kit for this cylinder
2 years ago1 Answer
- A: Yes, The seal kit for this cylinder would be Bailey #2045082 years agoHelpful?
Q: hi, if i take the the clevis end off, how many inches of the rod is exposed when fully retracted. thank you for your answer.
2 years ago1 Answer
- A: There would be about 1" of threads on the rod.2 years agoHelpful?
Q: hi, where is the 58.25 extended measurement taken from ,is it pin to pin ? thank you for your answer...
2 years ago1 Answer
- A: That is correct, center of pin, to center of pin.2 years agoHelpful?
Q: is the clevis end made of cast steel or solid steel?
2 years ago1 Answer
- A: The clevis is cast.2 years agoHelpful?
1 - 10 of 13 Questions
