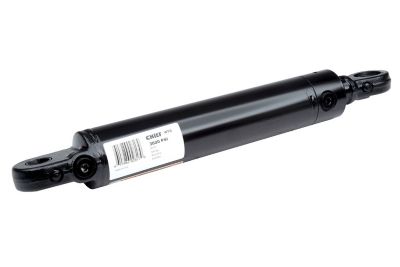

Chief 3 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.5 in. Rod Diameter
Item # 130783699
Neighbor’s Club Members earn points with purchases.
Item # 130783699
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 3 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron, thread-on with wear ring
- Gland: keyed joint, ductile iron
- Tube made from durable precision-honed steel
- Rod is induction-hardened and hard chrome-plated to resist corrosion
- Rod end mount: cast 1045 steel, welded-on
- Spherical bearing with retaining ring for efficiency
- 1/8 NPT grease zerk
- Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
- Tube seal: Buna O-ring with polytemp hytrel backup
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
- All seals are manufactured to U.S. specifications
- Ports: SAE O-ring
- Paint: black; custom colors are available
- 3,600 PSI pressure rating
- Forged steel tang mountings with integral heavy-duty bushings for durability
- 360 degree rotating gland for versatility
- Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
- 3-year limited warranty
- Measures 26 in. retracted and 42 in. extended
- Column load: 25,440 lb.
- Pin diameter of 1 in. and rod diameter of 1.5 in.
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 42 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,600 PSI |
| Maximum Weight Capacity | 25,440 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 1.2 in. |
| Product Length | 10 in. |
| Product Weight | 33 lb. |
| Product Width | 1.3 in. |
| Retracted Length | 26 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 16 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 400662 |
