Chief 1.5 in. Bore x 16 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
$139.99
Chief 1.5 in. Bore x 16 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Chief 1.5 in. Bore x 16 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Item # 130778399
$139.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Chief 1.5 in. Bore x 16 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Item # 130778399
$139.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

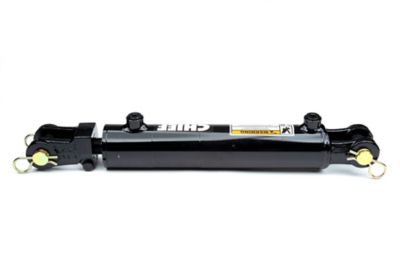

Looking for small bore hydraulic cylinders? The Chief 1.5 in. Bore x 16 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End mounts: cross-tubes
- Tube seal: Buna O-ring with polytemp hytrel back-up
- Rod seal: polyurethane U-cup
- Rod wiper: polyurethane, snap-in
- Piston seal: 755 with wear rings, (2 each) wear bearings
- All seals are manufactured to US specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Packaging: individually poly bagged welded hydraulic cylinders
- Pin diameter of 0.75 in. and rod diameter of 1 in.
- 3,000 PSI operating range
- Small bore hydraulic cylinder measures 24 in. retracted and 40 in. extended
- Column load: 5,300 lb.
- 3 year warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 1.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Cylinder Size | 0 N/A |
| Extended Length | 40 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 5,300 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 0.75 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 2.69 in. |
| Product Length | 8 in. |
| Product Weight | 12.13 lb. |
| Product Width | 2 in. |
| Retracted Length | 24 in. |
| Rod Diameter | 1 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 16 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 288602 |
