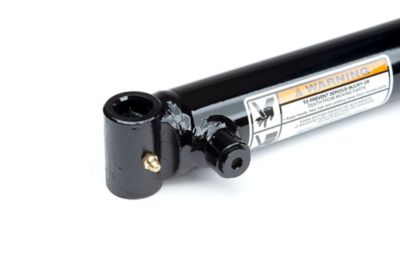

Chief 2 in. Bore x 19.25 in. Stroke LD Loader Welded Cylinder, 1.25 in. Rod Diameter
$189.99
Chief 2 in. Bore x 19.25 in. Stroke LD Loader Welded Cylinder, 1.25 in. Rod Diameter
Chief 2 in. Bore x 19.25 in. Stroke LD Loader Welded Cylinder, 1.25 in. Rod Diameter
Item # 130778899
$189.99
Neighbor’s Club Members earn points with purchases.
Chief 2 in. Bore x 19.25 in. Stroke LD Loader Welded Cylinder, 1.25 in. Rod Diameter
Item # 130778899
$189.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Looking for small bore hydraulic cylinders? The Chief 2 in. Bore x 19.25 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron
- Gland: ductile iron
- Tube material: honed steel
- Rod material: hard chrome-plated
- End mounts: cross-tubes
- Tube seal: Buna O-ring with polytemp hytrel back-up
- Rod seal: polyurethane U-cup
- Rod wiper: polyurethane, snap-in
- Piston seal: 755 with wear rings, (2 each) wear bearings
- All seals are manufactured to USA specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Individually poly bagged for easy transport
- Small bore hydraulic cylinder measures 26.875 in. retracted and 46.125 in. extended
- 3,000 PSI operating range
- Column load: 9,420 lb.
- Pin diameter of 1.25 in. and rod diameter of 1.25 in.
- 3 year warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Cylinder Size | 0 N/A |
| Extended Length | 46.125 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1.25 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 1.25 in. |
| Product Length | 7.625 in. |
| Product Weight | 27 lb. |
| Product Width | 2.76 in. |
| Retracted Length | 26.875 in. |
| Rod Diameter | 2-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 19.25 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 288607 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Will this replace a Kubota LA853 boom cylinder
5 months ago1 Answer
- A: Hello, thank you for your question. We cannot confirm that it is a direct OEM-style replacement for a Kubota LA853 boom cylinder. Boom cylinders often require very specific pin-to-pin lengths, rod end types, and mounting dimensions that must match your loader exactly. For a proper replacement, check your tractor’s OEM parts diagram or consult a Kubota dealer with the exact part number for the boom cylinder you need.5 months agoHelpful?
Q: will this fit a john deere 70 loader
7 months ago1 Answer
- A: The Chief Stroke LD Loader Welded Cylinder is compatible with the John Deere 70 loader bucket tilt application, as it is a direct fit for the original manufacturer specifications.7 months agoHelpful?
Q: Will this fit my Kabota la4683 bucket curl cylinder
a year ago1 Answer
- A: Hi, Yes, it should fit your Kabota.a year agoHelpful?
Q: You are listing this cylinder with a mounting width at the cylinder end of 2.38 and the rod end of 2.75. Is this accurate as they are usually the same. Thanks Jeff
3 years ago1 Answer
- A: Retracted length - 26.875" Extended length - 46.125" Pin holes - 1.25" Width - bore is 2" plus side wall of .188 x 2" = 2.376" (note this does not include the distance the ports extend from the body.)3 years agoHelpful?
Q: Will this fit bush hog front loader it’s on a massy 165
4 years ago1 Answer
- A: We do not have the specifications needed to answer your question. Please contact the manufacturer with your inquiry at 800-800-1810.4 years agoHelpful?
Q: will this fit a 4020 John Deere loader lift cyclilander?
4 years ago1 Answer
- A: We do not have the specifications needed to answer your question. Please contact the manufacturer with your inquiry at 800-800-1810.4 years agoHelpful?
Q: will this fit a Korker 160 lift loader
4 years ago1 Answer
- A: We do not have the specifications needed to answer your question. Please contact the manufacturer with your inquiry at 800-800-1810.4 years agoHelpful?
Q: I need more information like retracted length extended length pin hole size and width if possible.
7 years ago1 Answer
- A: Retracted length - 26.875" Extended length - 46.125" Pin holes - 1.25" Width - bore is 2" plus side wall of .188 x 2" = 2.376" (note this does not include the distance the ports extend from the body.)7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Will this replace a Kubota LA853 boom cylinder
5 months ago1 Answer
- A: Hello, thank you for your question. We cannot confirm that it is a direct OEM-style replacement for a Kubota LA853 boom cylinder. Boom cylinders often require very specific pin-to-pin lengths, rod end types, and mounting dimensions that must match your loader exactly. For a proper replacement, check your tractor’s OEM parts diagram or consult a Kubota dealer with the exact part number for the boom cylinder you need.5 months agoHelpful?
Q: will this fit a john deere 70 loader
7 months ago1 Answer
- A: The Chief Stroke LD Loader Welded Cylinder is compatible with the John Deere 70 loader bucket tilt application, as it is a direct fit for the original manufacturer specifications.7 months agoHelpful?
Q: Will this fit my Kabota la4683 bucket curl cylinder
a year ago1 Answer
- A: Hi, Yes, it should fit your Kabota.a year agoHelpful?
Q: You are listing this cylinder with a mounting width at the cylinder end of 2.38 and the rod end of 2.75. Is this accurate as they are usually the same. Thanks Jeff
3 years ago1 Answer
- A: Retracted length - 26.875" Extended length - 46.125" Pin holes - 1.25" Width - bore is 2" plus side wall of .188 x 2" = 2.376" (note this does not include the distance the ports extend from the body.)3 years agoHelpful?
Q: Will this fit bush hog front loader it’s on a massy 165
4 years ago1 Answer
- A: We do not have the specifications needed to answer your question. Please contact the manufacturer with your inquiry at 800-800-1810.4 years agoHelpful?
Q: will this fit a 4020 John Deere loader lift cyclilander?
4 years ago1 Answer
- A: We do not have the specifications needed to answer your question. Please contact the manufacturer with your inquiry at 800-800-1810.4 years agoHelpful?
Q: will this fit a Korker 160 lift loader
4 years ago1 Answer
- A: We do not have the specifications needed to answer your question. Please contact the manufacturer with your inquiry at 800-800-1810.4 years agoHelpful?
Q: I need more information like retracted length extended length pin hole size and width if possible.
7 years ago1 Answer
- A: Retracted length - 26.875" Extended length - 46.125" Pin holes - 1.25" Width - bore is 2" plus side wall of .188 x 2" = 2.376" (note this does not include the distance the ports extend from the body.)7 years agoHelpful?
Similar Items
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
-
Items You May Like
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Customers Also Bought
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Reviews
- price
- purchase
- performance
- small
- warranty
- width
1 to 4 of 10 Reviews .
1 – 4 of 10 Reviews
Most Recent
Castroville Ca
Review 1
1 out of 5 stars.
I have no idea how good it is
8 months ago
I never received it, shipping co delivered to wrong address, no help from customer support at this time
No, I do not recommend this product.
NC
Reviews 4
5 out of 5 stars.
Need cylinders? These are great!!!
4 years ago
Used these to replace the.ones on my front end loader on my tractor. Work great.
Yes, I recommend this product.
Doug
Pickens, SC
Review 1
5 out of 5 stars.
Excellent replacement for my John Deere 40 Loader
4 years ago
Purchased the loader hydraulic cylinders for the bucket of my John Deere 40 Loader. They perform just as well and a fraction of the cost of a new John Deere cylinder. They are actually only slightly more than rebuilding the cylinders. Although the bore is slightly smaller, cannot tell a difference in performance of the bucket. The new Chief cylinders have been used more than the rebuilt ones I had on the tractor (that started leaking) and have no issues so far. Even if they did, they have a 2 year warranty. I already picked out the Chief cylinders to replace my boom cylinders when they start leaking. The boom ones have the same bore as the old.
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
Reviews 4
5 out of 5 stars.
Work Great on 235 MF loader with a little fab work
4 years ago
Bought these for a late '80s Massey Ferguson 235 loader on a 240 tractor. This particular loader has 1" pins the cylinders have 1 1/4" holes, I bought 4 bushings at the local Tractor Supply and welded them in cylinder to fit the loader pins. The old cylinders had 1/2" ORB fittings and the Chief cylinders have 3/8" ORB, instead of having new hoses made up and throwing away good hoses I found 4 90deg elbow fittings 3/8" male ORB and 1/2" female ORB to make it work. I know this sounds like a lot of trouble to make this work but you can save a lot of money if you can weld these bushings in or have someone do it for you.
Yes, I recommend this product.
