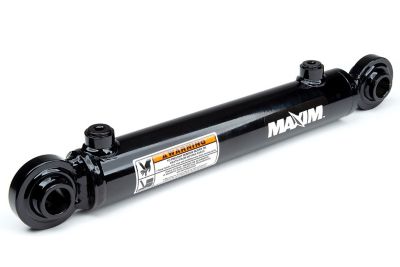

Maxim WSB Swivel Ball Welded Cylinder, 3 in. Bore x 10 in. Stroke, 1.5 in. Rod Dia.

SKU # 130782399
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

The Maxim WSB Swivel Ball Welded Cylinder with 3 in. Bore x 10 in. Stroke and 1.5 in. Rod Dia. features swivel ball mounts, which make it great for use on compact equipment. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. The Maxim WSB is available in bore sizes from 1 in. to 3 in. and strokes from 4 in. to 36 in.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Piston Lock Nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube Seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod Seal: U-cup
  • Wiper: polyurethane
  • End Mounts: spherical
  • All Seals: manufactured to US specifications
  • Ports: O-ring boss
  • Paint: black

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Rod Diameter: 3-1/8 in.
Port Size: SAE 8
Includes: Pins and clips
Material: Steel
Product Weight: 24 lb.
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 21200 lb.
Bore Diameter: 2 in.
Type: Welded Hydraulic Cylinder
Product Type: Hydraulic Cylinders
Package Quantity: 1
Pin Diameter: 1 in.
Special Feature: Welded cylinder with swivel end ball mounts
Application: For use in double or single acting hydraulic applications.
Warranty: 1 Year
Brand: Maxim
Manufacturer Part Number 400528
