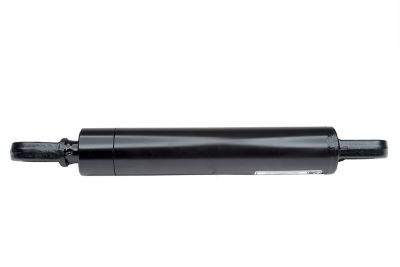

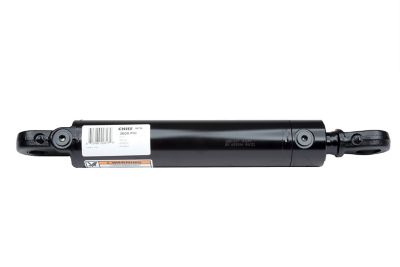

Chief WTG Welded Tang Cylinder, 4 in. Bore x 36 in. Stroke, 2 in. Rod Dia.

SKU # 130784399
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

The Chief WTG Welded Tang Cylinder with 4 in. Bore x 36 in. Stroke and 2 in. Rod Dia. is Chief's newest hydraulic cylinder line and is also one of their most durable cylinders. The WTG is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. The WTG can utilize a spherical ball or steel bushing insert to improve wear life. Tang cylinders are most commonly used in heavy-duty construction equipment.

  • Intended Use: double-acting applications
  • Piston: ductile iron, thread-on with wear ring
  • Gland: keyed joint, ductile iron
  • Tube: precision-honed steel
  • Rod: induction-hardened, hard chrome-plated

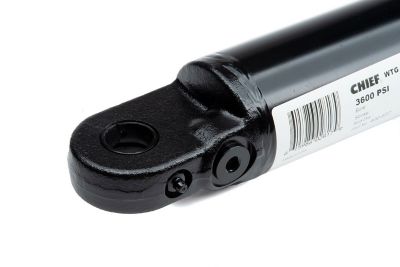

  • Rod End Mount: cast 1045 steel, welded-on
  • Spherical bearing with retaining ring
  • 1/8 NPT grease zerk
  • Base End Mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
  • Tube Seal: Buna O-ring with polytemp hytrel backup
  • Rod Seal: deep polypak with B-lip design
  • Rod Wiper: urethane, snap-in
  • Piston Seals: Hallite 755 for prolonged wear resistance, with wear ring
  • All Seals: manufactured to U.S. specifications
  • Ports: SAE O-ring
  • Paint: black; custom colors are available

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Rod Diameter: 2 in.
Type: Welded Hydraulic Cylinder
Maximum Weight Capacity: 26100 lb.
Includes: Pins and clips
Bore Diameter: 3 in.
Package Quantity: 1
Pin Diameter: 1-1/4 in.
Product Type: Hydraulic Cylinders
Material: Steel
Brand: Chief
Maximum Operating Pressure: 3600 PSI
Special Feature: Welded cylinder with tang mounts
Product Weight: 99 lb.
Port Size: SAE 8
Warranty: 3 Year
Manufacturer Part Number 400711
