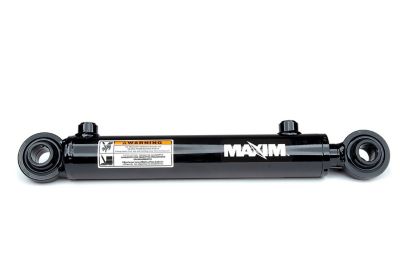

The Maxim 3 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Made for versatility, this hydraulic cylinder is designed for use in any double-acting applications.

  • Intended use of swivel ball hydraulic cylinder: double-acting applications
  • Piston: ductile iron
  • Piston lock nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod seal: U-cup
  • Wiper: polyurethane

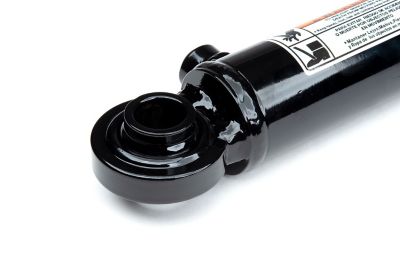

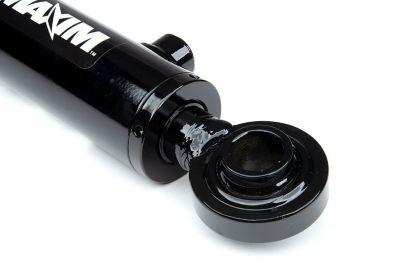

  • End mounts: spherical
  • All seals are manufactured to US specifications
  • Ports: O-ring boss
  • Max PSI: 3,000
  • Column load: 21,200 lb.
  • Hydraulic cylinder measures 16.25 in. retracted and 24.25 in. extended
  • Pin diameter of 1 in. and rod diameter of 1.5 in.
  • 1 year warranty

Specification Description
Brand Maxim
Country of Origin Imported
Bore Diameter 3 in.
Brand Compatibility Universal
Compatibility Universal
Extended Length 36 in.
Hydraulic Cylinder Type Welded
Maximum Operating Pressure 3,000 PSI
Maximum Weight Capacity 21,200 lb.
Model Compatibility Universal
Package Quantity 1
Pin Diameter 1 in.
Port Size SAE 8
Primary Material Steel
Product Height N/A
Product Length N/A
Product Weight 22 lb.
Product Width N/A
Retracted Length 16.25 in.
Rod Diameter 3-1/8 in.
Single/Double Acting Double acting
Stroke Distance 8 in.
Warranty 1 Year
Manufacturer Part Number 400527
