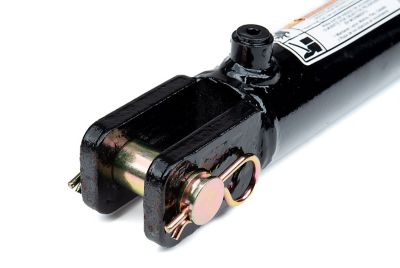

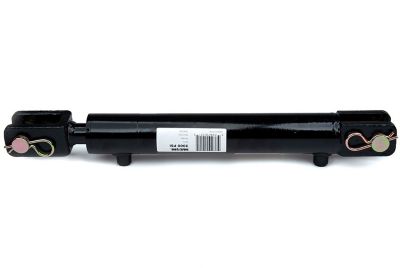

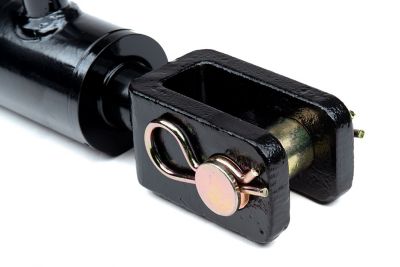

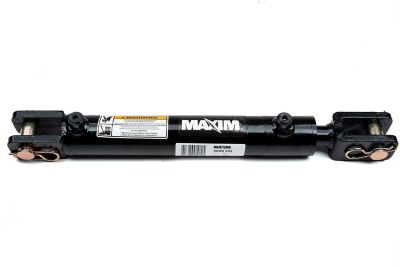

Maxim WC Welded Cylinder, 2 in. Bore x 36 in. Stroke, 1.25 in. Rod Dia.

SKU: 130771399
Maxim WC Welded Cylinder, 2 in. Bore x 36 in. Stroke, 1.25 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Maxim WC Welded Cylinder with 2 in. Bore x 36 in. Stroke and 1.25 in. Rod Dia. is clevis-mounted and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance.

  • Painted black
  • Intended Use: double-acting applications
  • Piston: ductile iron ASTM A536 65-45-12 for excellent life
  • Piston Lock Nut: grade 8, high-tensile zinc-plated
  • Gland: ductile iron ASTM A536 65-45-12
  • Tube: high-tensile cold drawn tube, precision-honed for extended seal life
  • Tube seal: nitrile O-ring with polytemp hytrel back-up
  • Rod: high-tensile ground and polished hard chrome-plated rod
  • Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
  • Wiper: polyurethane
  • End Mounts: cast female clevises with pins and clips included
  • Pin and Pin clip: high-tensile zinc-plated steel
  • Piston ID Seal: O-ring
  • Piston OD seal: Hallite 755 piston seal
  • Ports: SAE O-rings

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Maximum Weight Capacity: 3890 lb.
Pin Diameter: 1 in.
Special Feature: Welded cylinder with clevis ends
Warranty: 1 Year
Type: Welded Hydraulic Cylinder
Bore Diameter: 2 in.
Package Quantity: 1
Maximum Operating Pressure: 3000 PSI
Material: Steel
Product Weight: 41 lb.
Brand: Maxim
Rod Diameter: 1-1/4 in.
Includes: Pins and clips
Port Size: SAE 6
Application: For use in double or single acting hydraulic applications.
Manufacturer Part Number 288412
