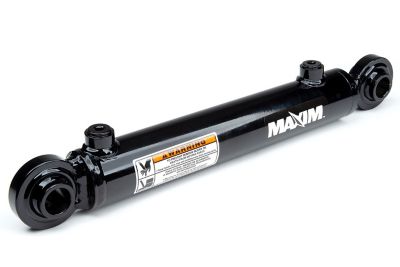

Maxim 2.5 in. Bore x 30 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

Shop all Maxim

Item # 130782099

$259.75

Neighbor’s Club Members earn points with purchases.

Shop all Maxim

Maxim 2.5 in. Bore x 30 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

Item # 130782099

$259.75

$44/mo.^† suggested payments with 6 Months Financing or earn $12 in Rewards⁺ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor’s Club Members earn points with purchases.

The Maxim 2.5 in. Bore x 30 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder features swivel ball mounts, which make it great for use on compact equipment. The swivel ball hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. This 2.5 in. bore hydraulic cylinder has 30 in. strokes and is made to last.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Swivel ball hydraulic cylinder intended for double-acting applications
Piston: ductile iron
Piston lock nut: nylock nut
Gland: ductile iron with rod wear band
Steel tube honed or skived for extended seal life
Tube seal: O-ring and backup
Ground and polished hard chrome-plated rod for durability
Rod seal: U-cup
Wiper: polyurethane
End mounts: spherical
All seals are manufactured to US specifications
Ports: O-ring boss
Painted black
2.5 in. bore hydraulic cylinder with 30 in. strokes
Swivel ball mounts make the hydraulic cylinder great for use on compact equipment
Pin diameter: 1 in.
Rod diameter: 1.5 in.
Measures 37.5 in. retracted and 67.5 in. extended
1 year warranty
Column load: 14,720 lb.
Weight: 41 lb.
Hydraulic cylinder with 2.5 in. bore and 30 in. stroke length

Brand	Maxim
Country of Origin	Imported
Bore Diameter	1.5 in.
Brand Compatibility	Universal
Compatibility	Universal
Extended Length	67.5 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	14,720 lb.
Model Compatibility	Universal
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	0 N/A
Product Length	0 N/A
Product Weight	41 lb.
Product Width	0 N/A
Retracted Length	37.5 in.
Rod Diameter	2-3/4 in.
Single/Double Acting	Double acting
Stroke Distance	30 in.
Warranty	1 Year
Manufacturer Part Number	400525

Q&As

1 - 2 of 2 Questions

Q: What size are the eyes of the swivel?

5 years ago

1 Answer

A: The center bushings of the swivel mounts are: 1.00” (+0.1) I.D. / 1.39” O.D
5 years ago
Helpful?

Q: I am reviewing p/n 400525 (sku 130782099) which is listed as a 2.5" bore 30" stroke hydraulic cylinder. When selecting the product details, it shows a rod diameter of 2.75 inches. 2.75" rod will not fit in a 2.5" bore. There's also a 1.5" bore noted. Help

Anonymous5 years ago

1 Answer

A: This product is a 2.5 inch bore hydraulic cylinder with 30 inch strokes.
5 years ago
Helpful?

Items You May Like

Reviews

Rating Snapshot

Select a row below to filter reviews.

2 reviews with 5 stars.

0 reviews with 4 stars.

1 review with 3 stars.

0 reviews with 2 stars.

0 reviews with 1 star.

Overall Rating

4.3

2 out of 3 (67%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

purchase
installation
price
quality

1 to 3 of 3 Reviews .

1 – 3 of 3 Reviews

Good

Review 1

5 out of 5 stars.

100% what I needed.

2 years ago

Ordering online was very easy. Shipping was fast. Definitely will order again

Yes, I recommend this product.

Originally posted on baileyhydraulics.com

Heavy Metal Fabrication

Florida

Review 1

5 out of 5 stars.

Great cylinders

3 years ago

We buy probably 20 or more of these hydraulic cylinder’s a yr. Very good quality and priced right👍🏻

Yes, I recommend this product.

Originally posted on baileyhydraulics.com

Gary

Cleveland, ohio

Review 1

3 out of 5 stars.

Welded cylinder

4 years ago

I have 3 of these cylinders, everyone has leaked after 25 or 30 hours. I have installed new seals in all of them, no problems since resealed.

No, I do not recommend this product.

Originally posted on baileyhydraulics.com
