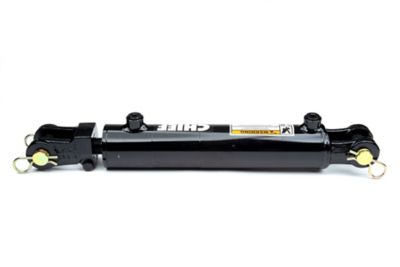

Chief 1.5 in. Bore x 10 in. Stroke WC Welded Cylinder, 0.75 in. Rod Diameter
Item # 1307630
Item # 1307630
The Chief 1.5 in. Bore x 10 in. Stroke WC Welded Cylinder is a high-quality welded cylinder with a strong forged steel base. This hydraulic cylinder has a screw-in gland that reduces its profile by replacing the collar style gland. It will provide added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended use: double-acting applications
- Piston: ductile iron
- Gland: ductile iron
- Tube: precision-honed steel
- Rod is hard chrome-plated for durability
- End mounts: ductile iron female clevises with pins and clips included
- Tube seals: buna O-ring
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seal: Hallite 755 for prolonged wear resistance with wear ring
- All seals are manufactured to US specifications
- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Available in bore sizes from 1.5 in. to 4 in. and strokes from 4 in. to 48 in.
- WC welded hydraulic cylinders have a 3,000 PSI operating range
- 3-year limited warranty
- Black paint finish for a simple, attractive look
- Individually poly bagged farm hydraulic cylinder is made to last
- Welded cylinder handles up to 3,000 PSI
- Welded cylinder has a retracted length of 20.25 in. and extended length of 30.25 in.
- Column load: 3,740 lb.
- Weight: 10.36 lb.
- Has a screw-in gland that reduces its profile
- Provides added strength to agricultural implements, compact construction and transportation equipment
- Base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 1.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 30.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 3,740 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 0-3/4 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 1.85 in. |
| Product Length | 10.25 in. |
| Product Weight | 10.36 lb. |
| Product Width | 1.7 in. |
| Retracted Length | 20.25 in. |
| Rod Diameter | 0-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 10 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 287072 |
