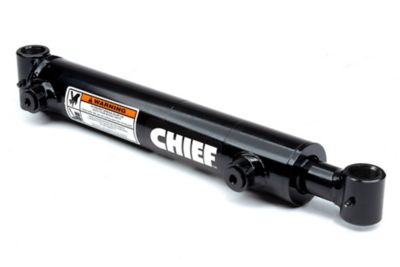

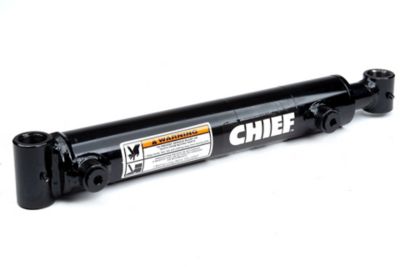

Chief WT Welded Cylinder, 3 in. Bore x 14 in. Stroke, 1.75 in. Rod Dia.

SKU: 130746299
Chief WT Welded Cylinder, 3 in. Bore x 14 in. Stroke, 1.75 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Chief WT Welded Cylinder with 3 in. Bore x 14 in. Stroke and 1.75 in. Rod Dia. is a high-quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the Chief WT has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

  • Intended Use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt Plate: steel
  • End Mounts: steel cross-tubes with grease zerk
  • Spacer Tube: steel on 48 in. stroke and above
  • Gland Seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston Seal: 755 Hallite with wear ring(s)
  • All Other Seals: selected and designed for maximum life

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Package Quantity: 1
Type: Welded Hydraulic Cylinder
Maximum Operating Pressure: 3000 PSI
Material: Steel
Brand: Chief
Rod Diameter: 1-3/4 in.
Maximum Weight Capacity: 21200 lb.
Special Feature: Welded crosstube
Port Size: SAE 8
Warranty: 3 Year
Pin Diameter: 1 in.
Bore Diameter: 3 in.
Manufacturer Part Number 212731

from the pin centers, what is collapsed and extended measurements

Asked by: ag24
According to the manufacturer, the retracted length of the cylinder is 22 " (center of pin to center of pin) and the extended is 36 ". It has a 1" pin diameter and column load of 21,000 pounds.
Answered by: richardm
Date published: 2019-08-22
