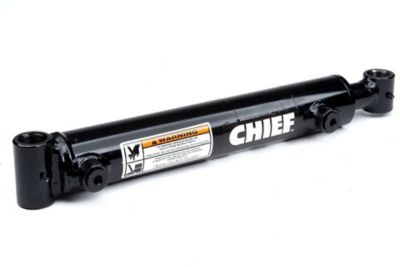

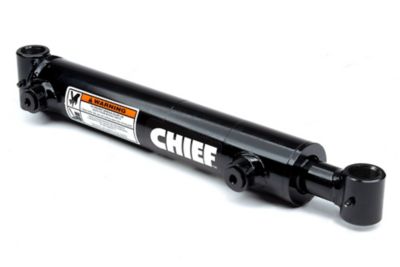

Chief WT Welded Cylinder, 2.5 in. Bore x 36 in. Stroke, 1.5 in. Rod Dia.

SKU # 130744499
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options

Item Information

The Chief WT Welded Cylinder with 2.5 in. Bore x 36 in. Stroke and 1.5 in. Rod Dia. is a high-quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the Chief WT has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction.

  • Intended Use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt Plate: steel

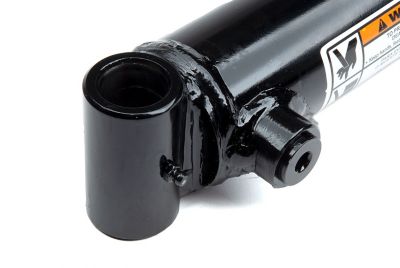

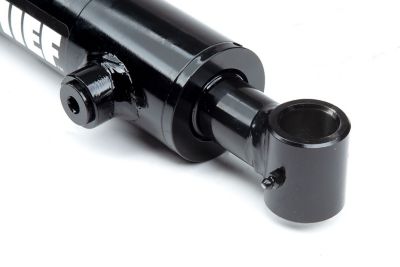

  • End Mounts: steel cross-tubes with grease zerk
  • Spacer Tube: steel on 48 in. stroke and above
  • Gland Seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston Seal: 755 Hallite with wear ring(s)
  • All Other Seals: selected and designed for maximum life

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Bore Diameter: 2-1/2 in.
Brand: Chief
Material: Steel
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 14720 lb.
Package Quantity: 1
Pin Diameter: 1 in.
Port Size: SAE 8
Product Type: Hydraulic Cylinders
Rod Diameter: 1-1/2 in.
Special Feature: Welded crosstube
Type: Welded Hydraulic Cylinder
Warranty: 3 Year
Manufacturer Part Number 212699
