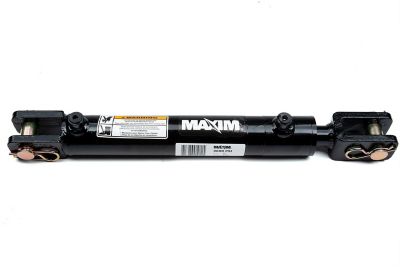

Maxim 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Maxim 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Item # 130774199
$177.37
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Maxim 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder, 1.75 in. Rod Diameter
Item # 130774199
$177.37
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 3.5 in. Bore x 8 in. Stroke WC Welded Cylinder is designed for demanding applications and built to ensure maximum reliability and performance, exceeding the highest standards. This welded hydraulic cylinder is rated for 3,000 PSI, clevis-mounted and comes standard in black for powerful and easy use. Give us a call to order your welded cylinder in custom colors.
- Intended to be used in double-acting applications
- Ductile iron ASTM A536 65-45-12 piston and gland for excellent life
- Grade 8, high-tensile zinc-plated piston lock nut
- Comes in a painted black welded cylinder color for a sleek look
- High-tensile cold drawn tube is precision-honed for extended seal life
- Nitrile O-ring tube seal with polytemp hytrel back-up
- High-tensile ground rod is polished hard chrome-plated for durability
- Standard PolyPak rod seal with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Equipped with a polyurethane wiper for long-lasting use

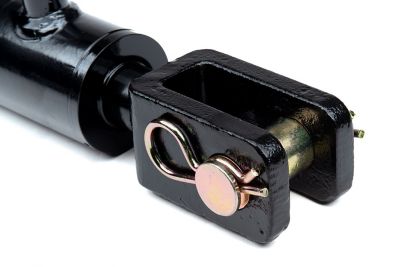

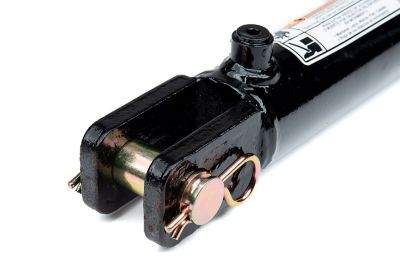

- Cast female clevis end mounts with pins and clips included
- Comes with a high-tensile zinc-plated steel pin and pin clip
- O-ring piston ID seal and hallite 755 piston OD seal
- SAE O-ring ports with an SAE 8 port size for convenience and easy use
- Bore measures 3.5 in.; stroke measures 8 in.; retracted size measures 18.25 in.; pin diameter measures 1 in.; rod diameter measures 1.75 in.; extended length measures 26.25 in.; column load of 28,860 lb.; weighs 34.39 lb.
- Welded cylinder is rated at 3,000 PSI for powerful use
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3.5 in. |
| Brand Compatibility | N/A |
| Compatibility | Universal |
| Extended Length | 26.25 in. |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 28,860 lb. |
| Model Compatibility | 0 N/A |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Metal |
| Product Height | 1.125 in. |
| Product Length | 1.125 in. |
| Product Weight | 34 lb. |
| Product Width | 1.125 in. |
| Retracted Length | 18.25 in. |
| Rod Diameter | 1.75 in. |
| Stroke Distance | 8 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288442 |
