Maxim 3 in. Bore x 4 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Maxim 3 in. Bore x 4 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Item # 130772799
$199.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Maxim 3 in. Bore x 4 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Item # 130772799
$199.99
or
or
$34/mo.† suggested payments with 6 Months Financing or earn $9 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

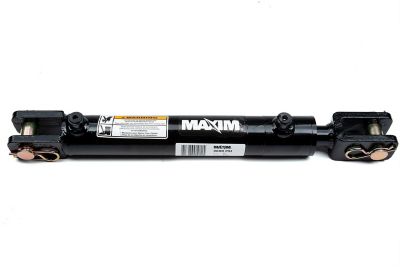

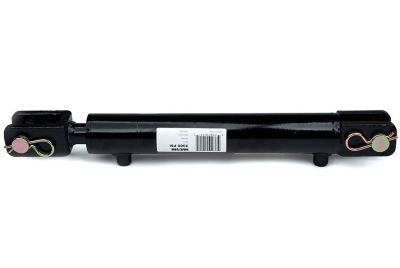

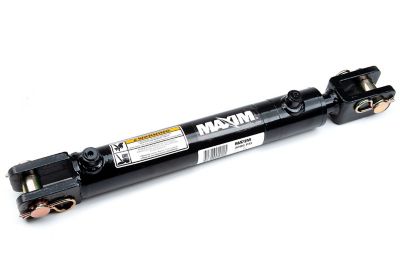

The Maxim 3 in. Bore x 4 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube is precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod for durability
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

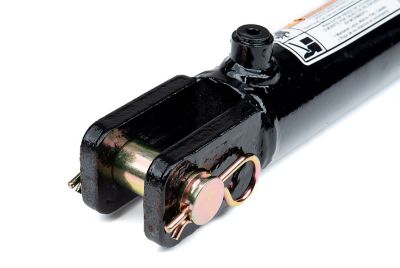

- Cast female clevises with pins and clips are the hydraulic cylinder's end mounts
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Welded hydraulic cylinder has a 3 in. bore and 4 in. stroke length
- Measures 14.25 in. retracted and 18.25 in. extended
- Column load: 21,200 lb.
- Pin diameter of 1 in. and rod diameter of 1.5 in.
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 18.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 21,200 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 24 lb. |
| Product Width | 0 N/A |
| Retracted Length | 14.25 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 4 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288426 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: What is the width at the pin hole on the cylinder itself and what is the widest dimension?
3 years ago1 Answer
- A: Hi! Per the vendor: At the pins that are on the base end of the cylinder, the measurement is 2.13” (outside ear to ear). The outside of the barrel would measure 3.375”. it’s a little wider at the port. With the port, those 2 areas would measure 4.065”. I snipped a portion of a WC drawing. Note that this is a 30” stroke cylinder. That is longer than the questioned cylinder, however, all of the measurements the customer is looking for are the same between the 2 cylinders. The wall measurement isn’t included in the below drawing. It is .1875 and needs to added to the bore for complete cylinder OD.3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: What is the width at the pin hole on the cylinder itself and what is the widest dimension?
3 years ago1 Answer
- A: Hi! Per the vendor: At the pins that are on the base end of the cylinder, the measurement is 2.13” (outside ear to ear). The outside of the barrel would measure 3.375”. it’s a little wider at the port. With the port, those 2 areas would measure 4.065”. I snipped a portion of a WC drawing. Note that this is a 30” stroke cylinder. That is longer than the questioned cylinder, however, all of the measurements the customer is looking for are the same between the 2 cylinders. The wall measurement isn’t included in the below drawing. It is .1875 and needs to added to the bore for complete cylinder OD.3 years agoHelpful?
Similar Items
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Items You May Like
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
Customers Also Bought
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
Reviews
1 to 1 of 1 Review .
1 – 1 of 1 Review
Most Recent
Alex
Alabama
Review 1
5 out of 5 stars.
Wide selection and good customer service
4 years ago
A wide variety of options to choose from. To double check I called the customer service line, and they were extremely helpful. I am a returning customer, and will be back again.
Yes, I recommend this product.
