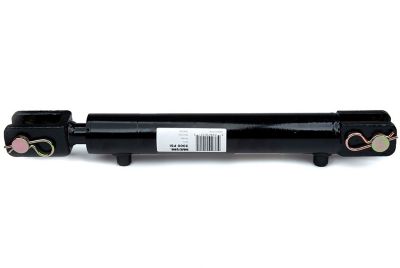

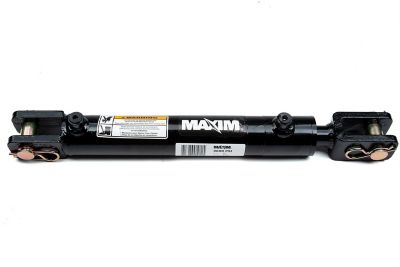

The Maxim 3 in. Bore x 12 in. Stroke WC Welded Hydraulic Cylinder exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Set up is easy because the welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black for simple style
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube is precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod is made to last
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

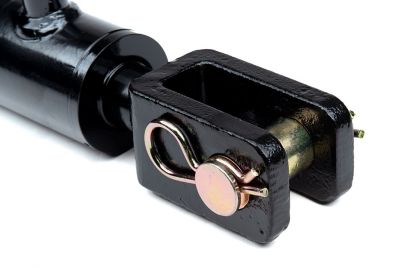

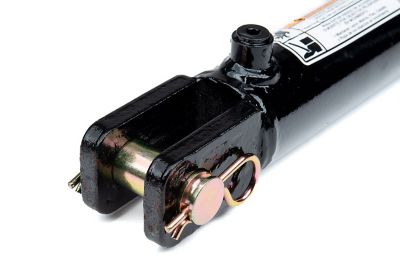

- End mounts: cast female clevises with pins and clips included
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Versatile and long lasting hydraulic cylinder has a 3 in. bore & 12 in. stroke length
- Welded cylinder has a retracted length of 22.25 in. and extended length of 34.25 in.
- Column load: 21,200 lb.
- Weight: 26.9 lb.
- Maximum PSI: 3,000 PSI
- Maximum PSI: 3,000 PSI
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 34.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 21,200 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 26.9 lb. |
| Product Width | 0 N/A |
| Retracted Length | 22.25 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 12 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288431 |
