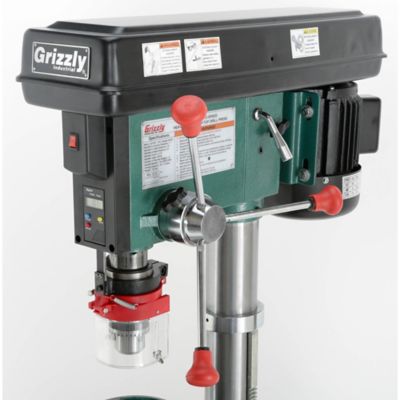

The G0794 14"" Floor Drill Press with Laser and DRO features a digital spindle travel readout and laser pin-point accuracy for quickly aligning the workpiece to the drill entry point. The powerful 3/4 HP motor features twelve speeds from 140 to 3050 RPM.

With a max drill capacity of 3/4"" through steel, it can easily drill through fiberglass, plastic and composites.

The JT33 keyed drill chuck is fitted to the MT #2 spindle taper and offers up to 3-1/4"" of travel. The chuck accepts drill bits from 3/64""-5/8"". You can set the adjustable depth stop for predetermined and repeatable drilling.

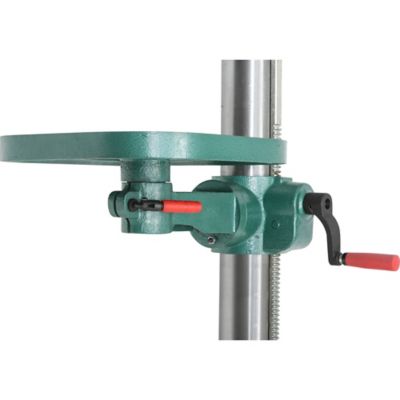

The precision-ground cast-iron table is 11-3/8"" x 11-3/8 and tilts 90° left and right. It swivels 360° around the steel column and has crossed 5/8"" T-slots. It has crank handle operated rack-and-pinion vertical table movement. The table features locking levers and a coolant trough.

The G0794 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.

Made in an ISO 9001 factory

• Built-in digital readout for spindle depth
• Adjustable laser sight
• Precision-ground cast-iron table
• Table has lock levers and coolant trough
• Threaded depth stop
• Crank handle operated rack-and-pinion vertical table movement
• 1-year limited warranty
