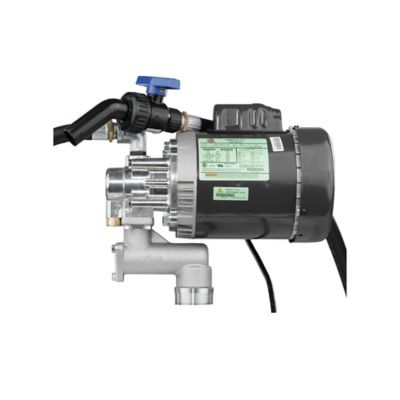

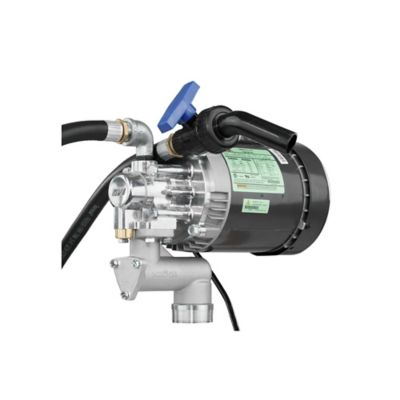

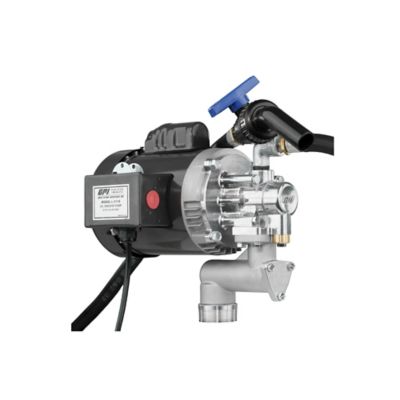

GPI 4 GPM, 115V Electric Heavy Duty Oil Transfer Pump
Online Only
Item # 1093553
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The GPI Electric 115V 4.0 GPM L 5116 Heavy-Duty Oil Transfer Pump is ideal for use with new oil (up to 90 wt.), waste oil, hydraulic fluid, antifreeze or other non-flammable oil-based solvents. The pump features a gerotor gear design and durable, lightweight cast aluminum housing. With a rugged 115-/230VAC motor delivering flow rates up to 16 QPM (15 LPM), it is engineered for long life and limited maintenance. The oil transfer pump comes complete with a ball valve nozzle, 8 ft. (2.5 m) dispensing hose, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., and 3-prong plug-in. The motor is a UL recognized component and CSA approved.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Ideal oil transfer pump for use with new oil (up to 90 wt.), waste oil, hydraulic fluid, antifreeze or other non-flammable oil-based solvents
- Gerotor gear design and durable, lightweight cast aluminum housing
- Rugged 115-/230VAC motor
- Flow rates up to 16 QPM (15 LPM)
- Oil pump is engineered for long life and limited maintenance
- Complete with a ball valve nozzle, 8 ft. (2.5 m) dispensing hose, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., and 3-prong plug-in
- Made in USA
- Duty cycle is 30 minutes on/off
- Thermal limiting motor protection extends motor life
- Weight-centering inlet base reduces tank stress and includes an easy-access strainer to protect pump from debris
- CSA Certified MotorMotor UL Recognized Component
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 3A |
| Body Materials | Aluminum |
| Compatible Fluids | Anti-Freeze |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. on/off |
| Features | Self-Priming |
| Horsepower | 1/2 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 4 GPM |
| Maximum Head Lift | 0 ft. |
| Maximum Operating Pressure | 50 PSI 3.45 bar |
| Maximum Operating Temperature | 125 deg. |
| Minimum Operating Pressure | 50 PSI 3.45 bar |
| Minimum Operating Temperature | 20 deg. |
| Power Cord Length | 3 ft. |
| Power Type | Electric |
| Product Height | 11-3/4 in. |
| Product Length | 12-5/8 in. |
| Product Weight | 1 in. |
| Product Width | 9-3/8 in. |
| Voltage | 115/230V |
| Warranty | 2 Years |
| Manufacturer Part Number | 142100-01 |
