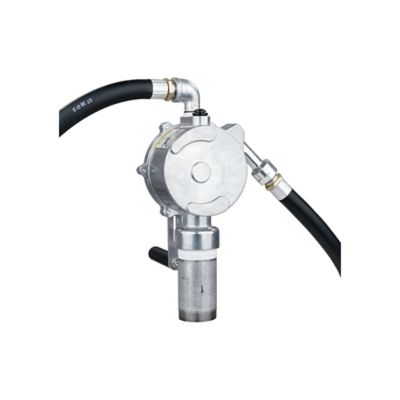

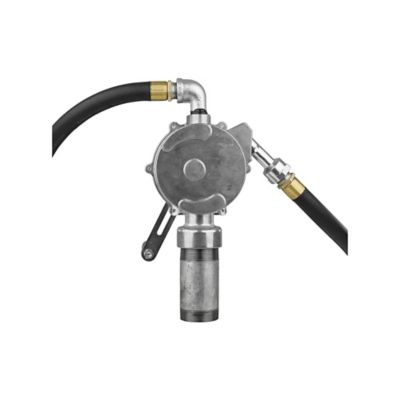

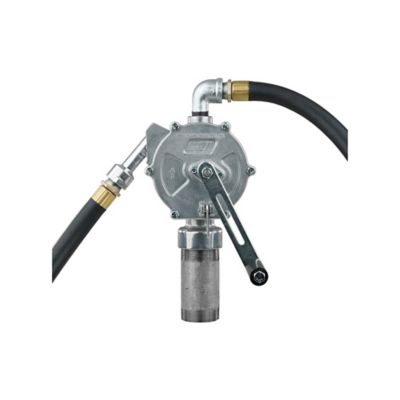

GPI RP-10-UL Hand Pump, 123000-06TSC

SKU: 395806699
GPI RP-10-UL Hand Pump, 123000-06TSC
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.3
4.3
 (33)

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
This item will ship within 0 days.
Change Delivery Location

Item Information

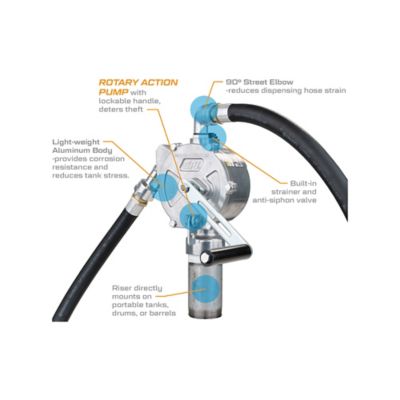

The GPI RP-10-UL Hand Pump is a very reliable piece of equipment that you can trust.

  • Size: 2 in. NPT Bung
  • Material: Cast
  • Aluminum, Plastic Suction Pipe
  • Flow Rate: Up to 10 gallons per 100 revolutions
  • Built-in anti-siphon valve
  • Includes: 3/4 in. x 8 ft. Hose, Metal Nozzle with Built-In Nozzle Holder, Plastic, Adjustable 22 to 40 in. Suction Pipe and Handle-Locking Tab
  • For Use With: Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Petroleum products such as medium oil (up to 30W) and hydraulic fluid
  • Applications: Designed for Mounting on Portable, Vented Petroleum Tanks, Drums/Barrels
  • 2 year limited warranty

Specification Description
Intended Use Grade: Residential, Commercial, Industrial, Standard
CountryofOrigin: Made in USA
Special Feature(s): Light-weight aluminum body provides corrosion resistance and reduces tank stress.
Maximum Discharge Pressure: 50 PSI
Housing Material: Lightweight, die-cast aluminum housing
Inlet Size: 1 in.
Compatible Fluids: Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
Maximum Flow Rate: 10 g per 100 Revolutions
Maximum Lift: 8 in.
Brand: GPI
Type: Fuel Pumps
Product Width: 6 in.
Maximum Total Head: 8 in.
Seal Type: Polyethylene
Outlet Size: 3/4 in.
Maximum Speed: 0 rpm
Inlet Connection: Threaded Female
Inlet Diameter: 1 in.
Amperage: 0 Amp
Discharge Diameter: 3/4 in.
Nozzle Type: Pour Spout, Metal
Product Length: 8.87 in.
Product Weight: 16.81 lb.
Part Number: 123000-06TSC
Horsepower: 0 HP
Product Height: 13.87 in.
Hose Length: 8 ft. x 3/4 in.
Discharge Connection: Threaded Female
Self-Priming: No
Voltage: 0 V
Manufacturer Part Number 123000-06TSC
GPI RP-10-UL Hand Pump, 123000-06TSC is rated 4.3 out of 5 by 33.
Rated 1 out of 5 by from Complete junk, great design, horrible materials. These pumps should be the best on the market, they're so simple in design and work incredibly when they do. But the main carriage in the middle of this pump that you spin around with the handle is made of junk metal. It looks like it gets sealed, but the sealant doesn't last long soaked in fuel, so eventually it just gets rusted and seizes within a few months. Mine lasted 6 months, so I had to buy another brand new one because we had a hurricane heading towards Florida and I had no way to pump the 150 gallons of fuel I have stored up. I contacted GPI for spare parts, they never responded. I can't type out how enfuriated I am that to know the brand new one I bought also won't last and I get to spend my time every couple of months restoring these pumps.
Date published: 2019-09-13
Rated 5 out of 5 by from Great diesel pump. I pump about 50 gollons of diesel a day. This pump is awsome. I realy like how fast it is. It has an anti-siphon valve that stops the flo when you stop cranking, no more spilt fuel for this guy.
Date published: 2019-08-10
Rated 4 out of 5 by from Good Pump For The Money The pump was easy to assemble and does a nice job.
Date published: 2019-07-31
Rated 1 out of 5 by from JUNK I opened the box and there were no instructions for assembly or use. I have been unable to get this pump to work. It has been a huge waste of my time and resources. I will be disassembling it and returning it to the place I purchased it. So now I have a 80 mile trip in front of me along with a huge waste of my time....*0 miles to buy it 80 miles to return it, my time driving my time assembling, my time disassembling and my time trying to get it to work. ??? how much are the minutes of my life worth? Way more than this worthless pump!!!!
Date published: 2019-06-15
  • y_2019, m_11, d_19, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.3-b1
  • cp_1, bvpage1
  • co_hasreviews, tv_13, tr_20
  • loc_en_US, sid_395806699, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

Does this pump work in both directions? As in, can I suck gas out of 5 gal. cans to fill up a 55gal drum, and then turn the crank in the opposite direction to suck the fuel out of the 55gal drum?

Asked by: C Wyckoff
All of our pumps are designed to pull a suction only. if you run these in reverse you could wear out the vanes quickly, and you won't have an filtration to protect the pump. what will happen is you will blow air down the through the pump and into the fuel verses pulling a vacuum to bring the fuel up. if you have any other question feel free to give us a call. 1-800-835-0113 Thank you, GPI Sales team.
Answered by: GPI Inside Sales
Date published: 2018-06-21

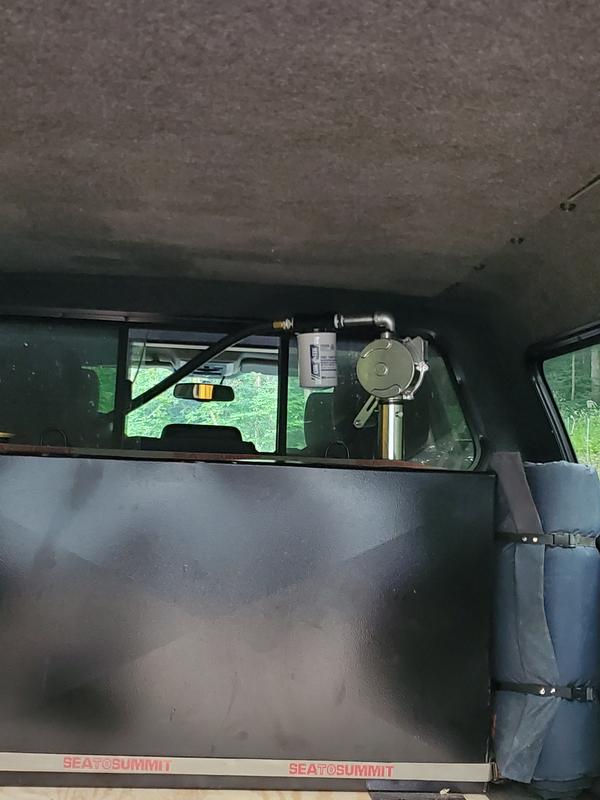

Would you be able to install a fuel filter on this without compromising the action or warranty?

Asked by: Copperopolis
Hello, You can add a filter to one of our hand pumps with no problem. Thanks, GPI Sales Team.
Answered by: GPI Inside Sales
Date published: 2018-06-18

Can you use a water trap type filter with this hand pump?

Asked by: Jrl farm
Yes, a water trap filter can be used. Technically any filter can be used as long as it can perform at or above 10 gallons per minute/100 revolutions.
Answered by: DanielB
Date published: 2017-02-17

Could I reduce the 2 inch npt down to a 3/4 in pipe. I have a tank with a 1/2 diameter drop tube approximately 18 inches long. Then I would like to put a filter on the out put line before it goes into the vehicle. Would this be recommended

Asked by: JPPOLK
Hello, I would not recommend this setup. You need the 1" suction pipe to go down into the fuel so you can get the right fuel draw from the tank. Otherwise the pump will have a hard time drawing up the fuel with a 1/2" suction tube. Thank you, GPI Sales Team.
Answered by: GPI Inside Sales
Date published: 2019-09-03

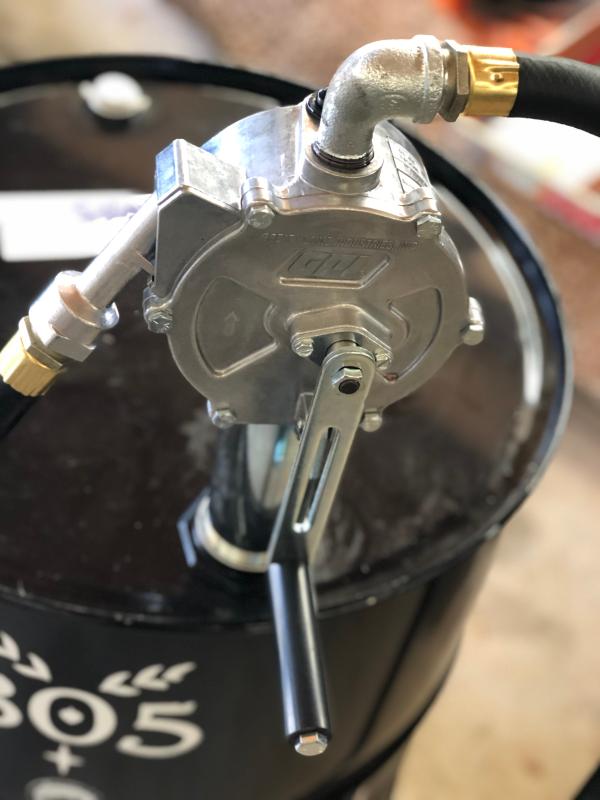

will this pump fit a 55 gal drum

Asked by: jim4936
Yes, the RP-10 will fit and work on a 55 gal drum. The tank fitting on the RP-10 like all of our pumps is 2" MNPT.
Answered by: GPI Inside Sales
Date published: 2019-05-29

Will this pump work on the delta 37 gal auxiliary fuel tanks?

Asked by: Landy
Yes, as long as it has the standard 2" thread and you go no more than a 3' suction lift.
Answered by: DanielB
Date published: 2019-05-18

can it be used on a 55 gallon drum to pump 15w-40 oil

Asked by: Mississippi boy
The RP-10 has been approved for use with medium weight oils up to 30W. As long as the oil remains at room temperature in the drum the oil will not reach the higher viscosity and shouldn't cause issues. The dry prime capabilities are capable of picking up from the bottom of a 55 gallon drum as well so long as the drum is properly vented.
Answered by: GPI Inside Sales
Date published: 2017-11-13

Will this pump methanol?

Asked by: marinevet93
Sorry the RP-10 will not pump methanol and we do not have a hand pump for methanol, but we do have an electric pump if that will suffice? Check out the EZ-8 methanol or M-150 methanol pumps in 12V if interested or contact us for more detail 316-686-7361. Thank you, GPI sales team.
Answered by: GPI Inside Sales
Date published: 2019-01-22
