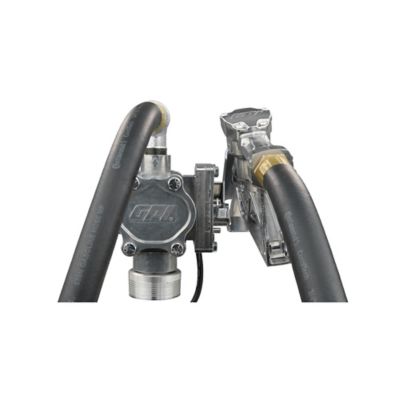

The GPI Electric 8 GPM EZ-8 Fuel Transfer Pump is ideal for on the go fueling for agricultural and automotive applications and is the pump of choice for refueling recreational vehicles. It features a rotary gear design and is made from durable, lightweight die-cast aluminum, delivering gas station equivalent flow rates (up to 8 GPM (30 LPM)) for gasoline, diesel fuel, and kerosene. This fuel transfer pump comes with a manual unleaded nozzle, a 10 ft. (3 m) fuel dispensing hose, direct mount bung adapter, a factory-installed power cord, and a telescoping suction pipe to fit tank depths between 15 in. and 40 in. Its motor is U.L. Listed to U.S. and Canadian standards and it comes with a 2-year warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Gas station equivalent flow rate (up to 8 GPM)
- Fuel pump features a self-priming low maintenance design
- Extremely lightweight design makes the fuel pump great for use on small tanks and barrels
- Designed for permanent mounting on vented storage tanks
- Easy installation and direct tank mounting
- Thermal overload protection extends pump life
- Aluminum fuel transfer pump provides corrosion resistance and reduces tank stress
- Motor U.L. listed to U.S. and Canadian standards
- 2 year warranty
- Made in USA
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 15A |
| Body Materials | Aluminum |
| Compatible Fluids | Gasoline |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 15 min. ON, 30 min. OFF |
| Features | Self-Priming |
| Horsepower | 1/10 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Industrial |
| Maximum Flow Rate | 8 GPM |
| Maximum Head Lift | 0 N/A |
| Maximum Operating Pressure | 15 PSI |
| Maximum Operating Temperature | 131 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | -22 deg. F |
| Power Cord Length | 15 ft. |
| Power Type | Electric |
| Product Height | 10 in. |
| Product Length | 16 in. |
| Product Weight | 17.08 in. |
| Product Width | 10 in. |
| Voltage | 12V |
| Warranty | 2 Year |
| Manufacturer Part Number | 137100-01TSC |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 30 Questions
Newest questions
Q: is it ok for it to be in the weather or brought thru a car wash if in the bed of a truck on a tank?
6 months ago1 Answer
- A: Yes, the GPI Fuel Transfer Pump is designed to be weather-resistant and can be exposed to outdoor elements, including rain. However, it is not suitable for going through a car wash due to the high-pressure water jets and the risk of water ingress into electrical components.6 months agoHelpful?
Q: Will this allow the lid of the 7274s to close and hide? Can you suggest the best setup for a 90 gallon or larger auxiliary tank and toolbox combination?
7 months ago1 Answer
- A: The GPI 8 GPM 12V Fuel Transfer Pump, Manual Nozzle will likely prevent the lid of the RDS 72745 tank and toolbox combo from closing. The total installed height of the GPI pump is approximately 9 inches above the tank's bung. This is too tall for the low-profile toolbox lid on an integrated tank-toolbox unit to completely close and hide the pump. May we suggest: RDS 72745 Combo: A popular 90-gallon diamond plate aluminum auxiliary tank and toolbox model.7 months agoHelpful?
Q: Please clarify the difference between automatic and manual nozzles. Both use 12 volt power source.
10 months ago1 Answer
- A: Hello, thank you for your question. The main difference is how fuel flow is controlled. A manual nozzle requires you to hold the handle down continuously and does not shut off automatically, so you must monitor the fill closely. An automatic nozzle senses when the tank is full and shuts off on its own, offering added convenience and spill prevention. Both types are compatible with 12V fuel transfer pumps.10 months agoHelpful?
Q: gpi ez8 available in 120 volt ac
a year ago1 Answer
- A: Hi, It is not.a year agoHelpful?
Q: Does this have an automatic shut off
a year ago1 Answer
- A: Hi, This pump has a manual shut off nozzle.a year agoHelpful?
Q: Can i pump diesel and gas wih this pump
a year ago1 Answer
- A: Hello, Thank you for your question. Yes, the PI Electric 8 GPM EZ-8 Fuel Transfer Pump features a rotary gear design and is made from durable, lightweight die-cast aluminum, delivering gas station equivalent flow rates (up to 8 GPM (30 LPM)) for gasoline, diesel fuel, and kerosene.a year agoHelpful?
Q: Where can I get a replacement 12v motor?
2 years ago1 Answer
- A: Hi, Thanks for reaching out. For replacement parts, please contact: GPI directly at https://greatplainsindustries.com/pages/contact-us or 800-835-0113 LIVE SUPPORT 8 a.m. - 5 p.m. CST (2 p.m. - 10 p.m. GMT) Monday - Friday2 years agoHelpful?
Q: Can you put a lock on the handle? If so, what size lock?
3 years ago1 Answer
- A: Hi there, For such a specific inquiry please contact the manufacturer for additional assistance. Please contact the GPI Customer Service Department at 1-800-835-0113.3 years agoHelpful?
Q: How tall off the tank?
3 years ago1 Answer
- A: Total installed height will be about 9” from the top of the bung3 years agoHelpful?
Q: Could I wire this to a 12 volt transformer instead of using a battery. If so what output would I need.
4 years ago1 Answer
- A: For additional product support, please contact [email protected].4 years agoHelpful?
1 - 10 of 30 Questions
Similar Items
Items You May Like
-
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Reviews
Summary of Reviews
The product is a high-quality and reliable fuel pump that performs well for various fuel transfer applications. Customers praise its great performance, easy installation, and good value. The pump work...
Most Helpful Favorable Review
5 out of 5 stars.
Working so far
4 years ago
Works great, only used it once so far and quieter than some of the other pumps I looked at.
3 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
The stator magnets are glued to the housing
5 years ago
I had an electric motor fail and took it apart for analysis. The stator magnets are glued inside the motor housing and the glue had failed. My manufacture date was 2017 and I called GPI to see if they would warranty it but they were quick to deny any help. I would have a lot more confidence in these pumps if they had a mechanical fastener securing the magnets inside the motor.
7 people found this helpful
Show Reviews:
Customer Images and Videos
- purchase
- price
- satisfaction
- installation
- quality
- setup
- ease of use
- battery
1 to 4 of 706 Reviews .
1 – 4 of 706 Reviews
Most Recent
Review 1
1 out of 5 stars.
a month ago
I owned this product for 2 years and 3 months and during that time frame I went through two pumps due to poor quality only after pumping roughly 250 gallons. Customer service was good and easy to get a hold of and helpful however their product is junk and I would stay away from anything they make. Customer service or warranty would not help me out going through two pumps in about 2 years.
Eglon wv
Review 1
4 out of 5 stars.
Good pump
6 months ago
Pump was easy to install and pumps great for being only 8 gpm. Only wish they would do swivels for the hose ends, but i picked up those cheap enough.
SweepstakesYes
Yes, I recommend this product.
Texas
Review 1
1 out of 5 stars.
Junk
11 months ago
This pump quit in less than a year and very little use
No, I do not recommend this product.
Reviews 3
5 out of 5 stars.
Good Value
a year ago
Works good for the price.
SweepstakesYes
Yes, I recommend this product.
