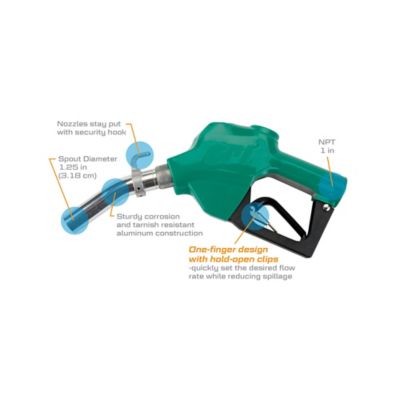

GPI Auto Diesel Nozzle, 1 in., 906008-570M12TSC

SKU: 395898599
GPI Auto Diesel Nozzle, 1 in., 906008-570M12TSC
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.3


Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

GPI Auto Diesel Nozzle is a sturdy piece of equipment.

  • Size: 1 in. NPT
  • Length: 16 in.
  • Width: 2-1/10 in.
  • Height: 7.5 in.
  • Flow Rate: 20 GPM and up
  • Weight: 3-1/2 lb.
  • Overall Color: Green
  • Material: Aluminum
  • Certification: UL Listed

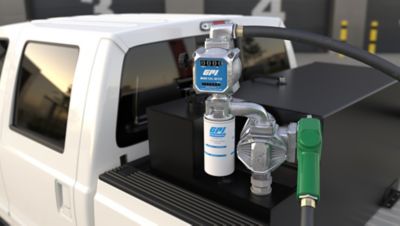

  • Application: For use with diesel, gasoline and kerosene electric transfer pumps
  • Included: Protective Boot and Spout Hook
  • 90 day limited warranty

Specification Description
Control Type: Automatic
Package Quantity: 1
Product Length: 16 in.
Material: Aluminum
Part Number: 906008-570M12TSC
Country of Origin: Made in USA
Product Weight: 3.5 lb.
Product Height: 7 1/2 in.
Product Width: 2 1/10 in.
Compatibility: For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene
Brand: GPI
Manufacturer Part Number 906008-570
GPI Auto Diesel Nozzle, 1 in., 906008-570M12TSC is rated 4.3 out of 5 by 31.
Rated 5 out of 5 by from Grey flow like a house hoe Dumps fuel like crapn mule! Spits that diesel out like no other!
Date published: 2020-07-07
Rated 3 out of 5 by from Farm Tank Nozzel Make sure that your farm or auxiliary tank is pressurized or has a pumping system. This nozzle will not work without back pressure and gravity feed is not enough pressure.
Date published: 2020-07-03
Rated 5 out of 5 by from Good Nozzle Good 1" Nozzle... I have purchased a couple of these... The only problems we have had were driver errors not a fault in the product.
Date published: 2020-02-25
Rated 5 out of 5 by from Hi-flow Diesel nozzle Great product. Hi-flow. Smooth handle grip. Auto-shut off
Date published: 2020-01-26
  • y_2020, m_8, d_4, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_20, tr_11
  • loc_en_US, sid_395898599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms

Is this an "automatic" shut off style?

Asked by: PPete
Hello, yes the 1" Auto Diesel Nozzle is a 1" Automatic Diesel Nozzle with 1" female NPT threads to connect to a 1" hose.
Answered by: GPI Inside Sales
Date published: 2020-01-21

Does this nozzle work with gravity feed tanks?

Asked by: FredFudpucker
This nozzle works with Electric Pumps. It will not work as intended in a Gravity Feed Tank.
Answered by: ZackZ
Date published: 2020-03-11
