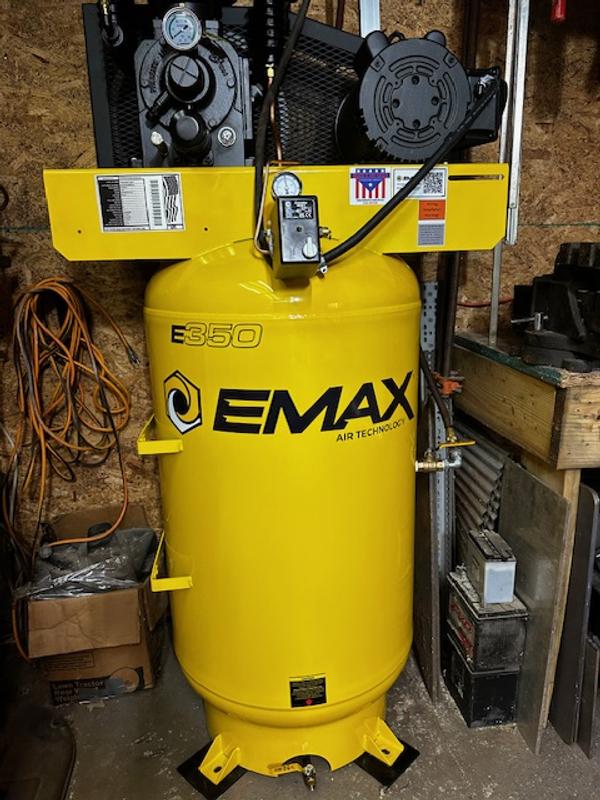

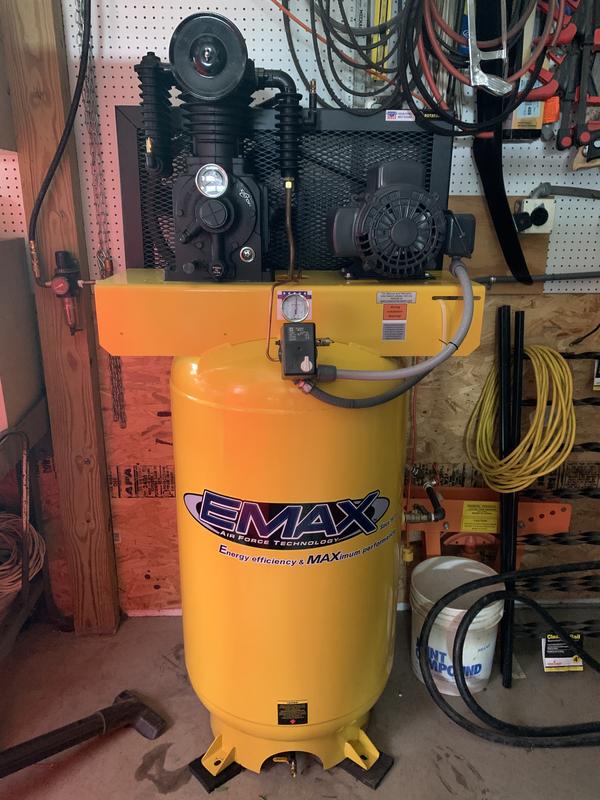

This EMAX 5 HP 80 gal. Industrial Air Compressor is an Inline 2 stage, single-phase vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated 2-stage SOLID cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 19 CFM at 100 PSI, Maximum PSI 175. The unit features industrial grade electric motor at 1750 maximum RPM and 24 running AMPS, magnetic starters, Condor pressure switch, Re-usable oil filter, manual ball valve tank drain, and powder coated ASME tank, rated at 200PSI in all 50 states. This air compressor is engineered a 100% SOLID cast iron, Inline 2 Stage, 70,000 Hours rated, patented pressure lubricated reciprocating pump. Operating at a low 800rpm for extended pump life. Backed by the best warranty in the industry! ETL, UL, CSA, ASME Certified. Eligible for LIFETIME PUMP WARRANTY, 1 Year Standard, 5 Year Extended. MADE IN THE USA!
Specification | Description |
---|---|
Brand | EMAX |
Country of Origin | Made in USA |
Air Delivery SCFM At 40 PSI | 26 CFM |
Air Delivery SCFM At 90 PSI | 21 CFM |
Airflow Volume | 19 CFM |
Air Outlet Size | 3/4 in. |
Amperage | 24A |
Cartridge Size | 0 N/A |
Compressor Horsepower | 5 HP |
Compressor Maximum PSI | 175 PSI |
Compressor Operation | Dual control |
Compressor Tank Capacity | 80 gal |
Compressor Type | Oil lubricated |
Compressor Voltage | 208V/230V |
Connection Type | NPT |
Drain System | Manual |
Drive Type | Electric Motor |
Engine Brand | N/A |
Features | Magnetic starter, Solid Cast Iron pressure lubricated Low RPM Pump, Industrial grade low RPM electric motor, 2 stage single phase, ASME, ETL, CSA, UL certified |
Fuel Tank Capacity | 0 qt. |
Hose Fitting Size | 3/4 in. |
Maximum RPM | 800 RPM |
Phase | Single |
Nozzle Fitting Size | 3/4 in. |
Number Of Power Speeds | Single |
Number Of Wheels | 0 |
Power Type | Electric |
Primary Color | Yellow |
Primary Material | Steel |
Product Height | 75 in. |
Product Length | 31 in. |
Product Weight | 576 lb. |
Product Width | 33 in. |
Pump Life | 70,000 hours |
Pump Material | Cast iron |
Pump Oil Capacity | 2 qt. |
Stage Type | Two-Stage |
Tank Fill Time | 4.5 min. |
Tank Orientation | Vertical |
Warranty | 1 year Standard, 5 year extended, eligible for LIFETIME extended |
Manufacturer Part Number | EI05V080I1 |
