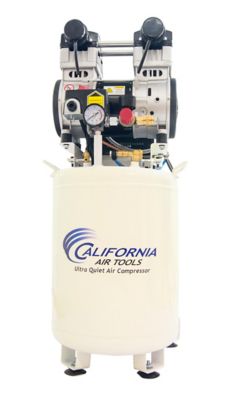

California Air Tools 2 HP 10 gal. Ultra Quiet and Oil-Free Air Compressor with Air Dryer, 220V
Item # 197553799
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 197553799
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 2.0 horsepower air compressors in the industry having only 70 decibels of sound. The powerful 2.0 HP motor operates at only 1680 RPM creating less noise, vibration and creating less wear. The Oil-Free Dual Piston Pump System is engineered for longevity, high performance and durability. The SP-9421 Motor/Pump is tested for a minimum pump life of 3000 hours before service. 30% more life before repair The large 10.0-gal. steel air tank is only 91 lb. The Air Dryer is specially designed to remove the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. This air compressor is ideal for anyone working inside (office, shop, store, warehouse or home) where noise is a major issue.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Ultra Quiet - Only 70 decibels
- Oil-Free Pump Cleaner air for better tool operation and less maintenance costs.
- Two pressure control gauges
- One - 1/4 in. Industrial female quick connector
- Thermal Overload Protector
- 125 PSI Maximum Pressure
- Kick On Pressure 95 PSI - Kick Off Pressure 125 PSI
- 110v / 60 Hz
- Low Amp Draw - Only 14.0 Amps
- Tank fill rate from empty to full - 130 Seconds
- Recovery time from 95 PSI to 125 PSI - 40 Seconds
- Duty Cycle - 70/30
- Maximum continuous running 30-60 min. (Depending PSI & CFM)
- 91 lb. L (16 in.) x W (23 in.) x H (35 in.)
- Air Dryer - Includes Activated Alumina desiccant with a 4000-hour life.
- Aftercooler (condenser)
- 1 Year Limited Warranty
| Brand | California Air Tools |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 6.4 CFM |
| Air Outlet Size | 1/4 in. |
| Amperage | 7.5 Amp |
| Compressor Horsepower | 2 HP |
| Lubrication Type | Oil Less |
| Compressor Maximum PSI | 125 PSI |
| Compressor Tank Capacity | 10 gal |
| Compressor Voltage | 220V |
| Connection Type | Quick Connect |
| Decibel Rating | 70 dB |
| Drain System | EZ-1 Automatic Drain Valve |
| Drive Type | SP-9421 Motor/Pump |
| Features | Ultra Quiet only 70 Decibels |
| Maximum RPM | 1,680 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | White |
| Primary Material | Steel |
| Product Height | 35 in. |
| Product Length | 16 in. |
| Product Weight | 92 lb. |
| Product Width | 23 in. |
| Pump Life | 3,000 hr. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Fill Time | 130 sec. |
| Tank Style | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | CAT-10020DCAD-22060 |
