Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter

Shop all Chief
Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter

Item # 130748499

Chief Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter
Chief Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter
$389.99
or
or

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Shop all Chief
Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter

Item # 130748499

Chief Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter
Chief Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder, 2.25 in. Rod Diameter

$389.99
or
or
financeCard Logo
$65/mo.†  suggested payments with 6 Months Financing or earn $19 in Rewards+ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

​
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

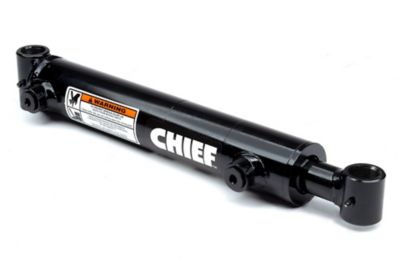

The Chief 4 in. Bore x 18 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. It is ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
  • Butt plate: steel

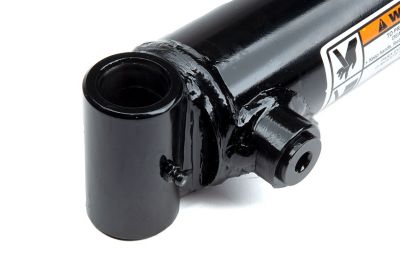

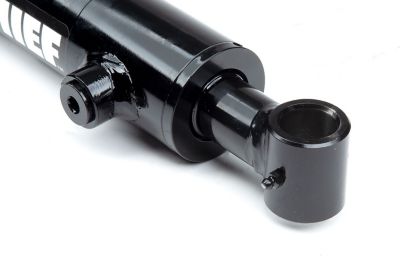

  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on WT welded hydraulic cylinders
  • Measures 27 in. retracted and 45 in. extended
  • Includes SAE O-ring port hookups on small bores and NPT on large bores
  • Column load: 37,690 lb.
  • Suitable for a variety of applications and make great farm hydraulic cylinders
  • Made in the USA with a 3 year limited warranty
  • Pin diameter of 1.25 in. and rod diameter of 2.25 in.
BrandChief
Country of OriginMade in USA
Bore Diameter4 in.
Brand CompatibilityUniversal
CompatibilityTractors
Extended Length45 in.
Hydraulic Cylinder TypeWelded
Maximum Operating Pressure3,000 PSI
Maximum Weight Capacity37,690 lb.
Model CompatibilityMost applications
Package Quantity1
Pin Diameter1-1/4 in.
Port SizeSAE 8
Primary MaterialSteel
Product Height4.6 in.
Product Length0 N/A
Product Weight66.14 lb.
Product Width4 in.
Retracted Length27 in.
Rod Diameter2-1/4 in.
Single/Double ActingDouble acting
Stroke Distance18 in.
Warranty3 Year
Manufacturer Part Number212765

Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Sort by
Newest questions

Q: Will the chief 4" bore be adequate for the pivot on a bucket loader at 3000 lb? I have an older John Deere 1010 with a bucket on the front. The single 2 port cylinder is bad and needs replacement for the up and down tilt. My 2 lift cylinders are good.

2 years ago
1 Answer
  • A: For expert advice on if this will fit your tractor or for what product will best suit your specific needs, please contact Bailey Hydraulics at: https://www.baileyhydraulics.com/contact-us
    2 years ago
    Helpful?

Q: Will this work for log splitters?.

7 years ago
1 Answer
  • A: The manufacturer is stating that they believe you would need a 4X24 cylinder. That’s the common cylinder for log splitters. You could try PN 212-767 ($314.55/each) or a 287-065 ($245.62/each) depending on if you need clevis end mounts or cross-tubes.
    7 years ago
    Helpful?

Q&As

Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Sort by
Newest questions

Q: Will the chief 4" bore be adequate for the pivot on a bucket loader at 3000 lb? I have an older John Deere 1010 with a bucket on the front. The single 2 port cylinder is bad and needs replacement for the up and down tilt. My 2 lift cylinders are good.

2 years ago
1 Answer
  • A: For expert advice on if this will fit your tractor or for what product will best suit your specific needs, please contact Bailey Hydraulics at: https://www.baileyhydraulics.com/contact-us
    2 years ago
    Helpful?

Q: Will this work for log splitters?.

7 years ago
1 Answer
  • A: The manufacturer is stating that they believe you would need a 4X24 cylinder. That’s the common cylinder for log splitters. You could try PN 212-767 ($314.55/each) or a 287-065 ($245.62/each) depending on if you need clevis end mounts or cross-tubes.
    7 years ago
    Helpful?
