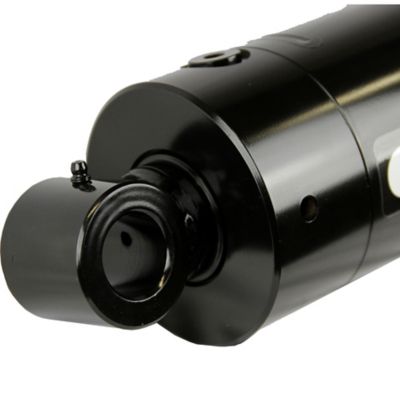

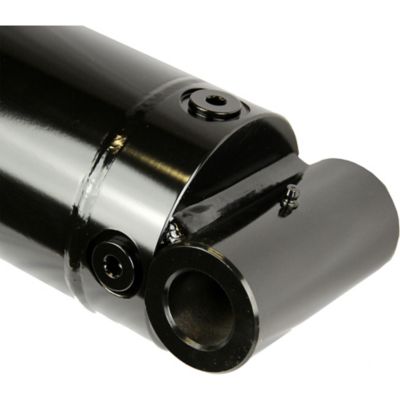

Chief 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder

Chief 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
5.02 Reviews

Item # 130480899

Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
$999.99
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
5.02 Reviews

Item # 130480899

Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
Image showing 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder
$999.99
or
or
financeCard Logo
$84/mo.†  suggested payments with 12 Months Financing or earn $49 in Rewards+ on this purchase.Apply now

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The patented Chief 4 in. Bore x 60 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for a hydraulic cylinder is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the welded hydraulic cylinder's already slender design. Adjustments to the hydraulic cylinder can be quickly and easily made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.

  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • Has a 3,000 PSI operating range
  • 3 year limited warranty included with the welded hydraulic cylinder
  • Column load: 9,490 lb.
  • Measures 73 in. retracted and 133 in. extended
  • Pin diameter of 1.25 in. and rod diameter of 2 in.
  • Ideal for applications where port adjustability and overall hydraulic cylinder space is restricted
  • All ports are recessed to maximize an already cylinder design
  • One port is located on the rotating gland and two on the fixed base
  • Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise
  • 360 degree rotating gland allows you to make port alignments as needed
