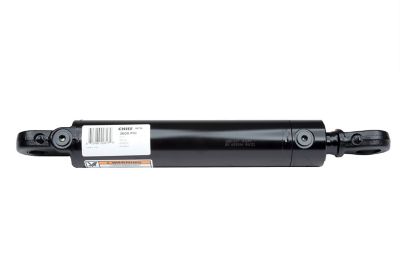

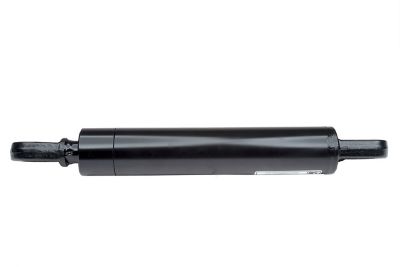

Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter

Shop all Chief
Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter

Item # 130783399

Chief Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter
Chief Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter
$379.99
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Shop all Chief
Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter

Item # 130783399

Chief Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter
Chief Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.375 in. Rod Diameter
$379.99
or
or
financeCard Logo
$64/mo.†  suggested payments with 6 Months Financing or earn $18 in Rewards+ on this purchase.

This item is available online only

Out of stock delivering to

37027

This item is not available

Search Stores

Temporarily unavailable

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2.5 in. Bore x 10 in. Stroke WTG Welded Tang Hydraulic Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended for use as a double acting hydraulic cylinder
  • Piston: ductile iron, thread-on with wear ring
  • Gland: keyed joint, ductile iron
  • Tube made from durable precision-honed steel
  • Rod is induction-hardened and hard chrome-plated for corrosion resistance

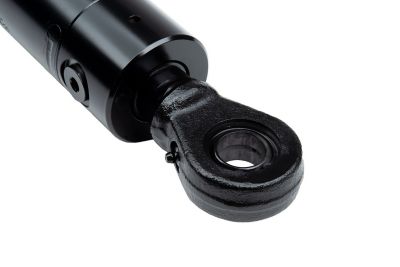

  • Rod end mount: cast 1045 steel, welded-on
  • Spherical bearing with retaining ring
  • 1/8 NPT grease zerk

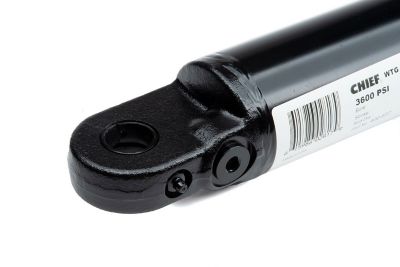

  • Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
  • Tube seal: Buna O-ring with polytemp hytrel backup
  • Rod seal: deep polypak with B-lip design
  • Rod wiper: urethane, snap-in
  • Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
  • All seals are manufactured to U.S. specifications
  • Ports: SAE O-ring
  • Paint: black; custom colors are available
  • 3,600 PSI pressure rating
  • Forged steel tang mountings with integral heavy-duty bushings
  • 360 degree rotating gland for versatility
  • Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
  • 3-year limited warranty
  • Measures 20 in. retracted and 30 in. extended
  • Column load: 17,670 lb.
  • Pin diameter of 1 in. and rod diameter of 1.375 in.
BrandChief
Country of OriginMade in USA
Bore Diameter2.5 in.
Brand CompatibilityUniversal
CompatibilityVaries
Extended Length30 in.
Hydraulic Cylinder TypeWelded
Maximum Operating Pressure3,600 PSI
Maximum Weight Capacity17,670 lb.
Model CompatibilityUniversal
Package Quantity1
Pin Diameter1 in.
Port SizeSAE 8
Primary MaterialSteel
Product Height1.2 in.
Product Length10 in.
Product Weight24 lb.
Product Width1.3 in.
Retracted Length20 in.
Rod Diameter1-3/8 in.
Single/Double ActingSingle acting
Stroke Distance10 in.
Warranty3 Year
Manufacturer Part Number400637
