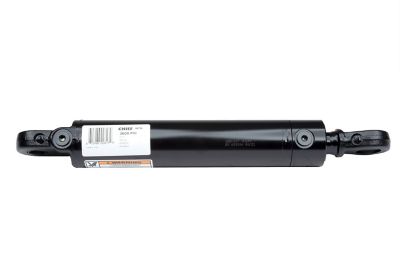

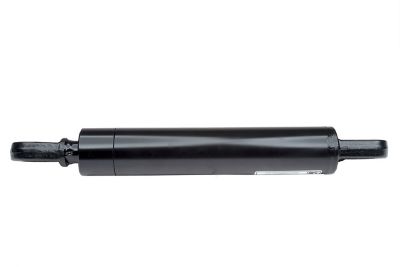

Chief 2 in. Bore x 8 in. Stroke WTG Welded Tang Cylinder, 1.125 in. Rod Diameter
Chief 2 in. Bore x 8 in. Stroke WTG Welded Tang Cylinder, 1.125 in. Rod Diameter
Item # 1307829
$259.99
Chief 2 in. Bore x 8 in. Stroke WTG Welded Tang Cylinder, 1.125 in. Rod Diameter
Item # 1307829
$259.99
The Chief 2 in. Bore x 8 in. Stroke WTG Welded Tang Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.Note: This product may require up to 2 additional days for order processing prior to shipping
- Intended for double acting applications
- Piston: ductile iron, thread-on with wear ring
- Gland: keyed joint, ductile iron
- Tube made from durable precision-honed steel
- Rod comes induction-hardened and hard chrome-plated for durability

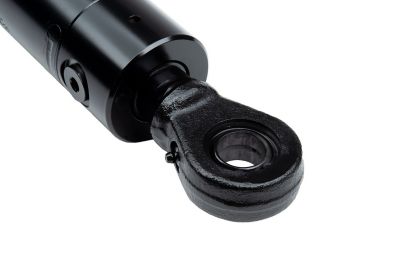

- Rod end mount: cast 1045 steel, welded-on
- Spherical bearing with retaining ring
- 1/8 NPT grease zerk

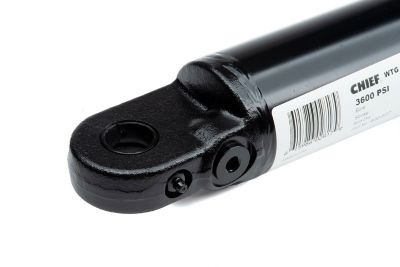

- Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
- Tube seal: Buna O-ring with polytemp hytrel backup
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
- All seals are manufactured to U.S. specifications
- Ports: SAE O-ring
- Paint: black; custom colors are available
- 3,600 PSI pressure rating
- Forged steel tang mountings with integral heavy-duty bushings are made to last
- 360 degree rotating gland for versatility
- Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
- 3-year limited warranty on hydraulic cylinder
- Measures 18 in. retracted and 26 in. extended
- Column load: 11,300 lb.
- Pin diameter of 1 in. and rod diameter of 1.125 in.
- Maximum PSI: 3,600 PSI
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Heavy-duty construction equipment |
| Extended Length | 26 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,600 PSI |
| Maximum Weight Capacity | 11,300 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 1.1 in. |
| Product Length | 10 in. |
| Product Weight | 15 lb. |
| Product Width | 1.3 in. |
| Retracted Length | 18 in. |
| Rod Diameter | 1-1/8 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 400613 |
