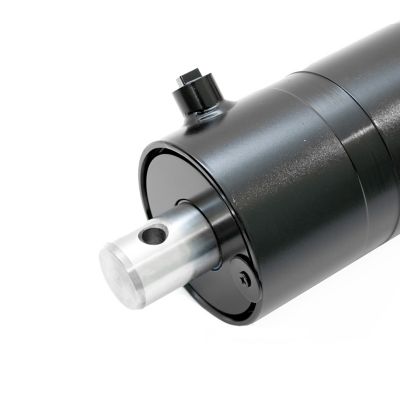

ToolTuff Direct 4.5 in. 24 in. Stroke Log Splitter Cylinder
$299.99
ToolTuff Direct 4.5 in. 24 in. Stroke Log Splitter Cylinder
ToolTuff Direct 4.5 in. 24 in. Stroke Log Splitter Cylinder
Item # 208617299
$299.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
$299.99
or
or
$50/mo.† suggested payments with 6 Months Financing or earn $14 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The ToolTuff Direct 4.5 in. Log Splitter Cylinder boasts a durable, all-welded design. Our cylinders will replace your original worn-out double-acting TSC Husky, SplitMaster, Oregon, SpeeCo and many other cylinders that have the double-ear mounting clevis as shown in our pictures without any modifications needed. Most of the time they are direct-fit.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- All welded design
- This cylinder to be used with any 2 stage gear pump (Common are 11gpm, 13gpm and 16gpm)
- Provides approximately 27 tons of splitting force
- Double-Acting (Forward and Reverse
- 1-3/4 in. Chrome rod with 9/16 in. mounting hole for wedge mounting

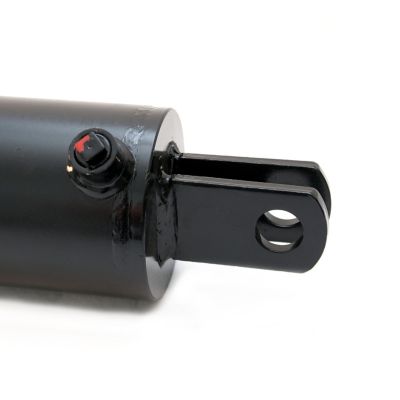

- Double mounting clevis design to accept 1-1/8 in.
- 24 in. stroke
- 4-1/2 in. diameter bore
- 1/2 in. NPT hydraulic ports
- 3500 maximum operating pressure
- 1-1/8 in. Clevis mounting holes to mount cylinder at front of beam
| Brand | ToolTuff Direct |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4.5 in. |
| Brand Compatibility | CountyLine, Oregon, Husky |
| Compatibility | Most brands of log splitter |
| Extended Length | 56.5 in. |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 32 Tons |
| Model Compatibility | Most Clevis Mount log splitters |
| Package Quantity | 1 |
| Pin Diameter | 1.25 in. |
| Port Size | 34 in. |
| Primary Material | Steel |
| Product Height | 5 in. |
| Product Length | 35 in. |
| Product Weight | 70 lb. |
| Product Width | 5 in. |
| Retracted Length | 35 in. |
| Rod Diameter | 1.75 in. |
| Stroke Distance | 24 in. |
| Manufacturer Part Number | 31-112 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 24 Questions
Newest questions
Q: Will it fit countyline 22 ton splitter
5 days ago1 Answer
- AI-assisted, Human-approvedA: Hi Cheryl: Yes, this cylinder is compatible with CountyLine log splitters. It is designed to replace original cylinders on many brands, including CountyLine, that use a double-ear mounting clevis. This cylinder to be used with any 2 stage gear pump (Common are 11gpm, 13gpm and 16gpm).4 days agoHelpful?
Q: What are the dimensions on the hook up point, trying to replace on a homemade splitter
22 days ago1 Answer
- A: Hi Dennis! This cylinder features a 9/16-inch mounting hole on the rod for wedge mounting and a double mounting clevis design that accepts 1-1/8-inch pins. The clevis mounting holes at the front of the beam are also 1-1/8 inches.21 days agoHelpful?
Q: Will fit county line 25 ton splitter
a month ago1 Answer
- AI-assisted, Human-approvedA: Hi Pops: Yes, this cylinder is compatible with CountyLine log splitters. It is designed to replace original cylinders on many brands, including CountyLine, that use a double-ear mounting clevis. This cylinder to be used with any 2 stage gear pump (Common are 11gpm, 13gpm and 16gpm)a month agoHelpful?
Q: Does it have a warranty
a month ago1 Answer
- A: Hi ColdCase79: This item has a 6 month warranty. For warranty asssistance, please visit https://www.tooltuffdirect.com/a month agoHelpful?
Q: What is the retracted center-to-center mounting length of the 31-112 cylinder? I am trying to determine if this will be a suitable replacement for my 27 ton Dirty Hand Tools log splitter. They are out of business and I can't call them.
3 months ago1 Answer
- A: Hi Jim S! The retracted center-to-center mounting length (pin-to-pin, center on center) for the ToolTuff Direct 4.5 in. × 24 in. Stroke Log Splitter Cylinder is 32 & 1/2 inches.3 months agoHelpful?
Q: Fit 28 ton dirty hands
10 months ago1 Answer
- A: Hi Neighbor! Please contact the manufacturer.10 months agoHelpful?
Q: Will this fit a 22 ton huskie woodsplitter ,,?
a year ago1 Answer
- A: Hi Neighbor- Brand Compatibility CountyLine, Oregon, Husky Please check the owners manual for fita year agoHelpful?
Q: Does it fot dirty hands tools log splitter
a year ago1 Answer
- A: Hi Neighbor! Thank you for reaching out. Unfortunately, we are unsure of what you are asking. Please resubmit your question with more detail.a year agoHelpful?
Q: cylnder body length is what? I have 28"
a year ago1 Answer
- A: Hi Neighbor! The cylinder body length is 35 in.a year agoHelpful?
Q: I need a replacement cylinder for huskee 28 ton splitter. Is this what I want
a year ago1 Answer
- A: Hi Neighbor! The ToolTuff Direct 4.5 in. 24 in. Stroke Log Splitter Cylinder is likely a suitable replacement for the cylinder on a Husky TS 28-ton log splitter, but it depends on the specific model and mounting style. The manufacturer claims it's a direct replacement for many OEM cylinders with a double-ear mounting clevis, including some Husky models. Please see the product dimensions listed under the "specifications" tab and compare them to your log splitter.a year agoHelpful?
1 - 10 of 24 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 24 Questions
Newest questions
Q: Will it fit countyline 22 ton splitter
5 days ago1 Answer
- AI-assisted, Human-approvedA: Hi Cheryl: Yes, this cylinder is compatible with CountyLine log splitters. It is designed to replace original cylinders on many brands, including CountyLine, that use a double-ear mounting clevis. This cylinder to be used with any 2 stage gear pump (Common are 11gpm, 13gpm and 16gpm).4 days agoHelpful?
Q: What are the dimensions on the hook up point, trying to replace on a homemade splitter
22 days ago1 Answer
- A: Hi Dennis! This cylinder features a 9/16-inch mounting hole on the rod for wedge mounting and a double mounting clevis design that accepts 1-1/8-inch pins. The clevis mounting holes at the front of the beam are also 1-1/8 inches.21 days agoHelpful?
Q: Will fit county line 25 ton splitter
a month ago1 Answer
- AI-assisted, Human-approvedA: Hi Pops: Yes, this cylinder is compatible with CountyLine log splitters. It is designed to replace original cylinders on many brands, including CountyLine, that use a double-ear mounting clevis. This cylinder to be used with any 2 stage gear pump (Common are 11gpm, 13gpm and 16gpm)a month agoHelpful?
Q: Does it have a warranty
a month ago1 Answer
- A: Hi ColdCase79: This item has a 6 month warranty. For warranty asssistance, please visit https://www.tooltuffdirect.com/a month agoHelpful?
Q: What is the retracted center-to-center mounting length of the 31-112 cylinder? I am trying to determine if this will be a suitable replacement for my 27 ton Dirty Hand Tools log splitter. They are out of business and I can't call them.
3 months ago1 Answer
- A: Hi Jim S! The retracted center-to-center mounting length (pin-to-pin, center on center) for the ToolTuff Direct 4.5 in. × 24 in. Stroke Log Splitter Cylinder is 32 & 1/2 inches.3 months agoHelpful?
Q: Fit 28 ton dirty hands
10 months ago1 Answer
- A: Hi Neighbor! Please contact the manufacturer.10 months agoHelpful?
Q: Will this fit a 22 ton huskie woodsplitter ,,?
a year ago1 Answer
- A: Hi Neighbor- Brand Compatibility CountyLine, Oregon, Husky Please check the owners manual for fita year agoHelpful?
Q: Does it fot dirty hands tools log splitter
a year ago1 Answer
- A: Hi Neighbor! Thank you for reaching out. Unfortunately, we are unsure of what you are asking. Please resubmit your question with more detail.a year agoHelpful?
Q: cylnder body length is what? I have 28"
a year ago1 Answer
- A: Hi Neighbor! The cylinder body length is 35 in.a year agoHelpful?
Q: I need a replacement cylinder for huskee 28 ton splitter. Is this what I want
a year ago1 Answer
- A: Hi Neighbor! The ToolTuff Direct 4.5 in. 24 in. Stroke Log Splitter Cylinder is likely a suitable replacement for the cylinder on a Husky TS 28-ton log splitter, but it depends on the specific model and mounting style. The manufacturer claims it's a direct replacement for many OEM cylinders with a double-ear mounting clevis, including some Husky models. Please see the product dimensions listed under the "specifications" tab and compare them to your log splitter.a year agoHelpful?
1 - 10 of 24 Questions
Similar Items
-
Top Rated
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Items You May Like
-
Top Rated
-
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
-
-
Reviews
- purchase
- installation
- price
- in-store
- large
- customer service
- refund
1 to 4 of 96 Reviews .
1 – 4 of 96 Reviews
Most Recent
Reviews 2
3 out of 5 stars.
Splitter Cylinder
a day ago
The cylinder itself is great. What wasn't great is the fact that it apparently was dropped when handling somewhere in the shipping process. (It's very heavy) The port at the top end was bent a a result and I could not screw on the line fitting. Had to take precautions to keep metal cuttings out of the port and saw about 1/4 inch off of the female threaded port flange. I needed the cylinder and did not want to have to bring the cylinder all the way back to the store and wait another week for the replacement to arrive.
SweepstakesYes
Yes, I recommend this product.
Review 1
5 out of 5 stars.
Hydraulic cylinder

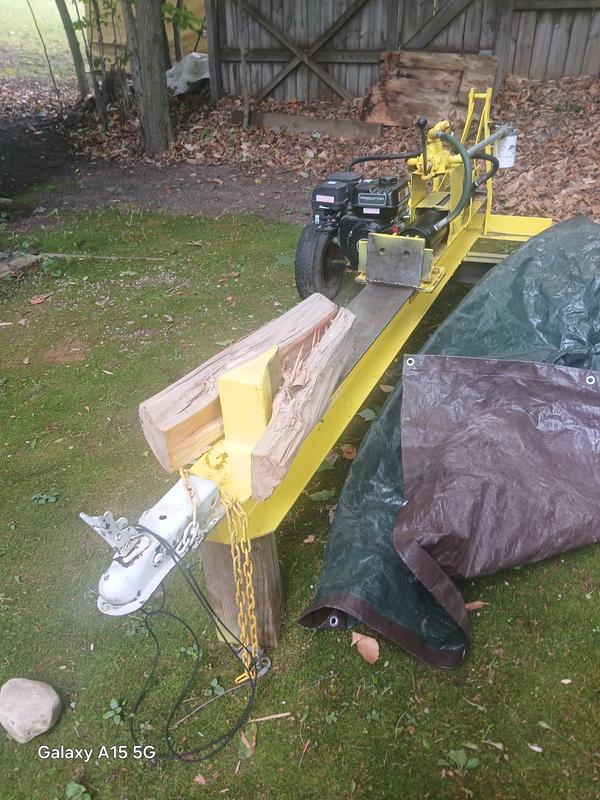

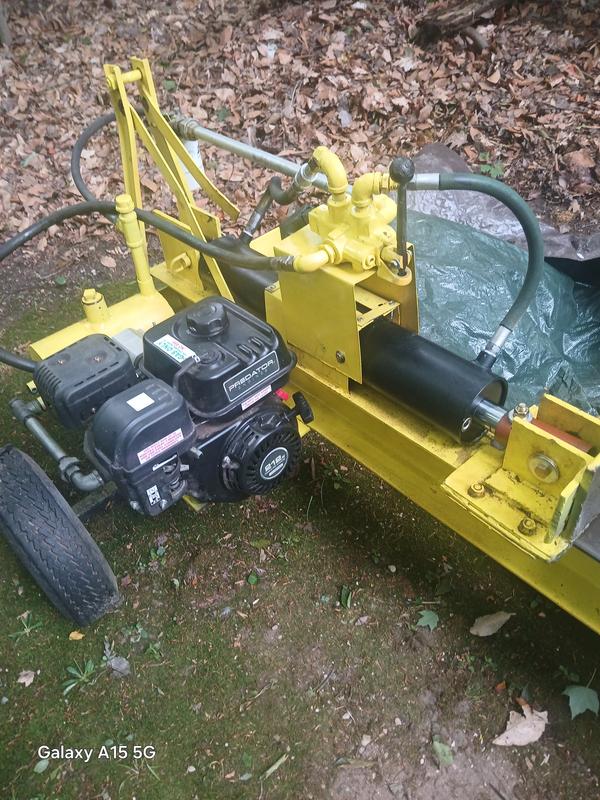

29 days ago
Came quickly.
Matched old cylinder perfectly.
Works as it should.
SweepstakesYes
Yes, I recommend this product.
Hudson, NC
Review 1
1 out of 5 stars.
The Worst On Line Order Experience Ever !
2 months ago
I ordered and 2 hours afterwards I realized it wouldn't work- Because it was past 59 mins. they had to still ship it to my local store - Even though it hadn't been shipped yet. They made me wait 10 days until they even released a refund. What a run-around ! It was illogical and unethetical to hold my money when I never even ever had the product. Why would you spend labor hours and shipping expense when it was completely unecessary., and just issue an immediate refund?.....Very lame
No, I do not recommend this product.
Anonymous
Review 1
5 out of 5 stars.
Works on Dirty Hand Tools 27 ton
3 months ago
Great transaction. Works on a 27 ton Dirty Hand Tools with some modification
Yes, I recommend this product.
